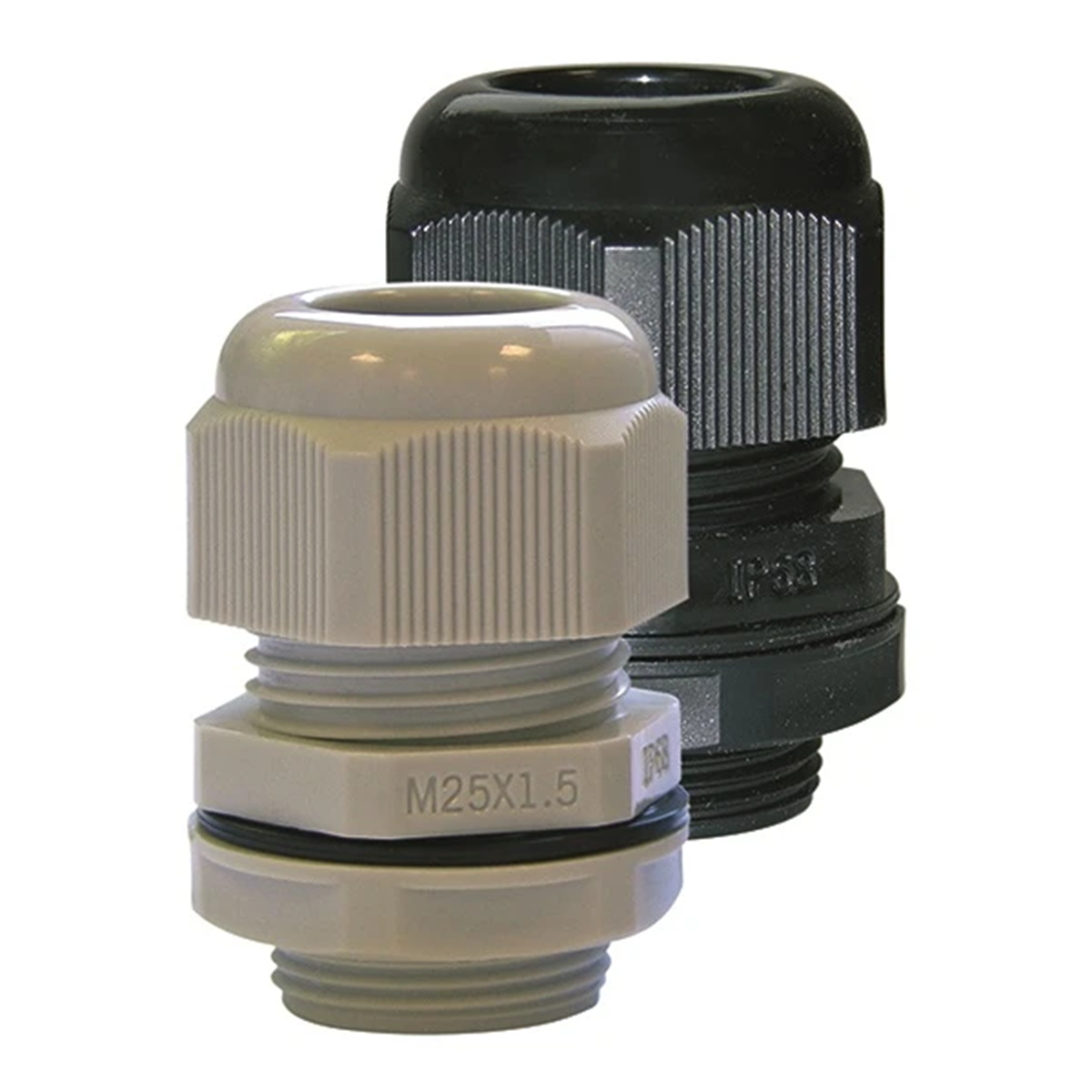

Industrial cable gland IP68 M25 black 10 pcs 250124

local index:
RRR050HAUP
Catalog No:
250124
EAN code:
4011923556983
Manufacturer: HAUPA
Blade length [mm]: 29
Thread: M25
Color: Black
Price:
7,29 €
gross / pkg.
(including VAT 23%)
0,73 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

SlimTop - Polyamide 6.6 industrial metric gland with gasket and locknut, unassembled.

Technical data

  • Blade length [mm]
    29
  • Color
    Black
  • Level of security
    IP68
  • Pieces in the package
    10
  • Inner diameter [mm]
    25
  • Thread
    M25
  • Material
    Polyamide
  • Flange width [mm]
    17.3
  • Hole diameter [mm]
    14.1

Other technical data

  • Thread type
    Metric
  • Thread length
    8 mm
  • Suitable for cable diameter
    11 ... 17 mm
  • Material quality
    Polyamide (PA)
  • Glass-fibre reinforced
    No
  • Shock resistant
    No
  • Bend radius protection/trumpet flare
    No
  • Model
    Straight
  • Flat cable coupling
    No
  • Type of sealing
    Sealing ring
  • Operating temperature
    -40 ... 85 °C
  • Pitch thread
    1.5 mm
  • Wrench width
    29 mm
  • Material
    Plastic
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP68
  • Colour
    Black
  • With locknut
    Yes
  • Multi seal area
    No
  • With strain relief
    No
  • Separable screw gland
    No
