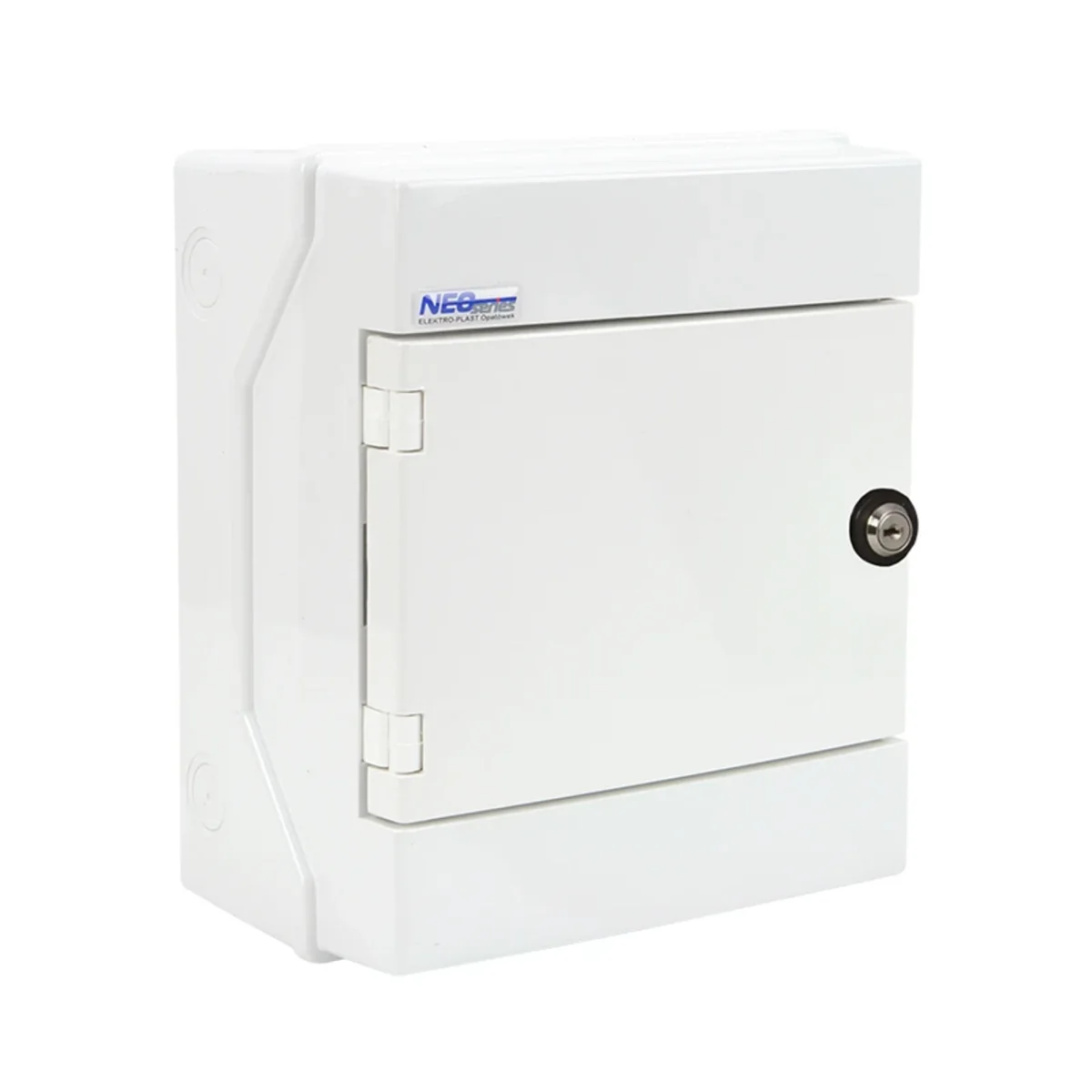

Hermetic switchgear RH-6/ZB 36.5
local index:
RIH026ELOP
Catalog No:
36.5
EAN code:
5905548284217
Manufacturer:
ELEKTRO-PLAST OPATÓWEK
Depth [mm]: 138
Installation: On the TH-35 rail
Width [mm]: 225
Price:
24,18 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
RH "NEO" series hermetic switchboards are intended for domestic and industrial use with the possibility of installing overcurrent breakers and electrical devices. They come in a surface-mounted version and are widely used in installations performed outside buildings.
Technical characteristics:
- switchboards equipped with a transparent, tinted side-opening door (left or right), adapted to be fitted with a key lock,
- available in white,
- made of high quality >ABS< resistant to high temperature up to 960oC (hot rod test - applies to the terminal block),
- work stability from -25oC to +60oC,
- impact resistance (IK 07 degree),
- possibility to install devices with a depth of 68 and 75mm,
- 12-module and larger models equipped with knockouts in the walls for cable glands and installation pipes,
- possibility of sealing the door,
- switchboards equipped with:
- terminal strips for N and PE tracks,
- TH 35 mounting bracket,
- a self-adhesive label for descriptions.

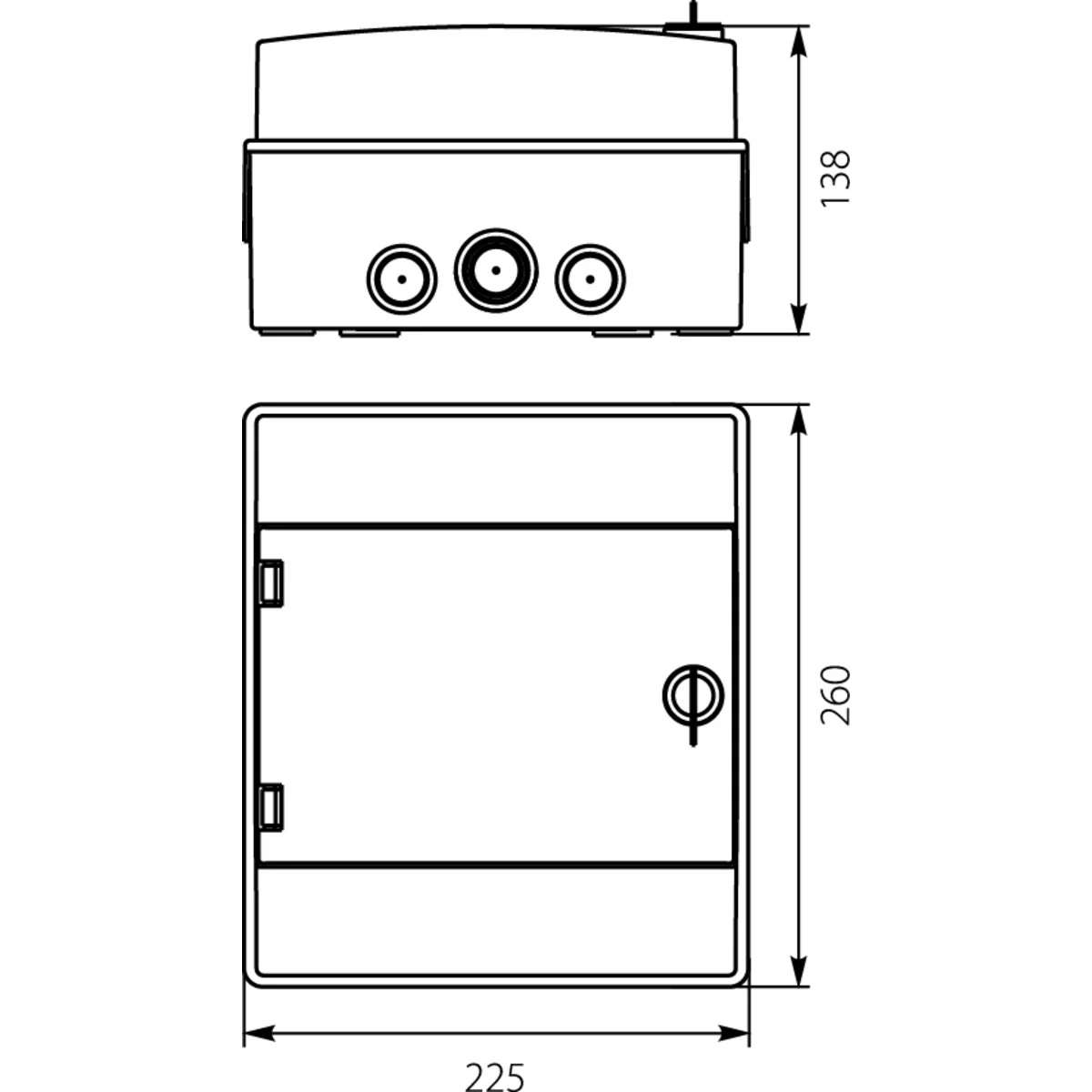

Technical data
-
Depth [mm]138
-
Width [mm]225
-
PKWIU27.12.31.0
-
InstallationOn the TH-35 rail
-
Height [mm]260
Other technical data
-
Mounting methodSurface mounted
-
Width in number of modular spacings6
-
Cover modelWith notch
-
Housing materialPlastic
-
Width225 mm
-
Built-in depth42 mm
-
DIN-railYes
-
Extension possibleNo
-
ColourWhite
-
Degree of protection (IP)IP65
-
Type of closureCylinder
-
Number of rows1
-
Type of coveringDoor
-
Transparent cover/doorNo
-
Height260 mm
-
Depth138 mm
-
Inner depth138 mm
-
With mounting plateNo
-
EMC-versionYes
-
RAL-number9003
-
With lockYes
Bulk packaging
| A kind of package | Sztuka | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 1,104 | - |
| Width (m) | - | 0,270 |
| Length (m) | - | 0,230 |
| Depth (m) | - | 0,150 |
