Hermetic switchgear RH-6/Z (with lock) 36.4

local index:
RIH006ELOP
Catalog No:
36.4
EAN code:
5905548284019

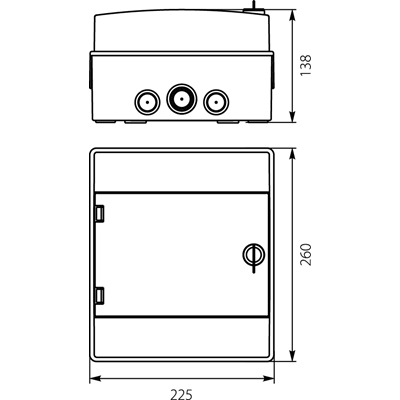

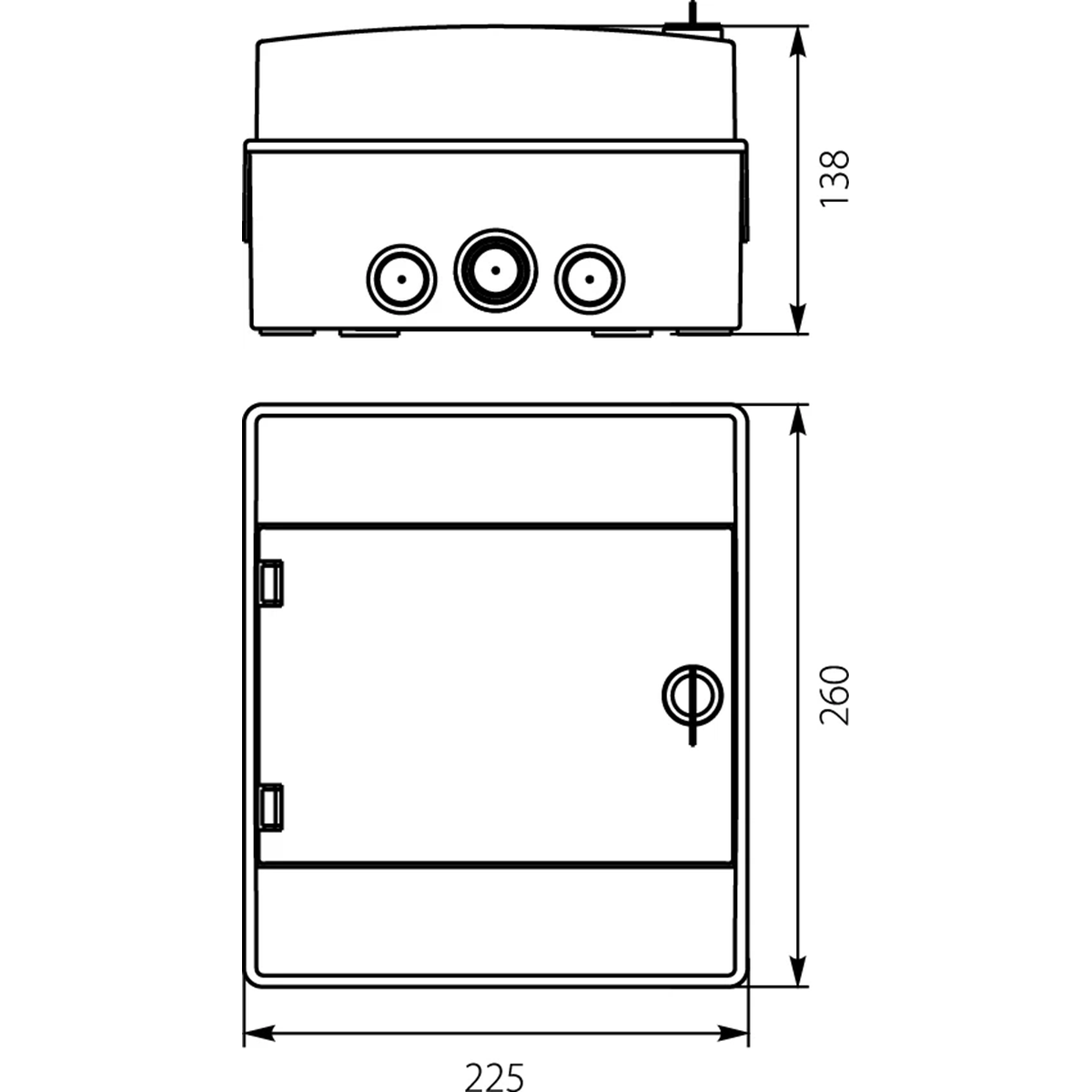

Depth [mm]: 138
Width [mm]: 225
Height [mm]: 260
Price:
24,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

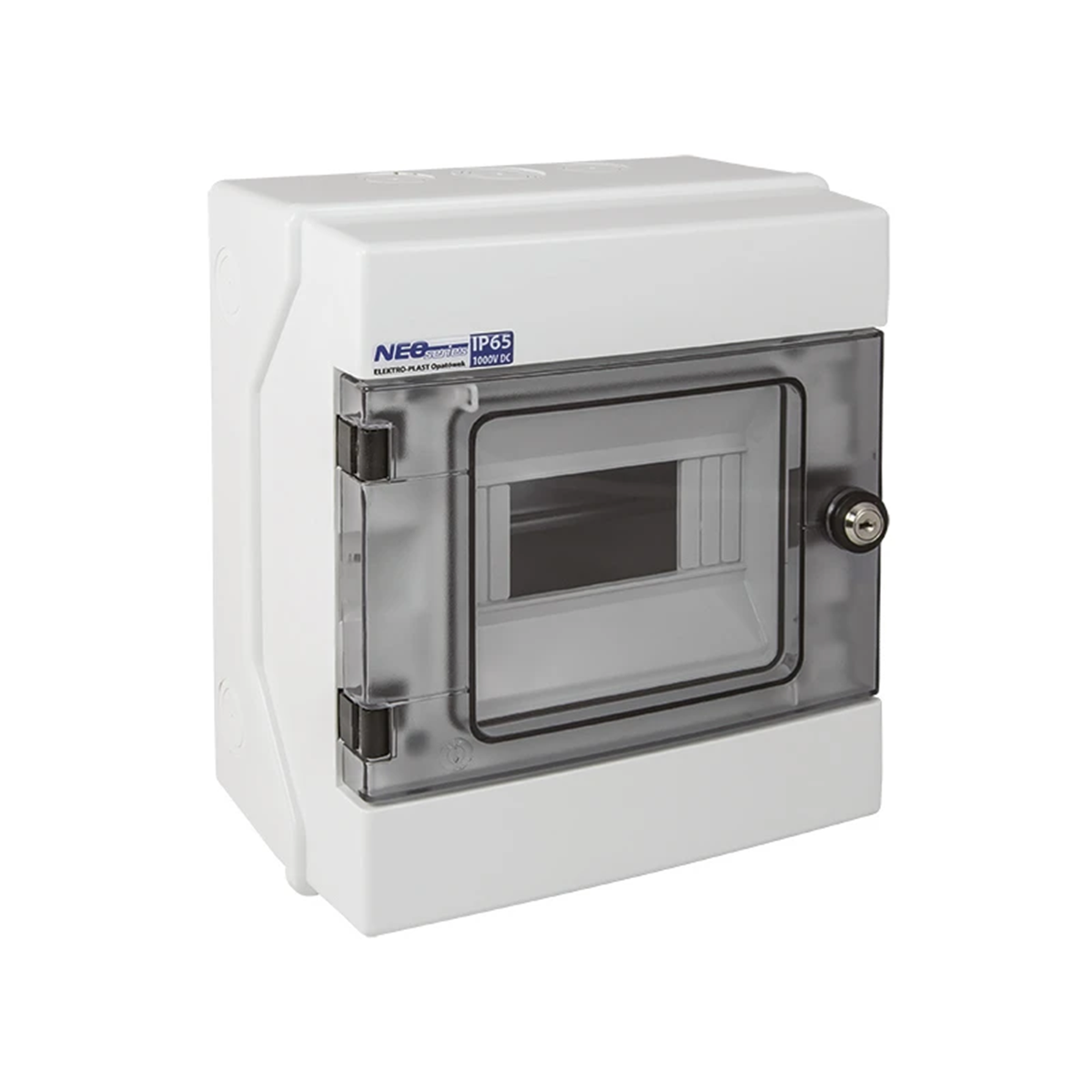

RH "NEO" series hermetic switchboards are intended for domestic and industrial use with the possibility of installing overcurrent breakers and electrical devices. They are available in a surface-mounted version and are widely used in installations performed outside buildings.



Technical characteristics:


  • switchboards equipped with a transparent, tinted door that opens to the side (left or right), adapted to be fitted with a key lock,

  • < br/> available in white,


  • made of high quality >ABS< resistant to high temperature up to 960oC (hot rod test - applies to the terminal block),


  • operation stability from -25oC to +60oC,


  • impact resistance (IK 07 grade),


  • possibility of installing cameras with a depth of 68 and 75mm,

  • < li>
    12-module and larger models equipped with knockouts in the walls for cable grommets and installation pipes,

  • possibility of sealing the door,


  • switchboards equipped with:


    • with terminal strips for N and PE tracks,

    • < li>
      TH 35 mounting bracket,

    • self-adhesive label for description.


    < /li>

Technical data

  • Depth [mm]
    138
  • Height [mm]
    260
  • PKWIU
    27.12.31.0
  • Width [mm]
    225
  • Lock
    Yes

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    6
  • Cover model
    With notch
  • Housing material
    Plastic
  • Width
    225 mm
  • Built-in depth
    42 mm
  • DIN-rail
    yes
  • Extension possible
    no
  • Colour
    White
  • Degree of protection (IP)
    IP65
  • Type of closure
    Cylinder
  • Number of rows
    1
  • Type of covering
    Door
  • Transparent cover/door
    yes
  • Height
    260 mm
  • Depth
    138 mm
  • Inner depth
    138 mm
  • With mounting plate
    no
  • EMC-version
    yes
  • RAL-number
    9003
  • With lock
    yes

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Width (m) 0,270
Length (m) 0,230
Depth (m) 0,150
