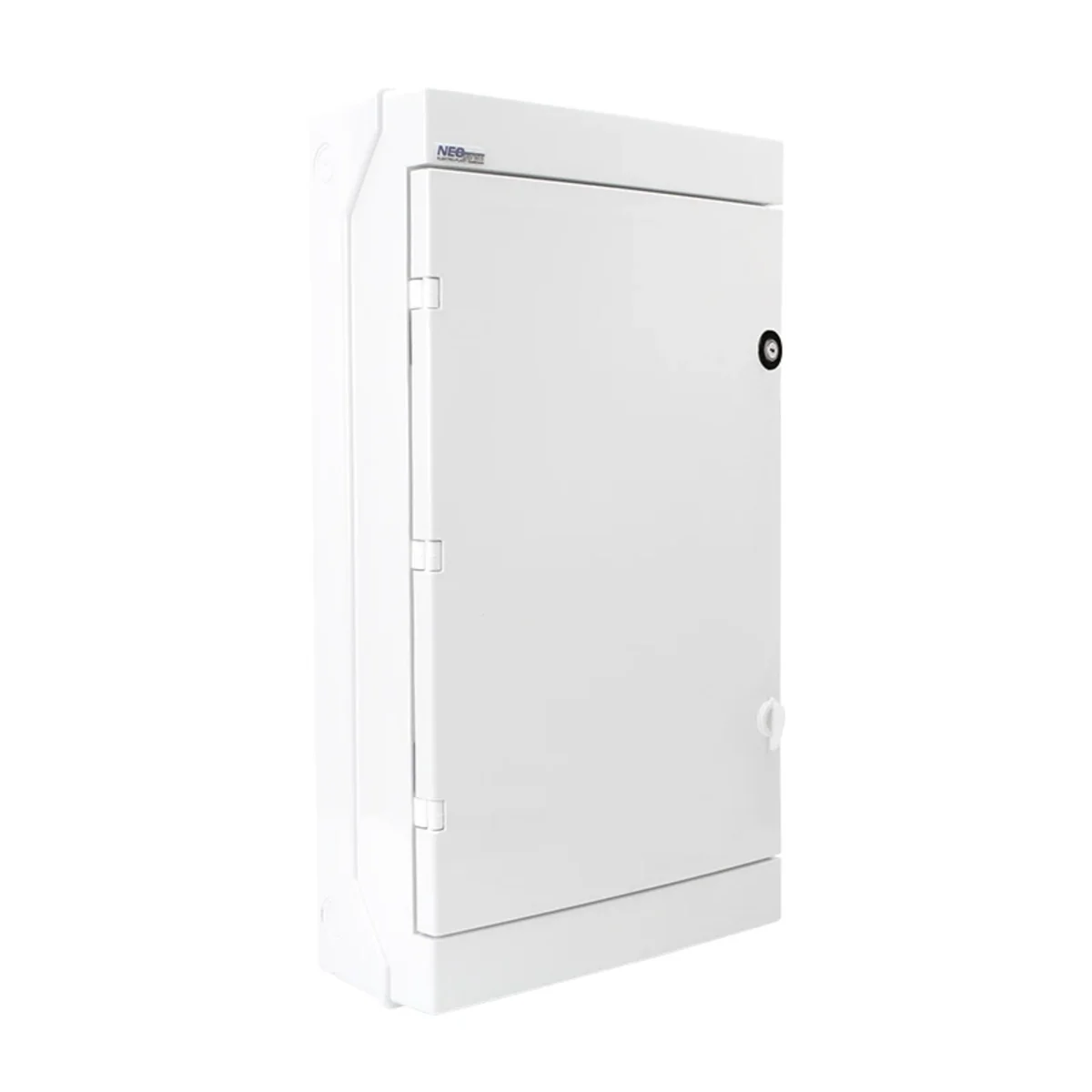

Hermetic switchgear RH-36/3ZB 36.145

local index:
RIH054ELOP
Catalog No:
36.145
EAN code:
5905548288475
Depth [mm]: 138
Width [mm]: 330
Type: 3x12
Price:
61,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description


RH "NEO" series hermetic switchboards are intended for domestic and industrial use with the possibility of installing overcurrent breakers and electrical devices. They are available in a surface-mounted version and are widely used in installations performed outside buildings.



Technical characteristics:


  • switchboards equipped with a transparent, tinted door that opens to the side (left or right), adapted to be fitted with a key lock,

  • < br/> available in white,


  • made of high quality >ABS< resistant to high temperature up to 960oC (hot rod test - applies to the terminal block),


  • operation stability from -25oC to +60oC,


  • impact resistance (IK 07 grade),


  • possibility of installing cameras with a depth of 68 and 75mm,

  • < li>
    12-module and larger models equipped with knockouts in the walls for cable grommets and installation pipes,

  • possibility of sealing the door,


  • switchboards equipped with:


    • with terminal strips for N and PE tracks,

    • < li>
      TH 35 mounting bracket,

    • self-adhesive label for description.


    < /li>

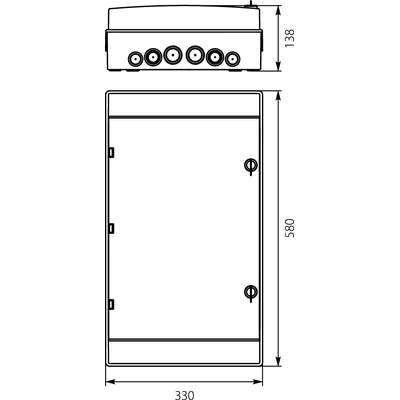

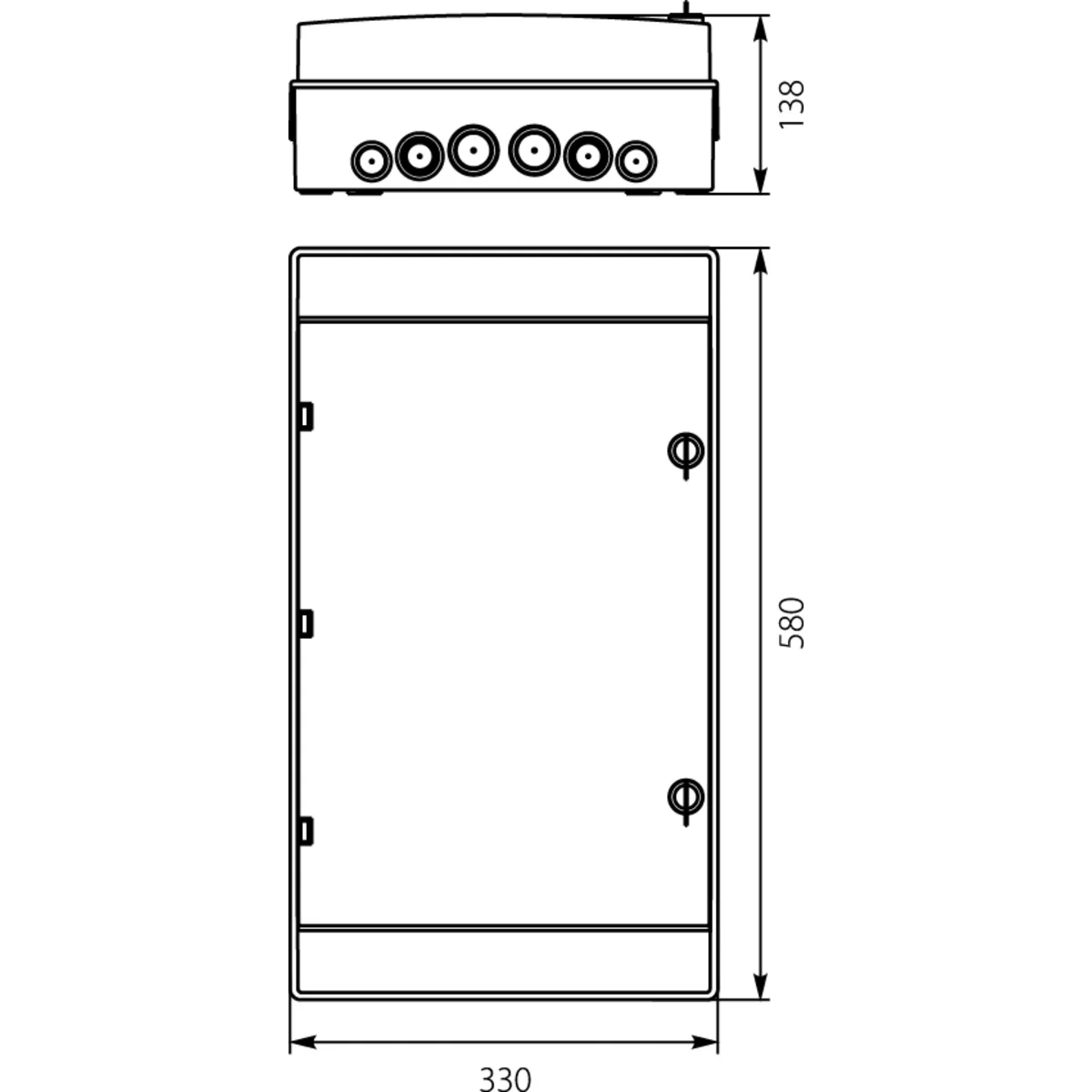

Technical data

  • Depth [mm]
    138
  • Type
    3x12
  • Height [mm]
    580
  • PKWIU
    27.12.31.0
  • Width [mm]
    330
  • Version
    White door lock
  • Vice
    N+PE

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    12
  • Cover model
    With notch
  • Housing material
    Plastic
  • Width
    330 mm
  • Built-in depth
    42 mm
  • DIN-rail
    Yes
  • Extension possible
    No
  • Colour
    White
  • Degree of protection (IP)
    IP65
  • Type of closure
    Cylinder
  • Number of rows
    3
  • Type of covering
    Door
  • Transparent cover/door
    No
  • Height
    580 mm
  • Depth
    138 mm
  • Inner depth
    90 mm
  • With mounting plate
    No
  • EMC-version
    Yes
  • RAL-number
    9003
  • With lock
    Yes

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs. 1 pcs.
Weight (kg) 3,468 -
Width (m) - 0,592
Length (m) - 0,338
Depth (m) - 0,142
