el12 Switchboards and enclosures Insulating enclosures Hermetic insulating enclosures

Hermetic switchgear RH-36/2Z (with lock) 36.137

local index:
RIH028ELOP
Catalog No:
36.137
EAN code:
5905548288420

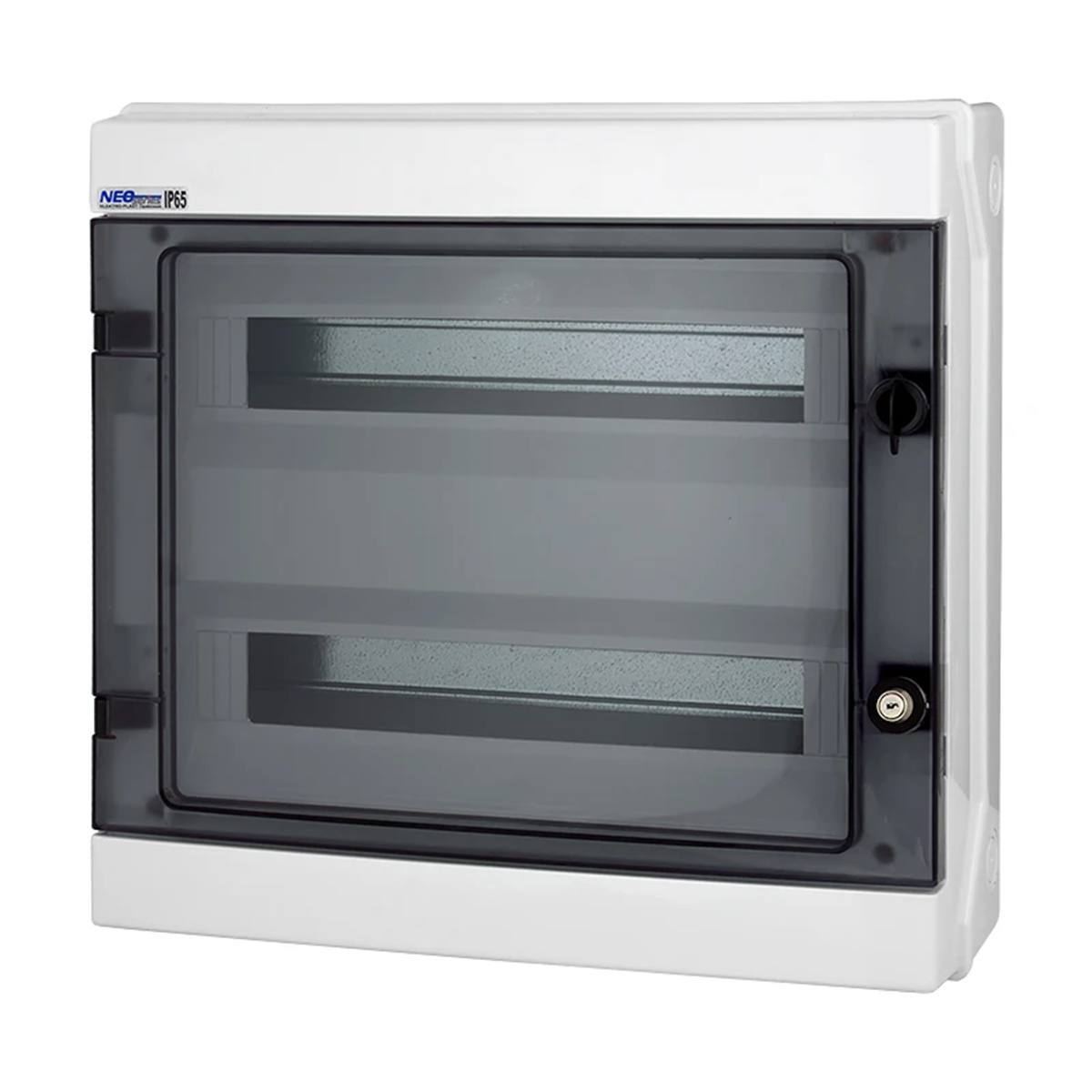

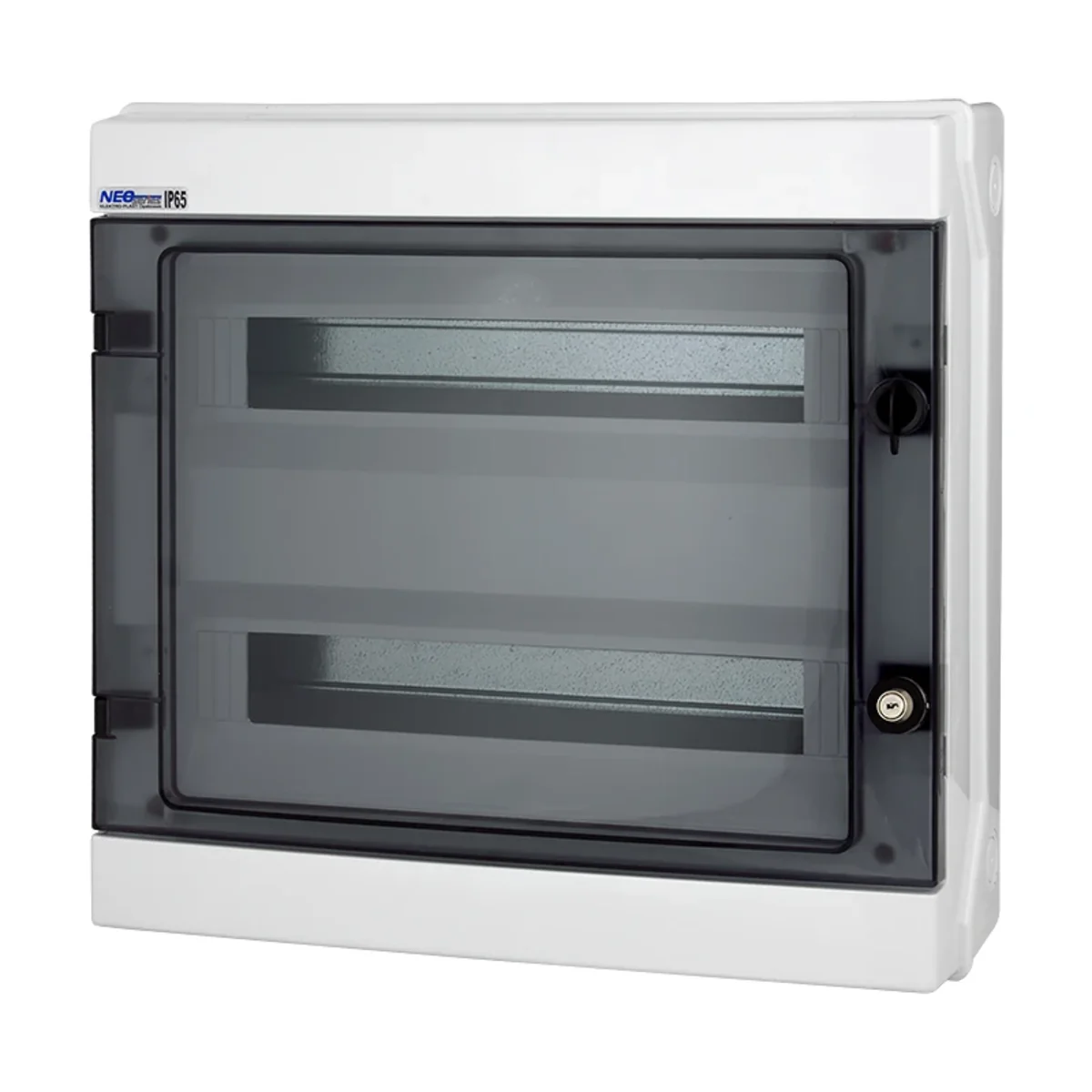

Hermetic switchgear RH-36/2Z (with lock)
Hermetic switchgear RH-36/2Z (with lock)

Click on the photo to enlarge

Manufacturer: ELEKTRO-PLAST OPATÓWEK
Depth [mm]: 138
Installation: On the TH-35 rail
Width [mm]: 435
See full description
Price:
58,51 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging

Product description

RH "NEO" series hermetic switchboards are intended for domestic and industrial use with the possibility of installing overcurrent breakers and electrical devices. They come in a surface-mounted version and are widely used in installations performed outside buildings.
Technical characteristics:
< ul>
  • switchboards equipped with a transparent, tinted side opening door (to the left or right), adapted to be fitted with a key lock,
  • available in white,
  • made of high quality >ABS< resistant to high temperature up to 960oC (hot rod test - applies to the terminal strip),
  • work stability from -25oC to +60oC,
  • impact resistance (IK 07 degree),
  • possibility to install apparatuses with a depth of 68 and 75mm,
  • 12-module and larger models equipped with knockouts in the walls for cable glands and installation pipes,
  • possibility of sealing the door,
  • switchboards equipped with:
    • terminal strips for N and PE tracks,
    • TH 35 mounting bracket,
    • a self-adhesive label for descriptions.

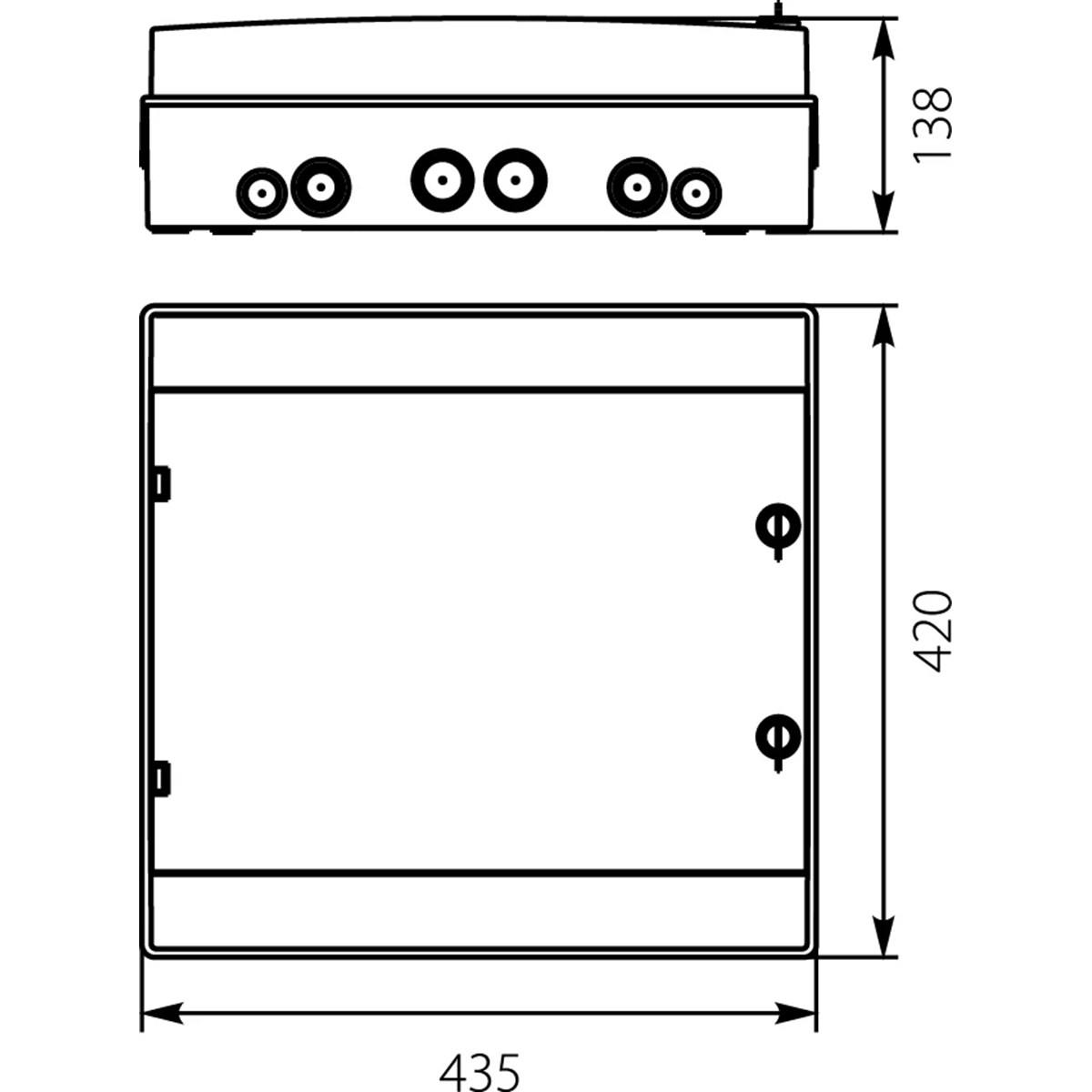

    • Technical data

    • Depth [mm]
      138
    • Width [mm]
      435
    • PKWIU
      27.12.31.0
    • Installation
      On the TH-35 rail
    • Height [mm]
      420

    Other technical data

    • Mounting method
      Surface mounted
    • Width in number of modular spacings
      18
    • Cover model
      With notch
    • Housing material
      Plastic
    • Width
      435 mm
    • Built-in depth
      42 mm
    • DIN-rail
      Yes
    • Extension possible
      No
    • Colour
      White
    • Degree of protection (IP)
      IP65
    • Type of closure
      Cylinder
    • Number of rows
      2
    • Type of covering
      Door
    • Transparent cover/door
      Yes
    • Height
      420 mm
    • Depth
      138 mm
    • Inner depth
      138 mm
    • With mounting plate
      No
    • EMC-version
      Yes
    • RAL-number
      9003
    • With lock
      Yes

    Manufacturer details

    Bulk packaging

    A kind of package Sztuka
    Quantity 1 pcs. 1 pcs.
    Weight (kg) 3,220 -
    Width (m) - 0,142
    Length (m) - 0,444
    Depth (m) - 0,426
