Hermetic switchgear RH-36/2 36.136

local index:
RIH023ELOP
Catalog No:
36.136
EAN code:
5905548288413
Depth [mm]: 138
Number of modules: 36
Number of rows: 2
Price:
53,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 2 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

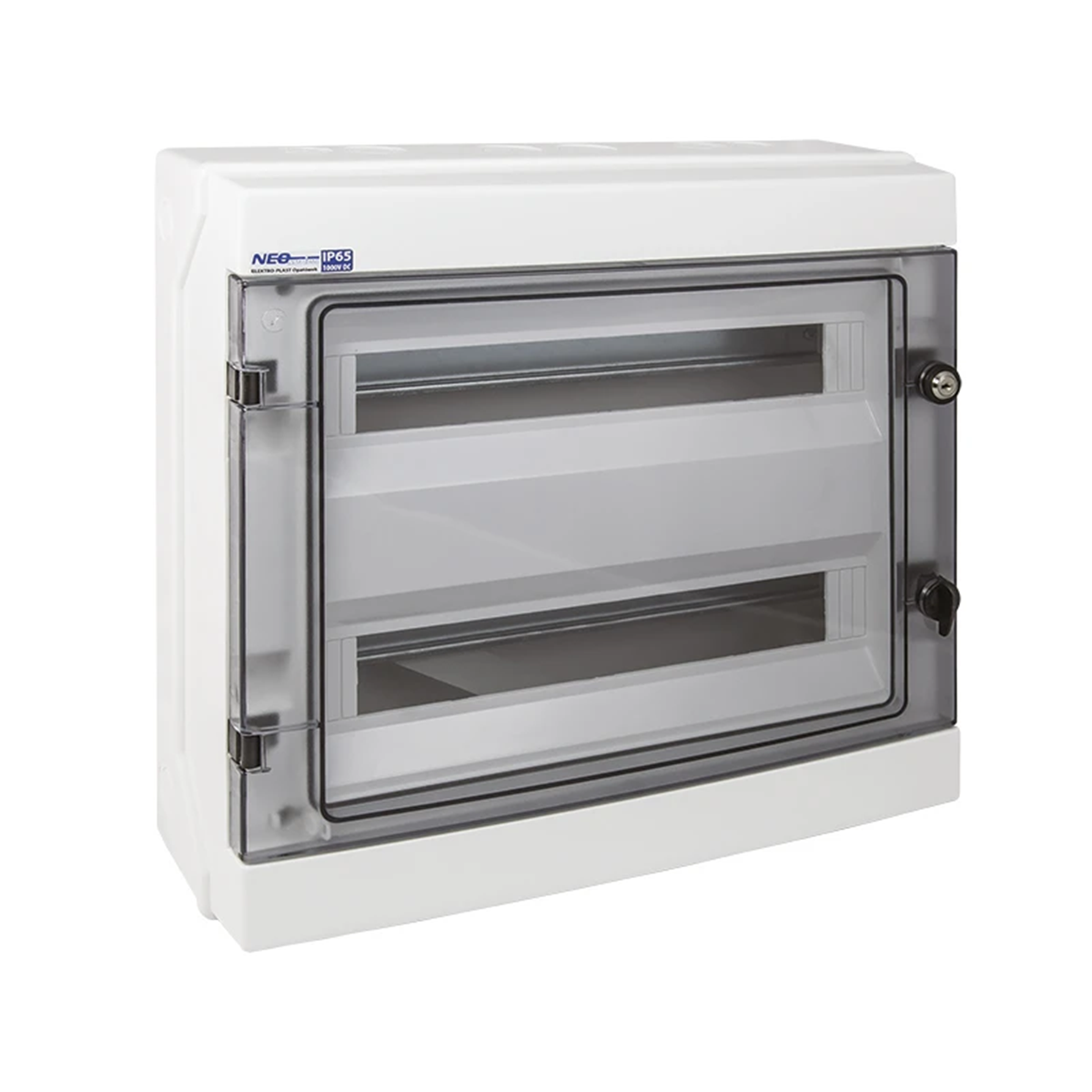

RH "NEO" are intended for domestic and industrial use with the possibility of installing overcurrent breakers and electrical devices. They come in a surface-mounted version and are widely used in installations performed outside buildings.

Technical characteristics:
    < li style="padding: 3px 0px; margin: 0px; line-height: 1.5em;">switchgears equipped with transparent tinted doors opening to the side (left or right), adapted for mounting a key lock,
  • available in white,
  • made of high quality >ABS< plastic, resistant to high temperature up to 960oC (hot rod test - applies to the terminal strip),
  • work stability from -25oC to +60oC,
  • impact resistance (grade IK 07),
  • possibility to install cameras with a depth of 68 and 75mm,
  • models 12 modules and larger equipped with knockouts in the walls for cable entries and conduits,
  • door sealable,
  • equipped switchboards:
    • w terminal strips for N and PE tracks,
    • TH 35 mounting bracket,
    • adhesive label for description.

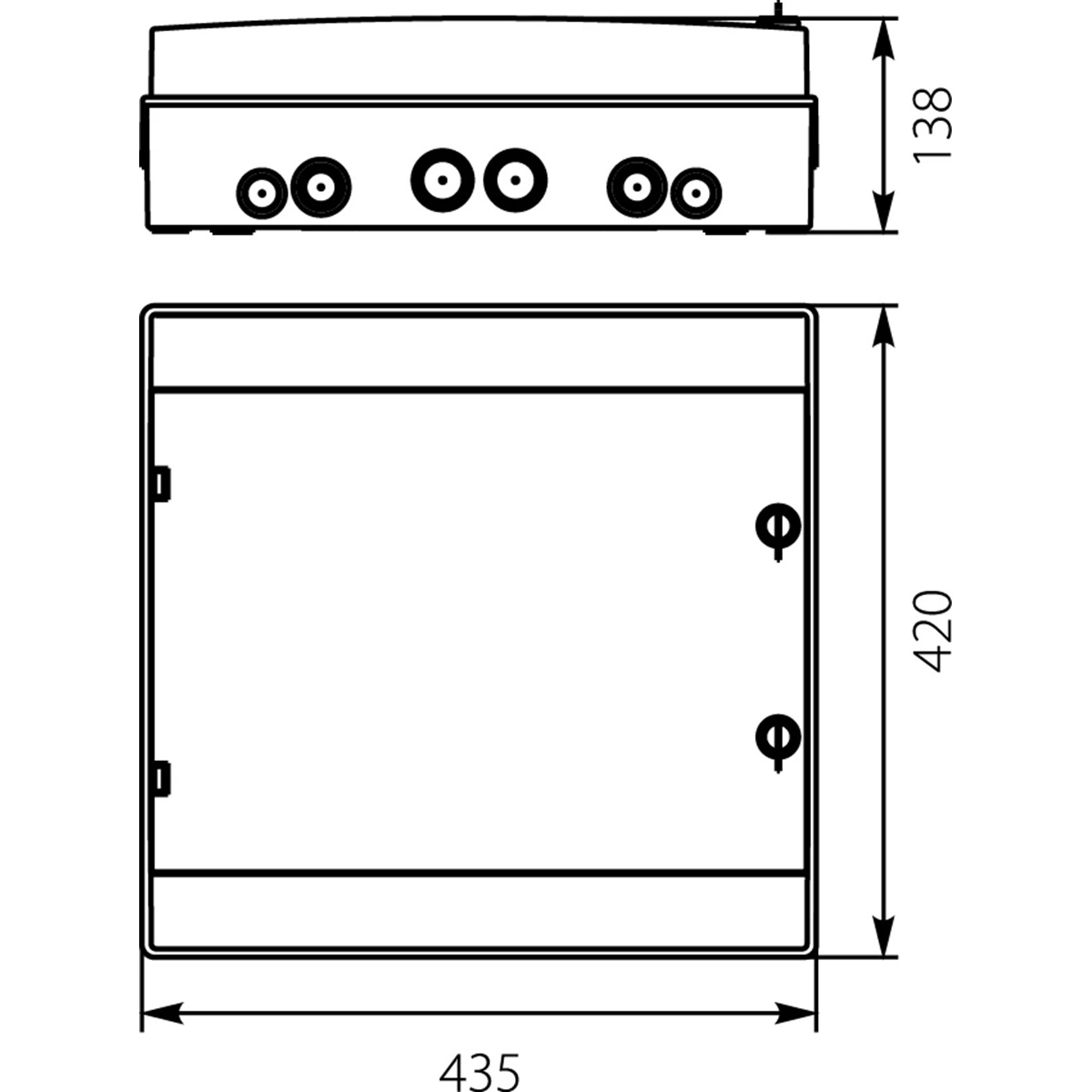

Technical data

  • Depth [mm]
    138
  • Number of rows
    2
  • Width [mm]
    435
  • PKWIU
    27.12.31.0
  • Number of modules
    36
  • Level of security
    IP65
  • Height [mm]
    420

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    18
  • Cover model
    With notch
  • Housing material
    Plastic
  • Width
    435 mm
  • Built-in depth
    42 mm
  • DIN-rail
    Yes
  • Extension possible
    No
  • Colour
    White
  • Degree of protection (IP)
    IP65
  • Type of closure
    Cylinder
  • Number of rows
    2
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    420 mm
  • Depth
    138 mm
  • Inner depth
    138 mm
  • With mounting plate
    No
  • EMC-version
    Yes
  • RAL-number
    9003
  • With lock
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs. 1 pcs.
Weight (kg) 3,186 -
Width (m) - 0,142
Length (m) - 0,444
Depth (m) - 0,426
