Hermetic switchgear RH-24/Z (with lock) 36.25
local index:
RIH029ELOP
Catalog No:
36.25
EAN code:
5905548284095
Manufacturer:
ELEKTRO-PLAST OPATÓWEK

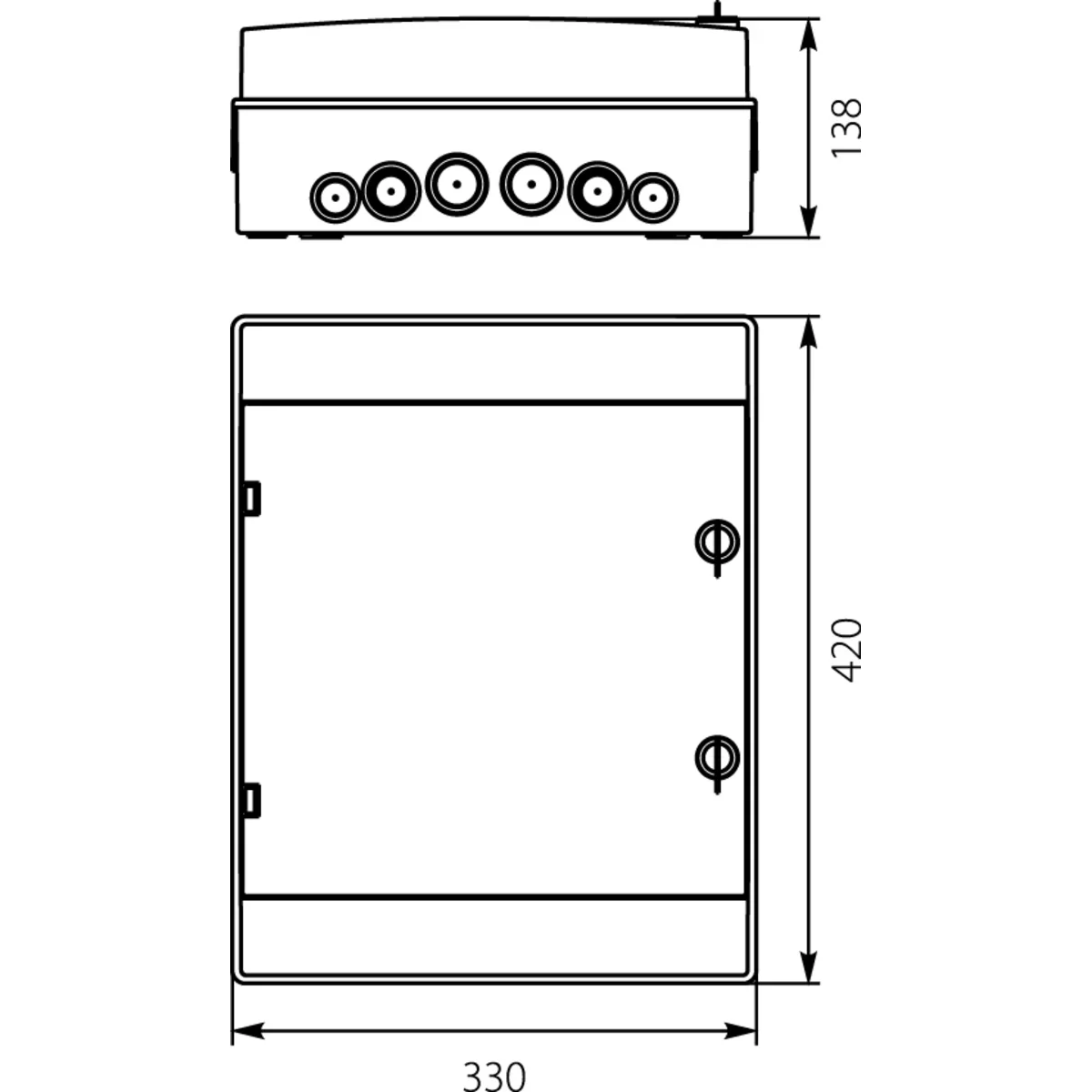

Length [mm]: 420
Depth [mm]: 138
Installation: On the TH-35 rail
Price:
42,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

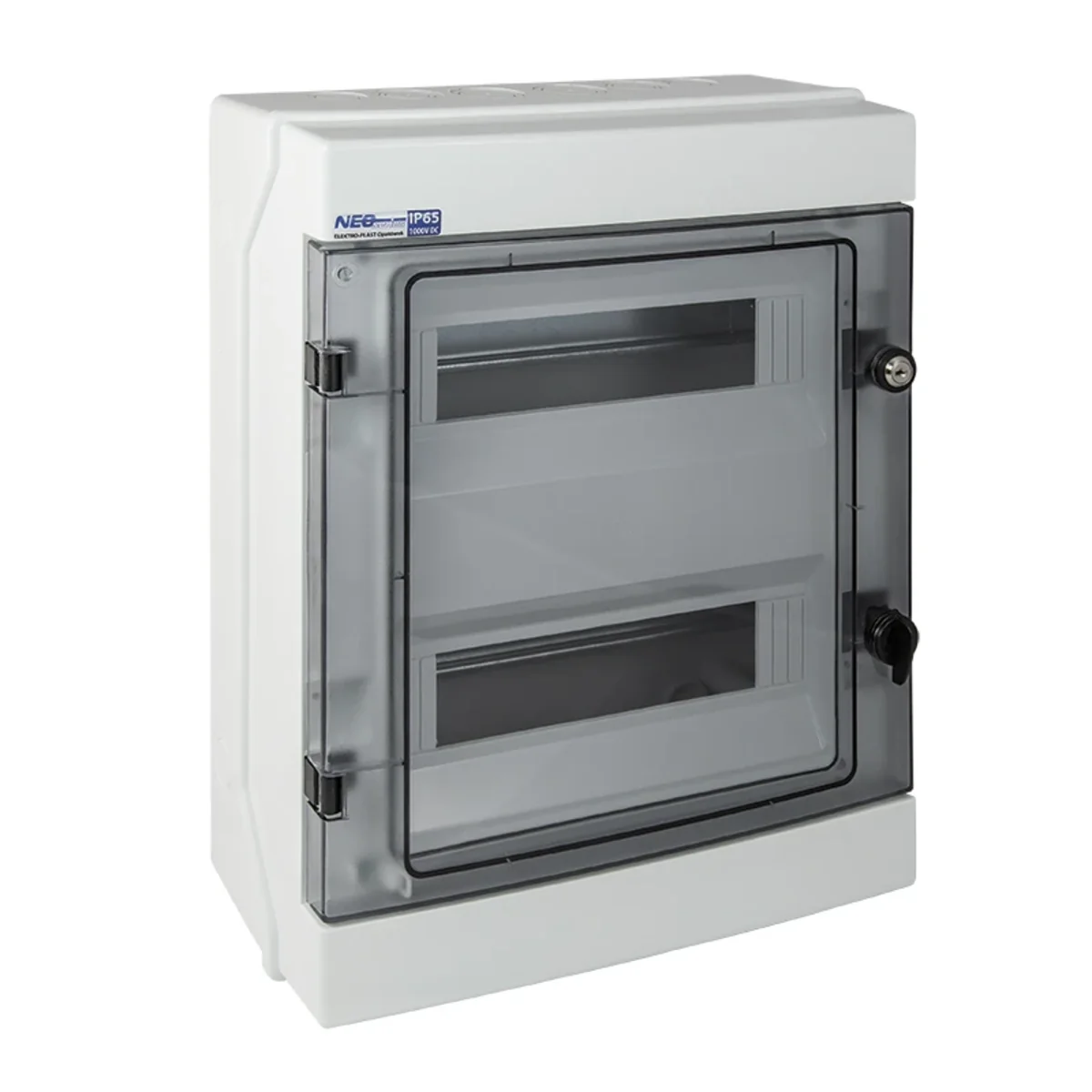

RH "NEO" series hermetic switchboards are intended for domestic and industrial use with the possibility of installing overcurrent breakers and electrical devices. They come in surface-mounted and flush-mounted versions and are widely used in installations performed outside buildings.
Technical data
-
Length [mm]420
-
InstallationOn the TH-35 rail
-
Working temperature [°C]-25 - 60
-
ClampsYes
-
PKWIU27.12.31.0
-
Depth [mm]138
-
Width [mm]330
-
Type2x12
-
Degree of mechanical protectionIK07
Other technical data
-
Mounting methodSurface mounted
-
Width in number of modular spacings12
-
Cover modelWith notch
-
Housing materialPlastic
-
Width330 mm
-
Built-in depth42 mm
-
DIN-railYes
-
Extension possibleNo
-
ColourWhite
-
Degree of protection (IP)IP65
-
Type of closureCylinder
-
Number of rows2
-
Type of coveringDoor
-
Transparent cover/doorYes
-
Height420 mm
-
Depth138 mm
-
Inner depth138 mm
-
With mounting plateNo
-
EMC-versionYes
-
RAL-number9003
-
With lockYes
Bulk packaging
| A kind of package | Sztuka | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 2,504 | 0,268 |
| Width (m) | - | 0,145 |
| Length (m) | - | 0,340 |
| Depth (m) | - | 0,430 |
