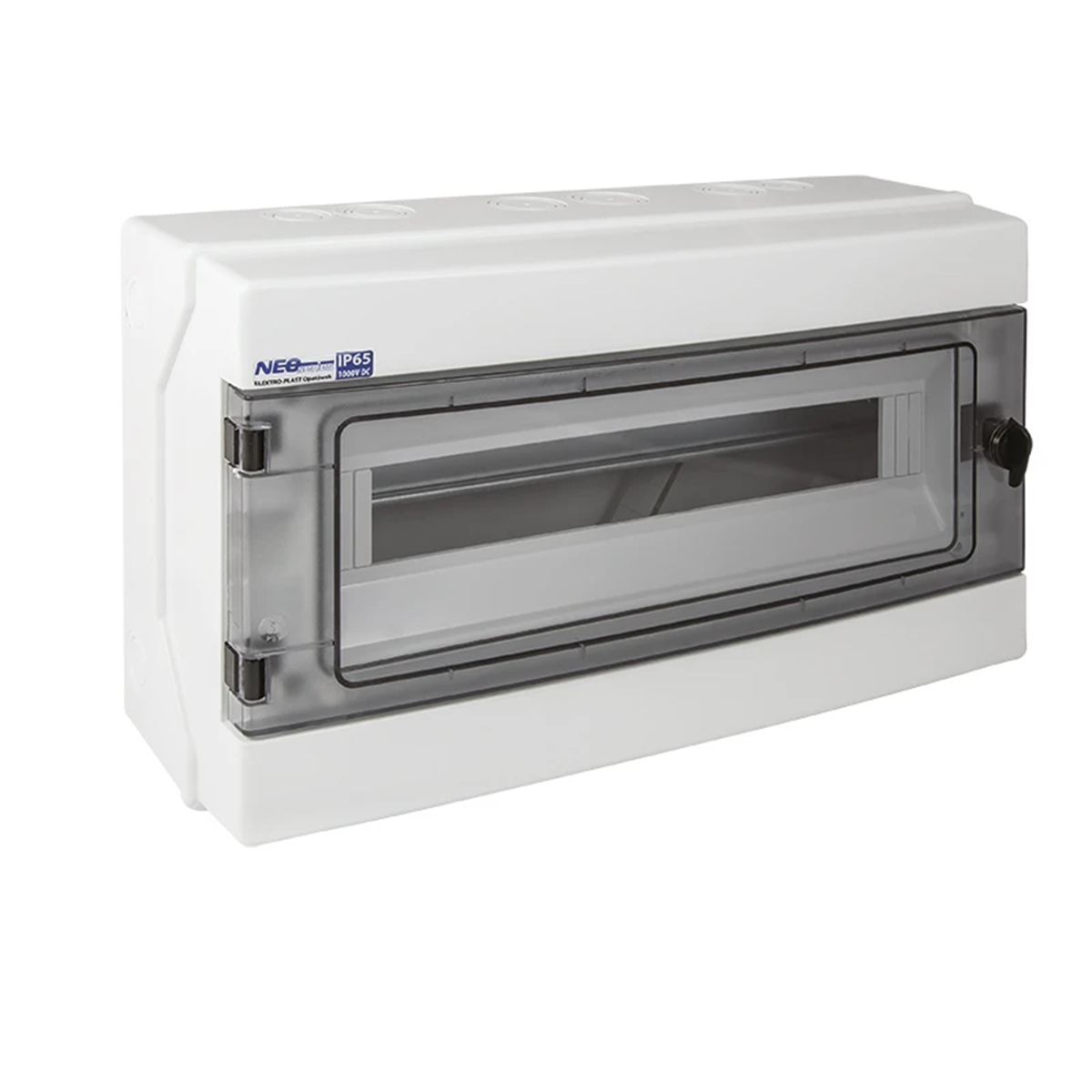

Hermetic switchgear RH-18/Z (with lock) 36.19

Name: Hermetic switchgear RH-18/Z (with lock)
Brand: ELEKTRO-PLAST OPATÓWEK
SKU: RIH027ELOP
Price: 162.99 PLN

Index local:

RIH027ELOP

Numéro de catalogue:

36.19

Code EAN:

5905548284071

Cliquer sur la photo pour l'agrandir

Producteur: ELEKTRO-PLAST OPATÓWEK

Depth [mm]: 138

Color: White

Installation: On the TH-35 rail

Voir la description complète

Prix:

162,99 zł

gross / pcs.

(y compris la TVA 23%)

Livraison en 3h

jusqu'à 2 semaines (jours ouvrables)

Ramassage en 1h

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac

Description du produit

RH "NEO" series hermetic switchboards are intended for domestic and industrial use with the possibility of installing overcurrent breakers and electrical devices. They come in a surface-mounted version and are widely used in installations performed outside buildings.

Technical characteristics:

switchgears equipped with a transparent, tinted door that opens to the side (left or right), adapted to be fitted with a key lock,
available in white,
made of high quality >ABS< resistant to high temperature up to 960oC (hot rod test - applies to the terminal strip),
work stability from -25oC to +60oC,
impact resistance (IK 07 degree),
possibility to install apparatuses with a depth of 68 and 75mm,
12-module and larger models equipped with knockouts in the walls for cable glands and installation pipes,
possibility of sealing the door,
switchboards equipped with:
- terminal strips for N and PE tracks,
- TH 35 mounting bracket,
- a self-adhesive label for descriptions.

Données techniques

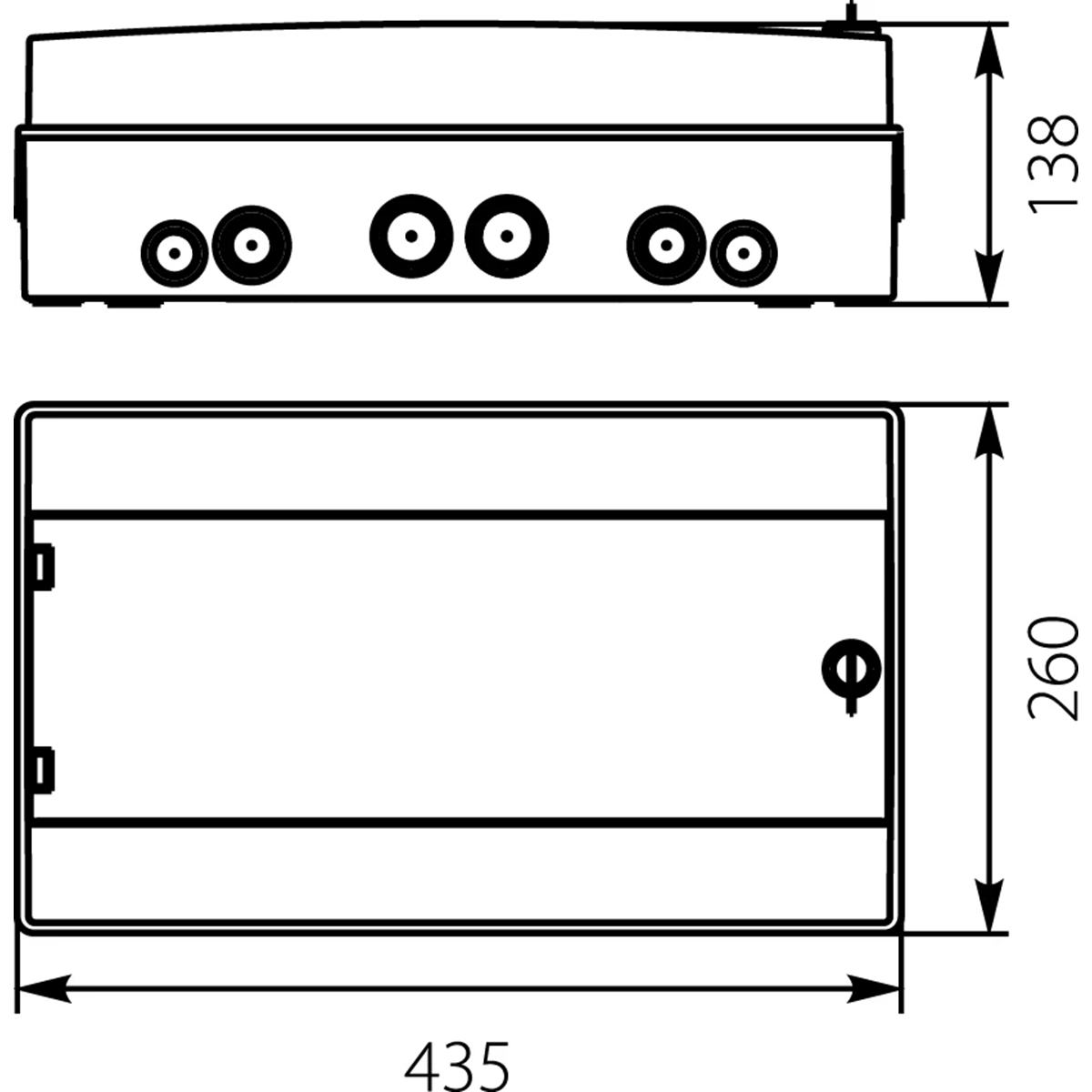

Depth [mm]

138
Installation

On the TH-35 rail
Height [mm]

260
PKWIU

27.12.31.0

Color

White
Width [mm]

435
Accurate color

White

Autres données techniques

Mounting method

Surface mounted
Width in number of modular spacings

18
Cover model

With notch
Housing material

Plastic
Width

435 mm
Built-in depth

42 mm
DIN-rail

Yes
Extension possible

No
Colour

White
Degree of protection (IP)

IP65
Type of closure

Cylinder

Number of rows

1
Type of covering

Door
Transparent cover/door

Yes
Height

260 mm
Depth

138 mm
Inner depth

138 mm
With mounting plate

No
EMC-version

Yes
RAL-number

9003
With lock

Yes

Détails du fabricant

Producteur

Z.P.H. ELEKTRO-PLAST Sp. z o.o.
Adresse

62-860 Opatówek Rogatka 14 Polska
E-mail

biuro@elektro-plast.pl

Emballage en vrac

Une sorte de paquet	Sztuka	Sztuka
Quantité	1 pcs.	1 pcs.
poids (kg)	0,242	0,242
Largeur (m)	0,150	0,150
Longueur (m)	0,448	0,448
Profondeur (m)	0,275	0,275
