Hermetic switchgear RH-12 36.12

local index:
RIH012ELOP
Catalog No:
36.12
EAN code:
5905548284040
Depth [mm]: 138
Number of modules: 12
Level of security: IP65
Price:
26,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 45 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

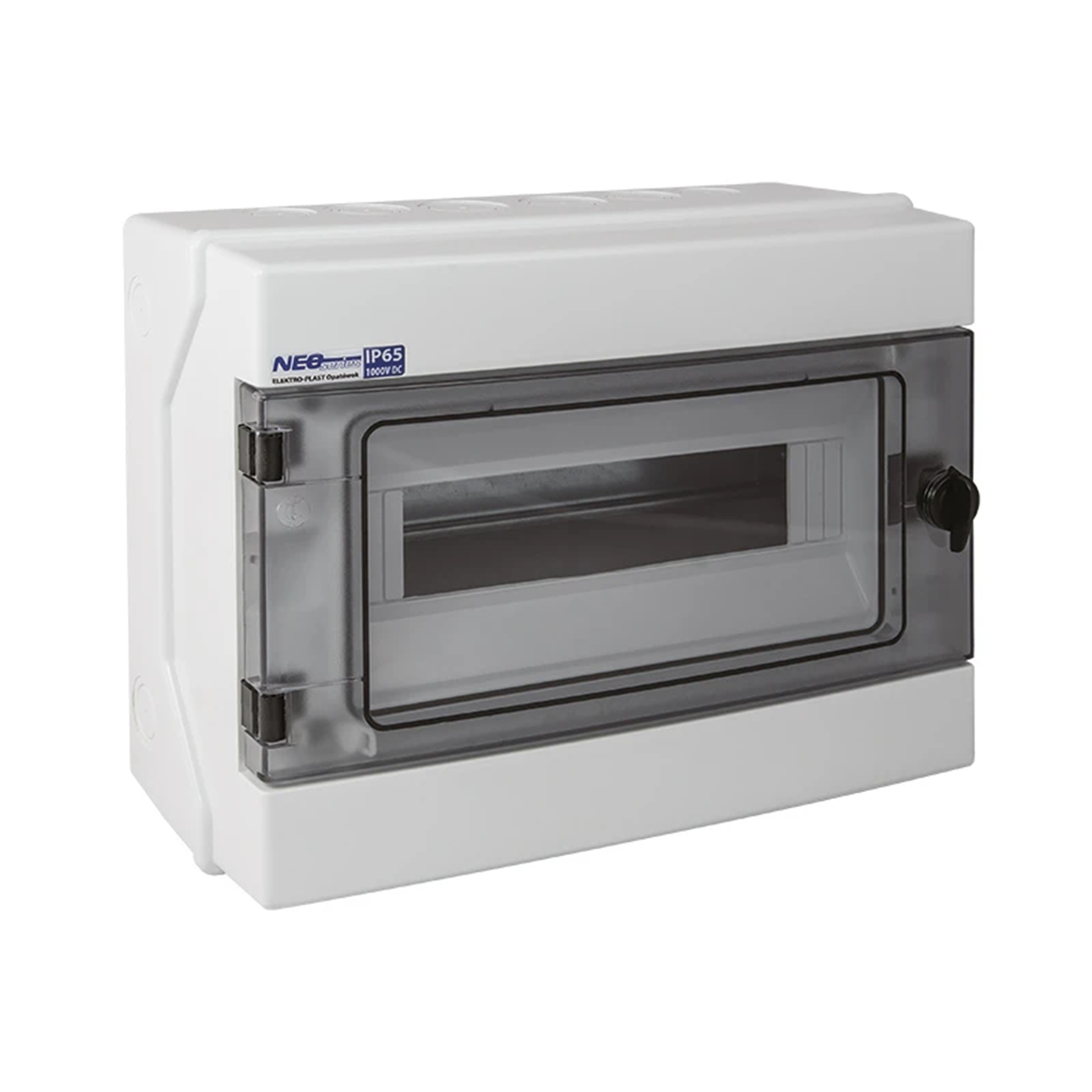

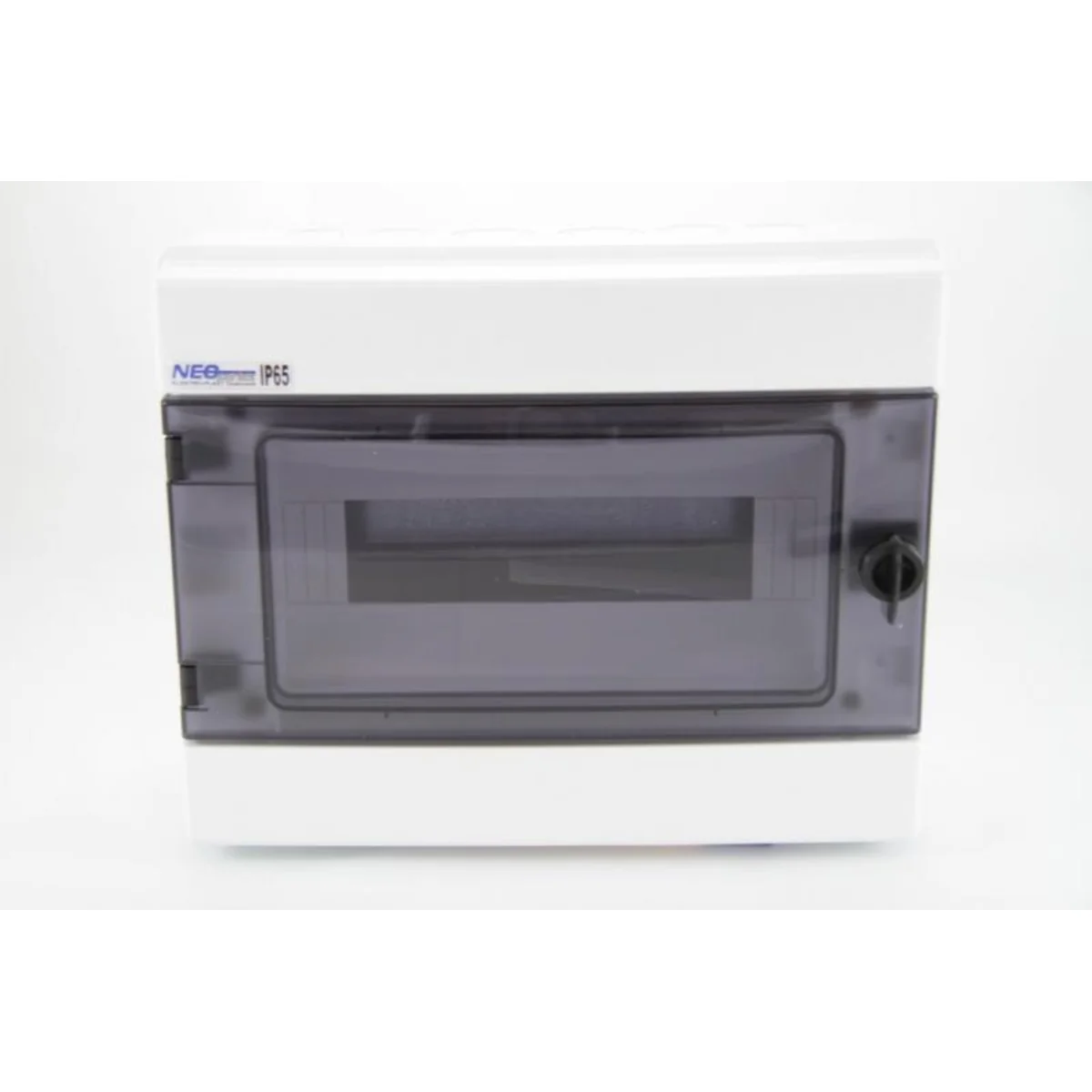

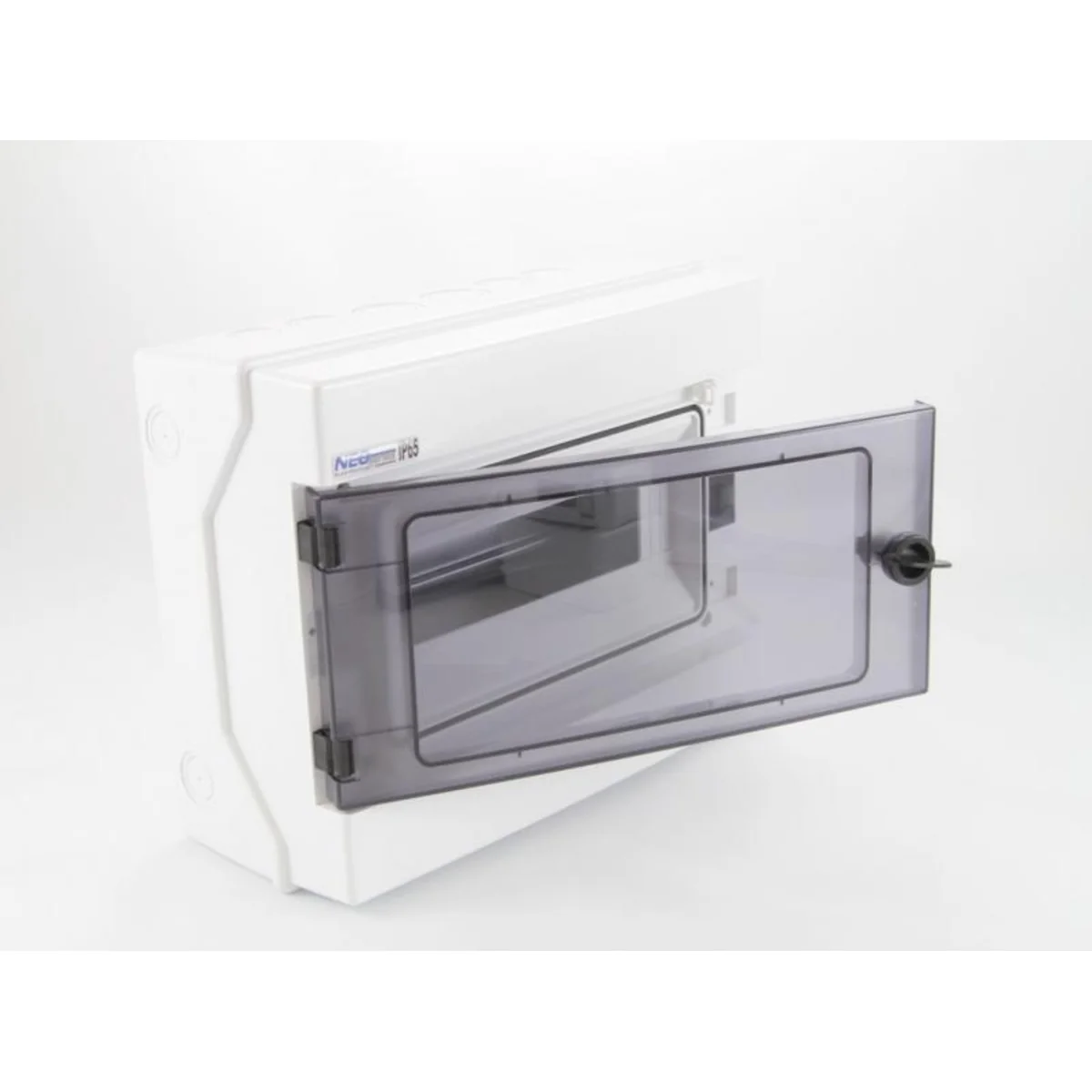

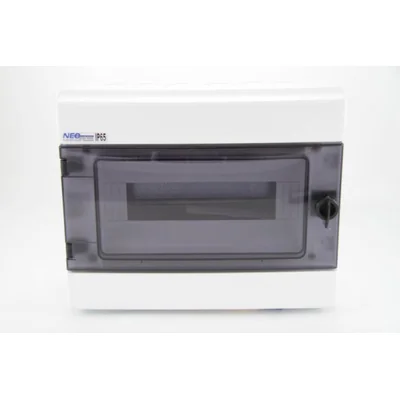

Hermetic switchgear. RH-12. Hermetic switchgears of the RH "NEO" series are intended for domestic and industrial use with the possibility of installing overcurrent circuit breakers and electrical devices. They are available in a surface-mounted version and are widely used in outdoor installations. Technical characteristics: switchboards equipped with a transparent tinted door that opens to the side (left or right), adapted to be fitted with a key lock, available in white, made of high-quality >ABS< material, resistant to high temperatures up to 960oC (hot rod test - applies to the terminal strip), operation stability from -25oC to +60oC, impact resistance (IK 07 grade), possibility of installing devices with a depth of 68 and 75mm, 12-module and larger models equipped with knockouts in the walls for cable glands and installation pipes, possibility of sealing the door, switchboards equipped with: terminal strips for N and PE lines, TH 35 mounting bracket, self-adhesive label for descriptions.

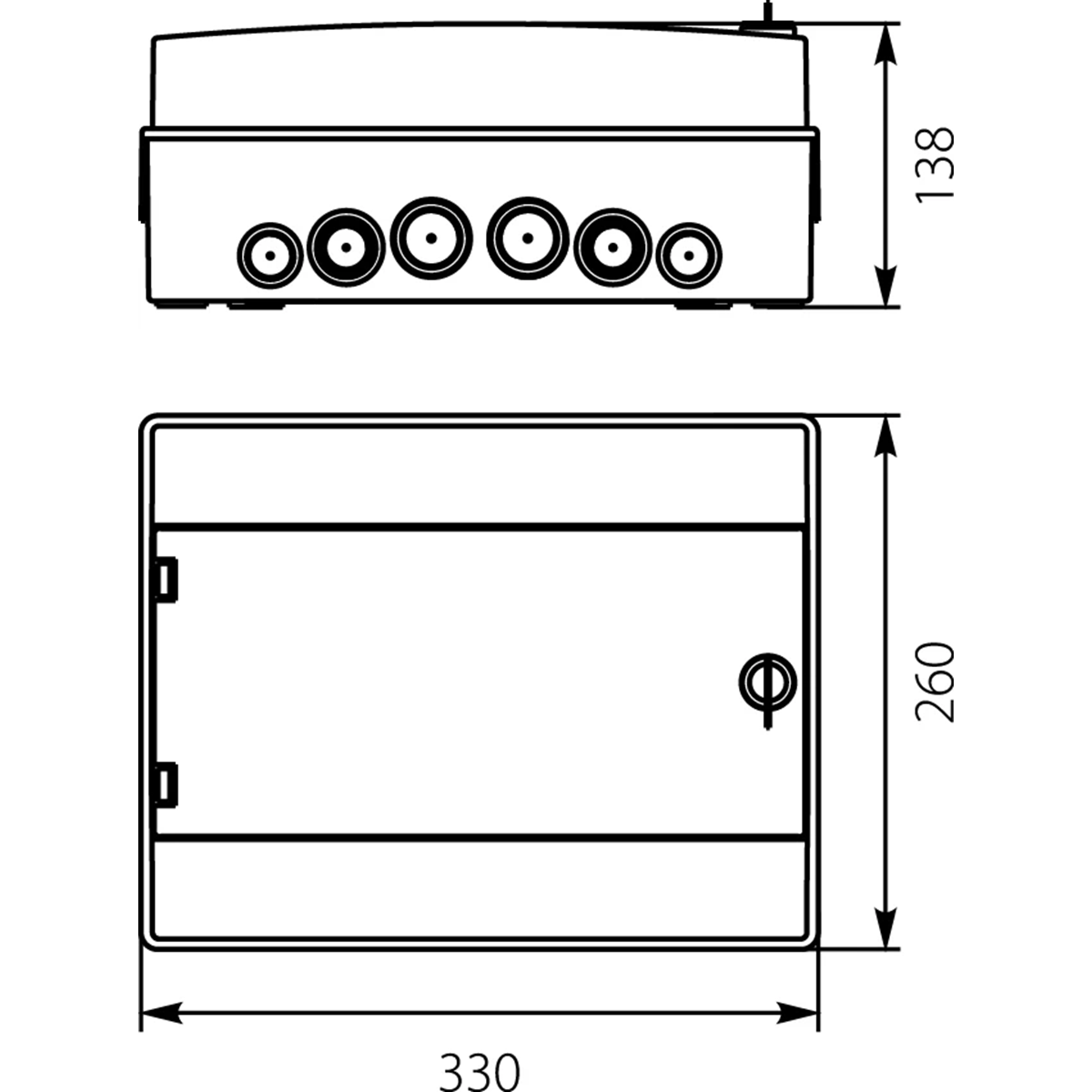

Technical data

  • Depth [mm]
    138
  • Level of security
    IP65
  • Height [mm]
    260
  • Number of modules
    12
  • Width [mm]
    330
  • PKWIU
    27.12.31.0

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    12
  • Cover model
    With notch
  • Housing material
    Plastic
  • Width
    330 mm
  • Built-in depth
    42 mm
  • DIN-rail
    Yes
  • Extension possible
    No
  • Colour
    White
  • Degree of protection (IP)
    IP65
  • Type of closure
    Cylinder
  • Number of rows
    1
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    260 mm
  • Depth
    138 mm
  • Inner depth
    138 mm
  • With mounting plate
    No
  • EMC-version
    Yes
  • RAL-number
    9003
  • With lock
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs. 1 pcs.
Weight (kg) 1,572 0,204
Width (m) - 0,150
Length (m) - 0,342
Depth (m) - 0,275
