Hermetic switchgear KLEJONA RH-48/4 36.48
local index:
RIH035ELOP
Catalog No:
36.48
EAN code:
5905548284163
Price:
104,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

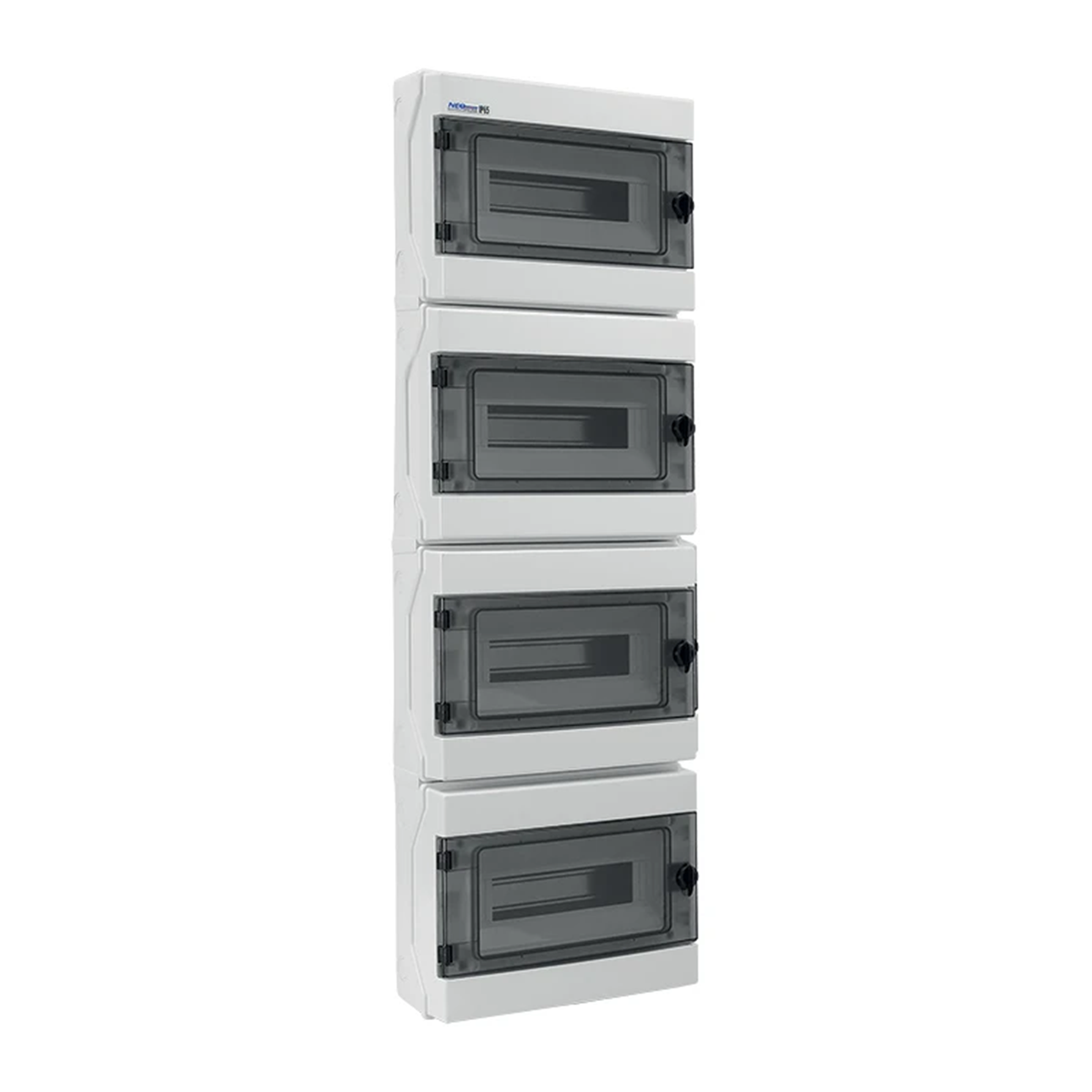

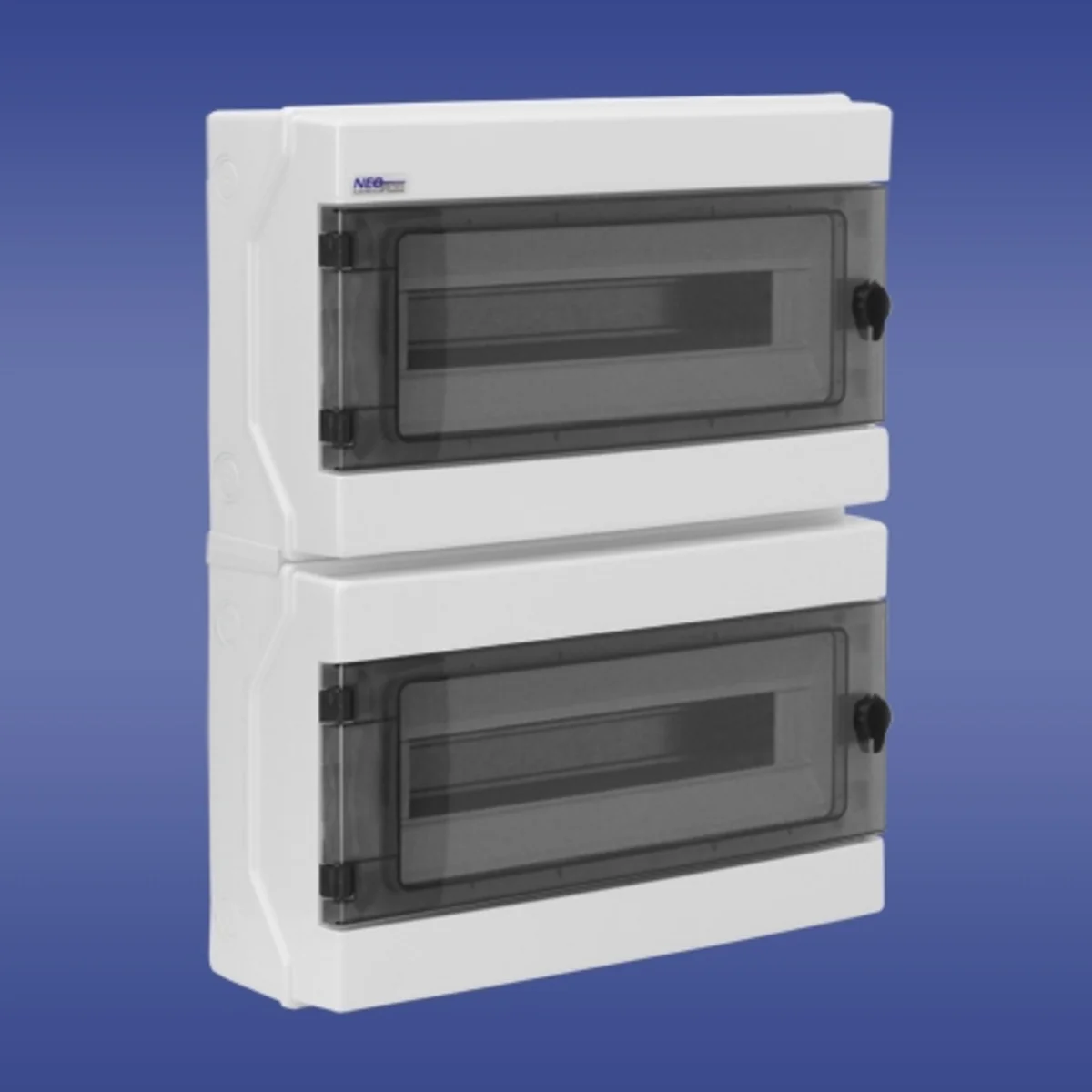

RH "NEO" series hermetic switchboards are intended for domestic and industrial use with the possibility of installing overcurrent breakers and electrical devices. They are available in a surface-mounted version and are widely used in installations performed outside buildings.
Technical characteristics:
switchboards equipped with a transparent, tinted door that opens to the side (left or right), adapted to be fitted with a key lock,- < br/> available in white,
made of high quality >ABS< resistant to high temperature up to 960oC (hot rod test - applies to the terminal block),
operation stability from -25oC to +60oC,
impact resistance (IK 07 grade),
possibility of installing cameras with a depth of 68 and 75mm,
possibility of sealing the door,
switchboards equipped with:
with terminal strips for N and PE tracks,
< li>
TH 35 mounting bracket,
self-adhesive label for description.
< li>
12-module and larger models equipped with knockouts in the walls for cable grommets and installation pipes,
< /li>

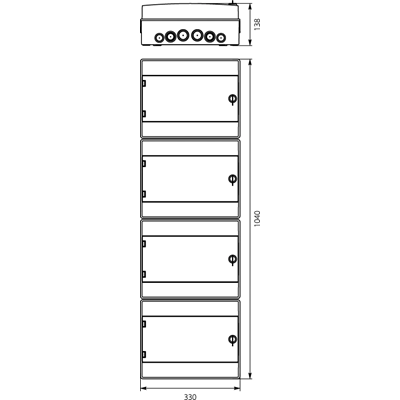

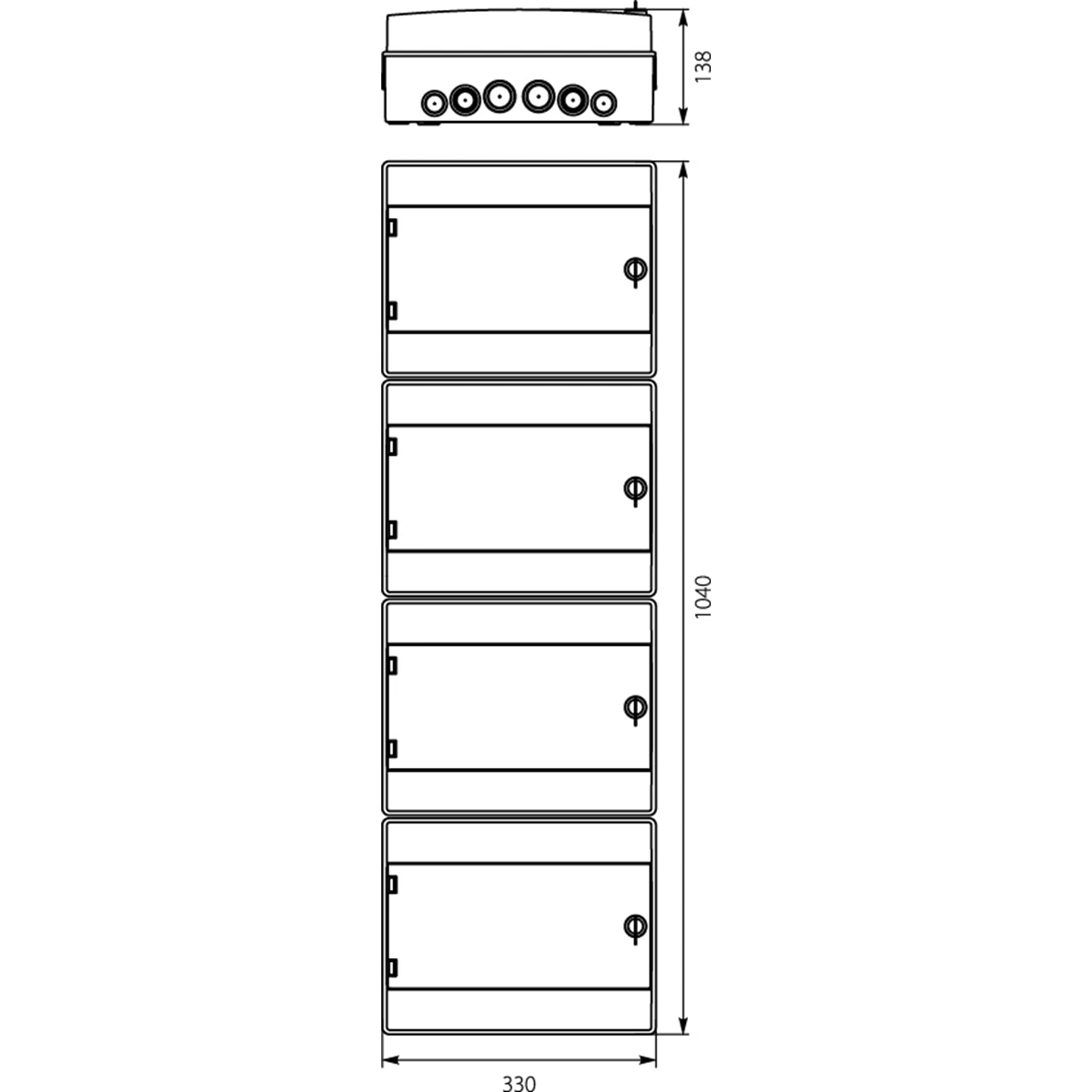

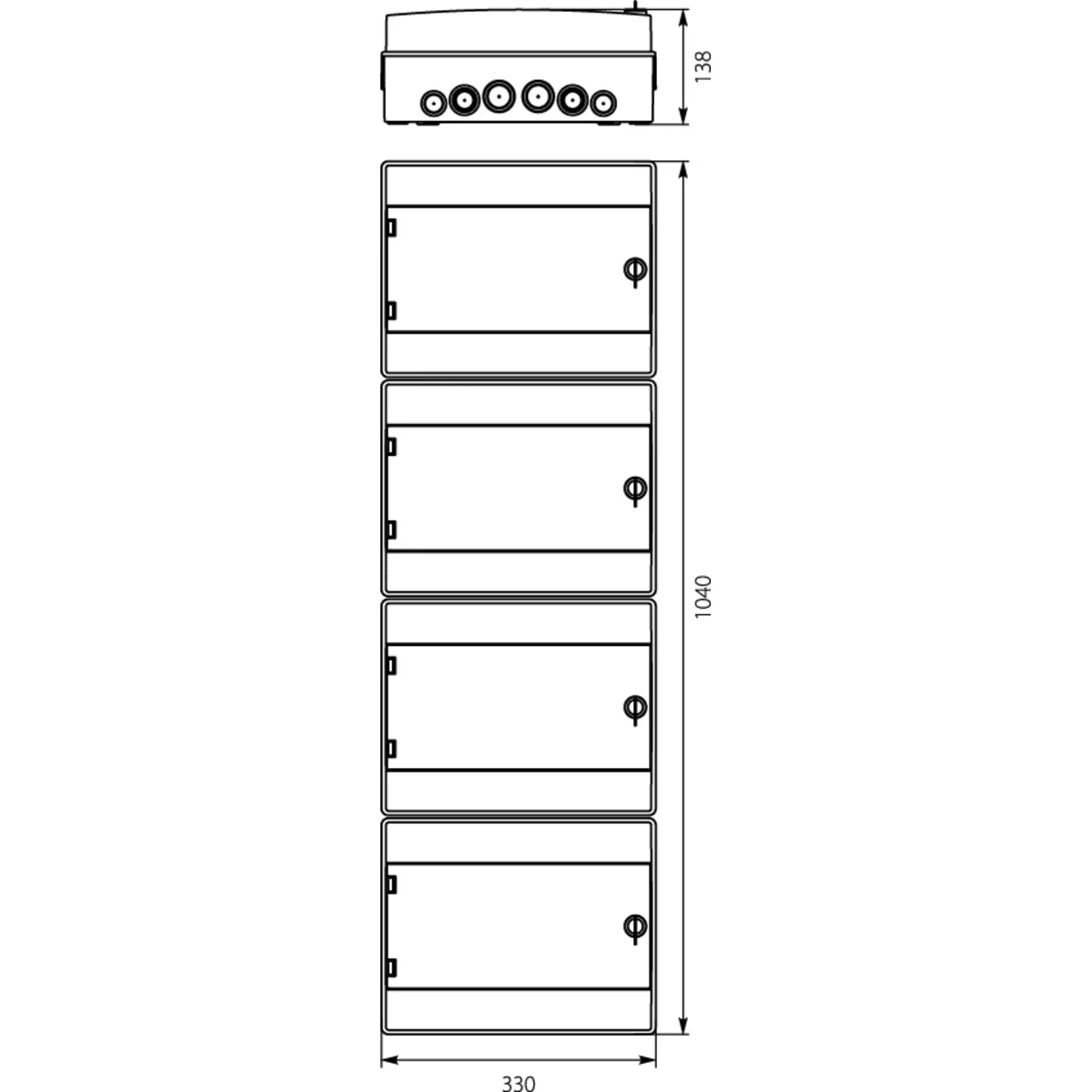

Technical data
-
Depth [mm]138
-
Number of rows4
-
Width [mm]330
-
PKWIU27.12.31.0
-
Number of modules48
-
Level of securityIP65
-
Height [mm]1040
Other technical data
-
Mounting methodSurface mounted
-
Width in number of modular spacings12
-
Cover modelWith notch
-
Housing materialPlastic
-
Width330 mm
-
Built-in depth42 mm
-
DIN-railYes
-
Extension possibleNo
-
ColourWhite
-
Degree of protection (IP)IP65
-
Type of closurePush button
-
Number of rows4
-
Type of coveringDoor
-
Transparent cover/doorYes
-
Height1040 mm
-
Depth138 mm
-
Inner depth90 mm
-
With mounting plateNo
-
EMC-versionYes
-
RAL-number9003
-
With lockNo
Manufacturer details
-
ManufacturerELEKTRO-PLAST Opatówek Sp.z o.o.
-
Address62-860 Opatówek Rogatka 14
-
Phone number
-
E-mail
-
Tax identification number9680893101
-
GLN5909000637801
Bulk packaging
| A kind of package | Sztuka | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 5,832 | - |
| Width (m) | - | 0,155 |
| Length (m) | - | 0,180 |
| Depth (m) | - | 0,265 |
