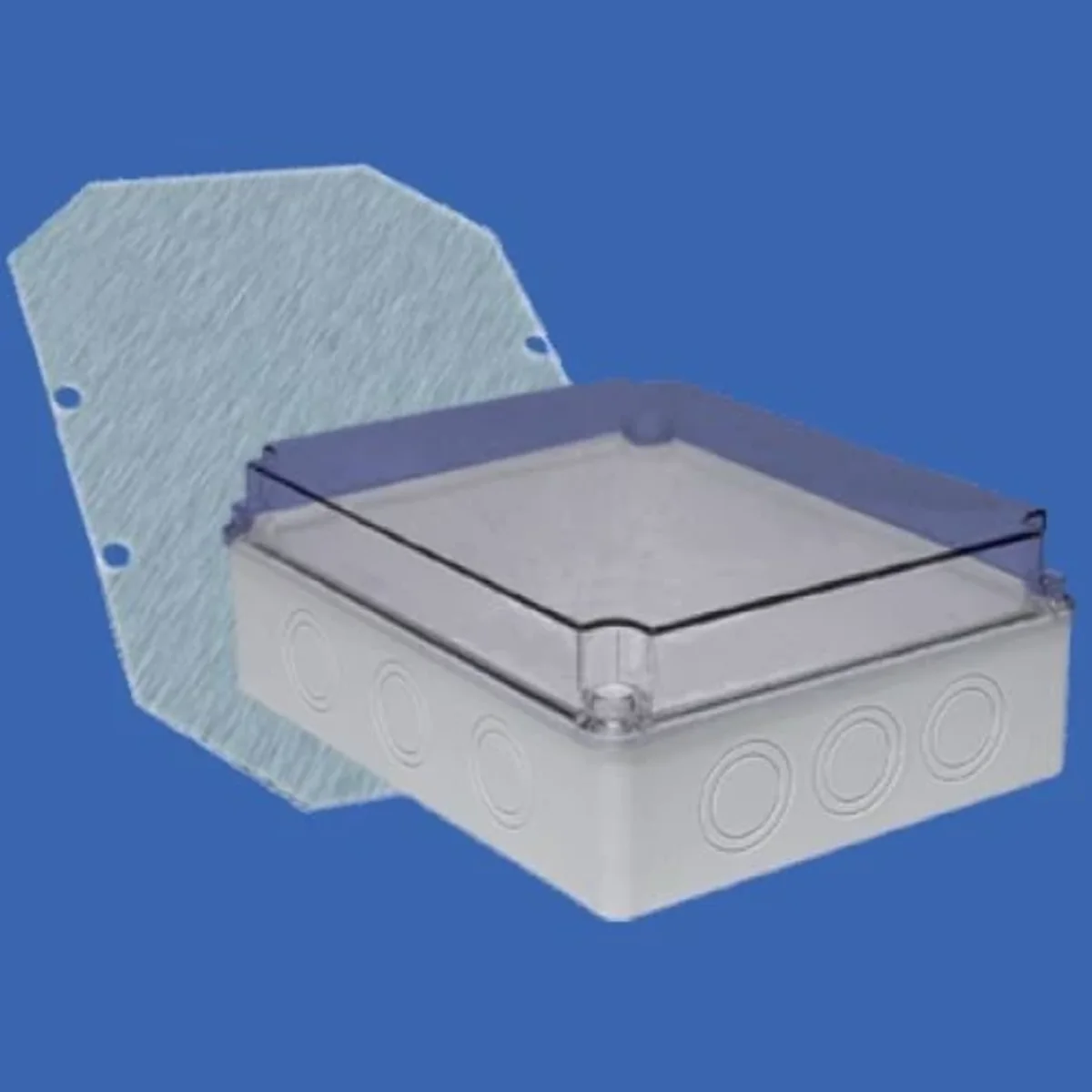

Hermetic housing OH-4A.3 29.43

local index:
RIH002ELOP
Catalog No:
29.43
EAN code:
5905548282589
Depth [mm]: 86
Color: White
Width [mm]: 248
Price:
10,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hermetic enclosures are used in various installation areas, such as industrial automation or surface-mounted installations in damp conditions. The family of hermetic enclosures consists of 34 versions, which include enclosures that differ in size and equipment. They are adapted for mounting various electrical devices such as contactors, relays, time switches.
The enclosures are available in three types: the basic version with knockouts for glands in the base, the version without equipment and the version with equipment such as Euro rail or mounting plate made of metal or plastic. In addition, they are characterized by a transparent cover available in two heights, thanks to which it is possible to mount elements of various sizes. A high degree of IP protection is obtained by using a flexible gasket that ensures tightness against dust and protection against moisture.

Technical data

  • Depth [mm]
    86
  • Width [mm]
    248
  • Accurate color
    White
  • Color
    White
  • Height [mm]
    198
  • PKWIU
    27.33.13.0

Other technical data

  • Max. conductor cross section
    6 mm²
  • Shape
    Rectangular
  • Mounting in the soil
    No
  • For tube diameter
    Other
  • Length
    198 mm
  • Depth
    96 mm
  • Tackable
    No
  • Type of housing feed-through
    Preembossing
  • Halogen free
    Yes
  • Colour
    Grey
  • Degree of protection (NEMA)
    12
  • Transparent cover
    Yes
  • Castable
    No
  • Sealable
    Yes
  • Circuit integrity
    None
  • Weatherproof
    No
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None
  • Equipped with
    Mounting plate
  • Mounting method
    Wall-/ceiling mounting
  • Mounting under water
    No
  • Inlet from the rear
    No
  • Width
    248 mm
  • Diameter
    0 mm
  • Number of inlets
    12
  • Material
    Plastic
  • Surface protection
    Untreated
  • Degree of protection (IP)
    IP65
  • Cover model
    Blind cover
  • Cover attachment
    Screwed
  • With casting compound
    No
  • Rated insulation voltage Ui
    500 V
  • With screening
    No
  • Operating temperature
    -25 ... 60 °C
  • For Ex-zone gas
    None
