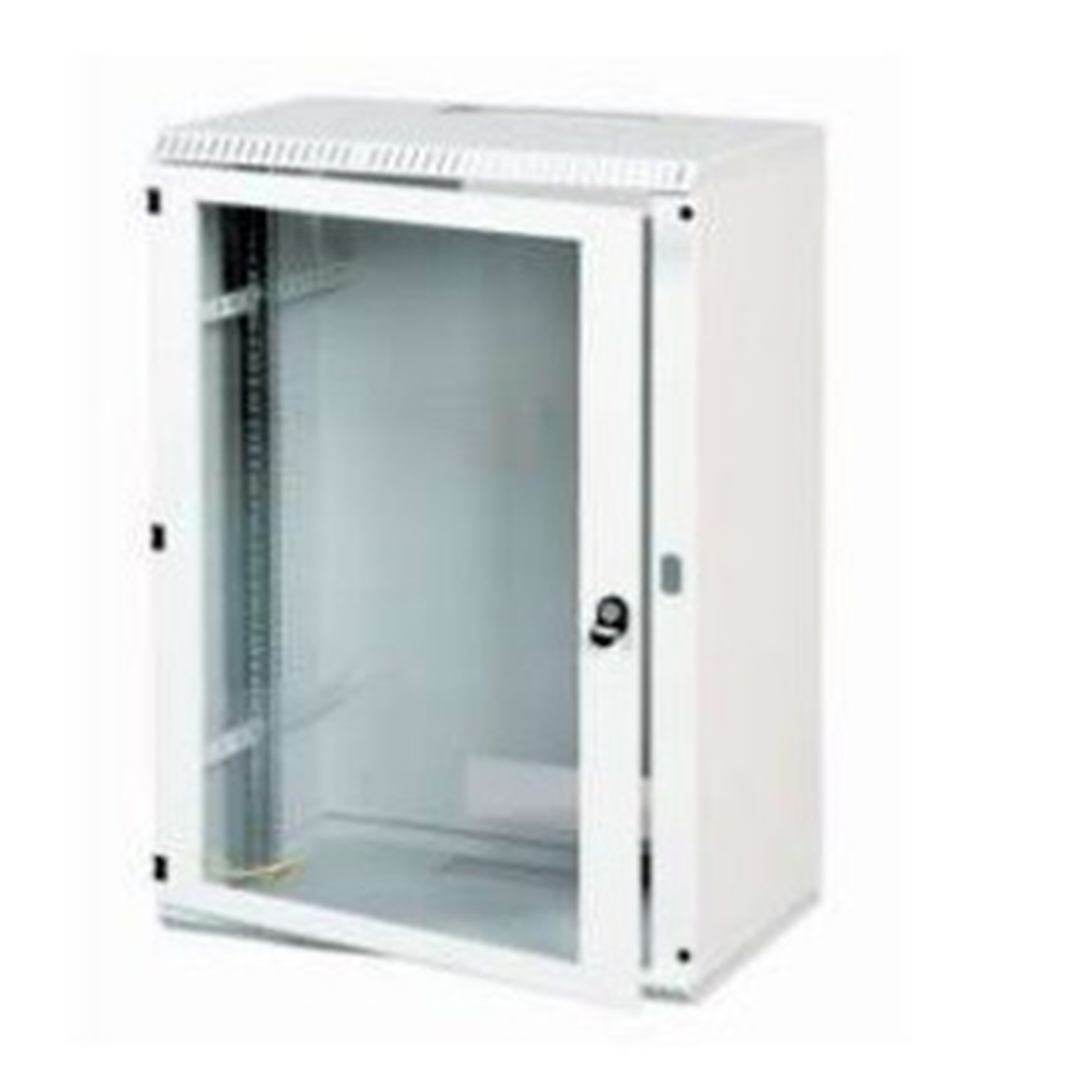

Hanging cabinet, 21U, 600/600/997 RAL 7035 BK/11039601.1V

Product description and technical characteristics:

The construction of the cabinet is made of steel sheet. The housing has four cable outlets (250x70mm) (1xtop part, 2xback part, 1xbottom part). Front door with glued tempered glass and a 1-point lock with a code, mounted on hinges that allow the door to open 180 degrees. Vertical mounting profiles19” made of galvanized sheet, mounted on horizontal traverses with a raster every 25 mm, minimum distance from the front door 65 mm. Ropes with a cross-section of 6mm and a length of 300mm (for grounding the front door).

Technical parameters:

Standard color RAL 7035 (light gray - structure) IP protection 20 One 19" mounting level Doors opening to the right or to the left - a function obtained by the possibility of freely hanging (top - bottom) the cabinet on the wall. The cabinet is fully assembled and grounded. The cabinets are packed in a cardboard box.

Assembly kit:

• 3 x cable entry plate
• 1 x brush bar.
• 12 x M2.9 x 9.5 sheet metal screws
< li>16 x M6 mounting screw
• 2 x front door key
