Golf IP40 flush-mounted switchgear with transparent door 72M VF418TD

Name: Golf IP40 flush-mounted switchgear with transparent door 72M
Brand: HAGER
SKU: RIP207HAGE
Price: 194.93 PLN

local index:

RIP207HAGE

Catalog No:

VF418TD

EAN code:

3250616463394

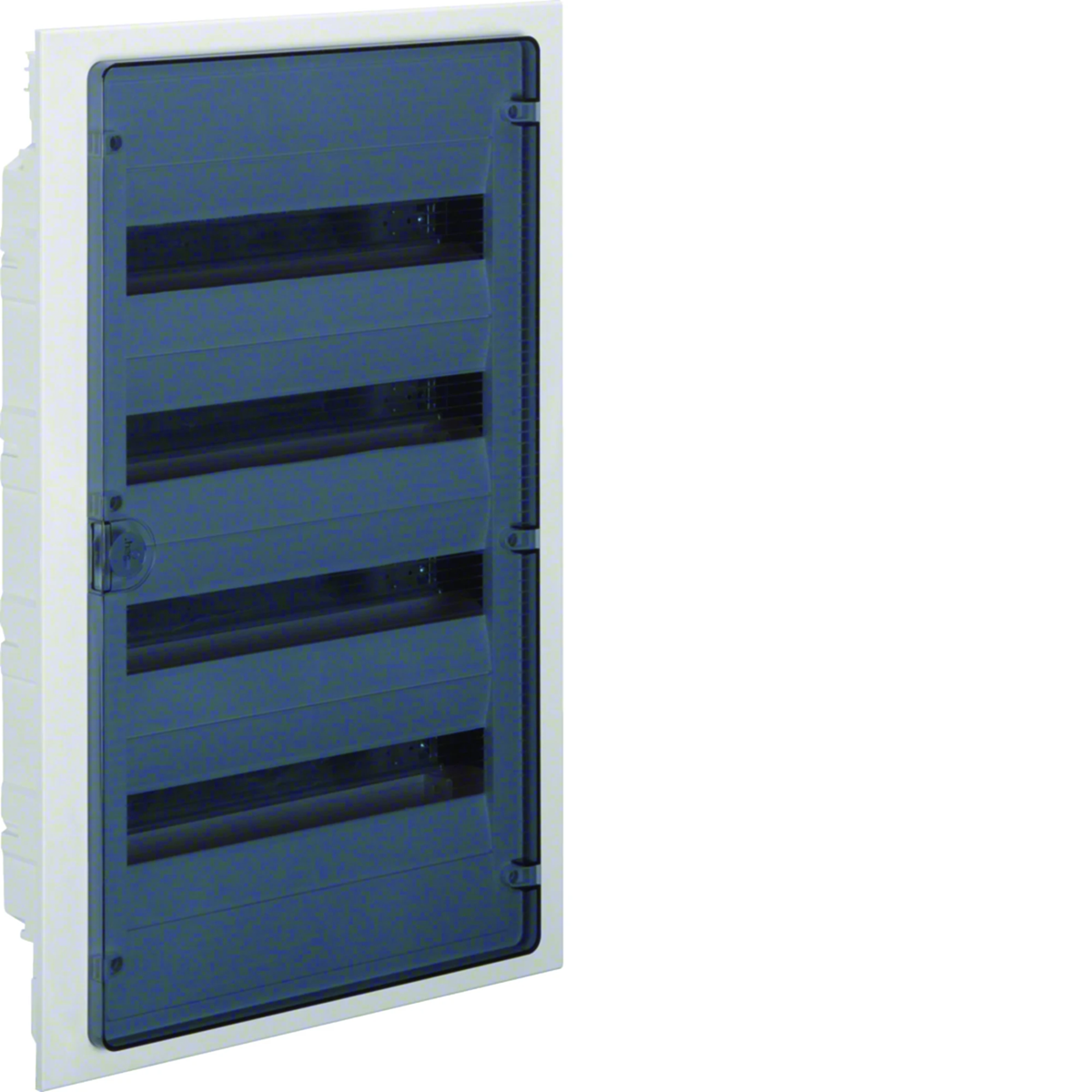

Golf IP40 flush-mounted switchgear with transparent door 72M

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 97.5

Number of doors: 1

Number of modules: 72

See full description

Price:

194,93 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

1-4 rows surface-mounted distribution boards, for 4 to 72 modules, for devices with a depth of up to 70 mm, supplied with solid or transparent doors. The box is made of plastic. Simple replacement of the left-right door, without the need to dismantle the masking frame. Optionally, a lock with a key can be installed. The door opens to the angle of 180°.

Technical data

Depth [mm]

97.5
Number of modules

72
Level of security

IP40
Height [mm]

688
PKWIU

27.12.40.0

Number of doors

1
Number of rows

4
Width [mm]

460
Number of modules

72

Other technical data

Mounting method

Flush-mounted
Width in number of modular spacings

18
Cover model

Closed
Housing material

Plastic
Width

460 mm
Built-in depth

72 mm
DIN-rail

Yes
Extension possible

Yes
RAL-number

9010
With lock

No

Number of rows

4
Type of covering

Door
Transparent cover/door

Yes
Height

688 mm
Depth

97.5 mm
Inner depth

97.5 mm
With mounting plate

No
Colour

White
Degree of protection (IP)

IP40
Type of closure

Other

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	22 pcs.
Weight (kg)	3,846	4,170	116,740
Width (m)	0,475	0,475	0,800
Length (m)	0,105	0,105	1,300
Depth (m)	0,705	0,705	1,200
