Gland V-TEC VM M20X1.5 J.SZ. 2022866

local index:
RRR080OBOB
Catalog No:
2022866
EAN code:
4012195533658
Manufacturer: OBO BETTERMANN
Color: Gray
Handle: M20x1.5
Accurate color: light gray
Price:
0,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 1771 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

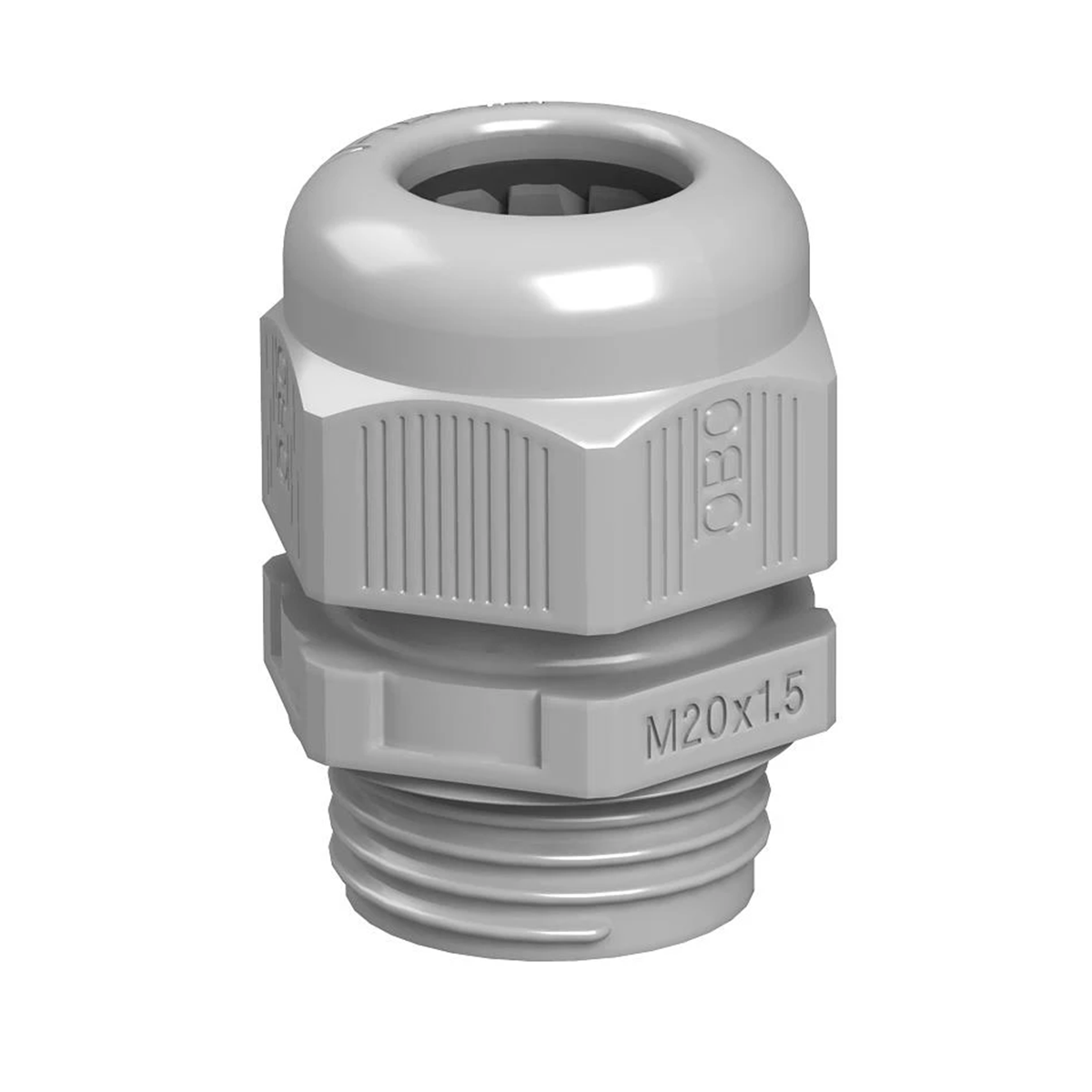

V-TEC VM M20X1, 5 J.SZ. cable gland. Durable cable gland with metric thread according to IEC 423 with a cap nut design ensuring high tightness. Strain relief, anti-twist protection and tightness over the entire clamping area. Polychloroprene/ABS rubber sealing ring. Spray-on seal on the intermediate piece, no need for a thread seal ring, VDE-approved according to DIN EN 50262, degree of protection IP68 at 5 bar/1h. Operating temperature range -20°C to +65°C.

Technical data

  • Color
    Gray
  • Accurate color
    light gray
  • Handle
    M20x1.5
  • PKWIU
    22.29.29.0

Bulk packaging

A kind of package Skrzynia Karton Paleta
Quantity 50 pcs. 600 pcs. 14400 pcs.
Weight (kg) 0,518 6,690 183,060
Volume (m3) 0,002 0,028 0,912
Width (m) 0,137 0,288 0,800
Length (m) 0,187 0,395 1,200
Depth (m) 0,077 0,249 0,950
