Gland V-TEC VM M12X1.5 J.SZ. 2022862

local index:
RRR075OBOB
Catalog No:
2022862
EAN code:
4012195533177
Manufacturer: OBO BETTERMANN
Color: Gray
Handle: M12x1.5
Accurate color: light gray
Price:
0,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 733 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Robust cable gland with metric thread according to IEC 423 with a cap nut design that guarantees high tightness. Strain relief, anti-twist protection and tightness over the entire clamping area. Polychloroprene/ABS rubber sealing ring. Spray-on seal on the intermediate piece, no need for a thread seal ring, VDE approved according to DIN EN 50262, IP68 protection at 5 bar/1h. Operating temperature range -20°C to +65°C.

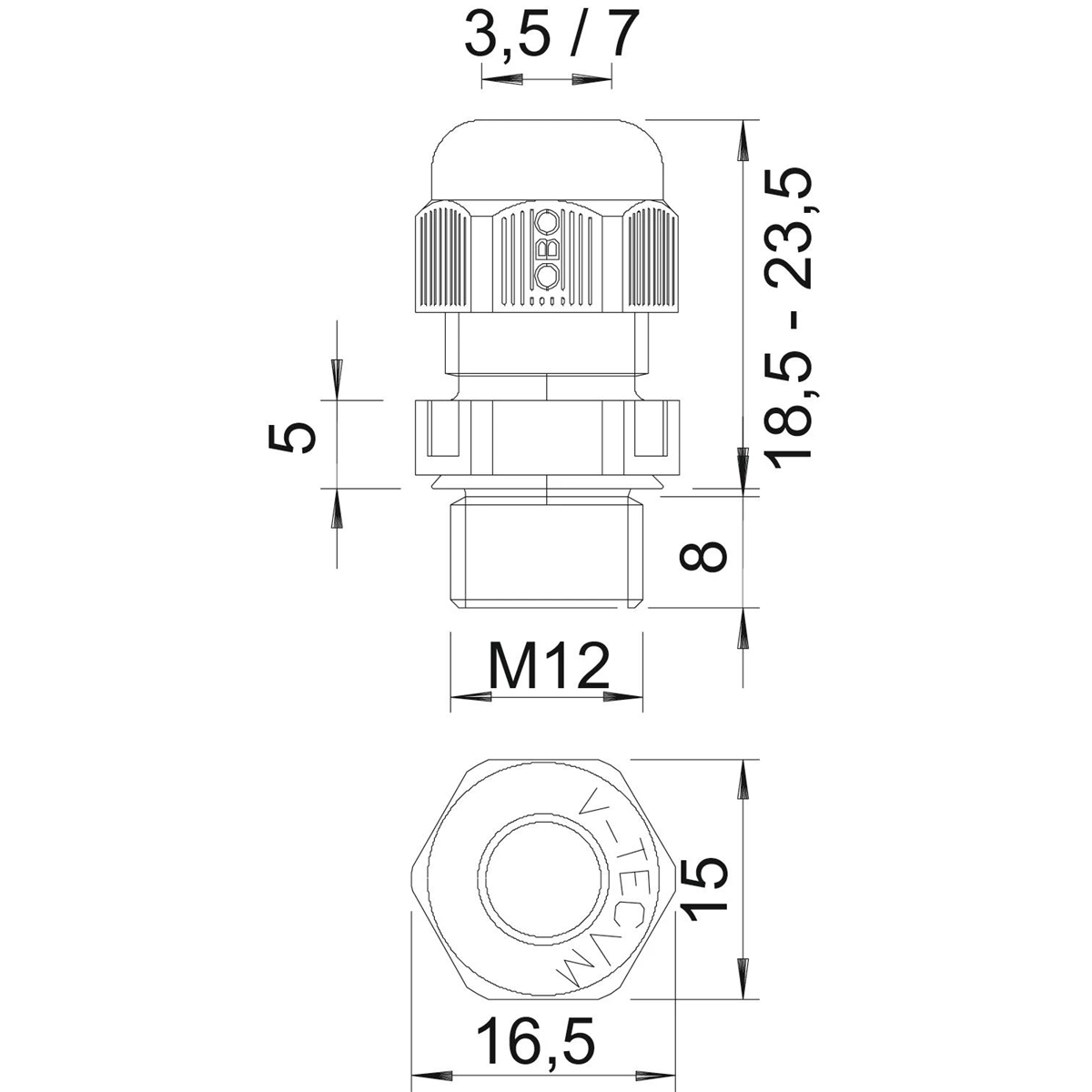

Technical data

  • Color
    Gray
  • Accurate color
    light gray
  • Handle
    M12x1.5
  • PKWIU
    22.29.29.0

Bulk packaging

A kind of package Skrzynia Karton Paleta
Quantity 50 pcs. 500 pcs. 50000 pcs.
Weight (kg) 0,195 2,144 236,900
Volume (m3) 0,001 0,006 0,912
Width (m) 0,073 0,148 0,800
Length (m) 0,133 0,235 1,200
Depth (m) 0,055 0,183 0,950
