Gland TPG-MG25-GR TPG-M25GR

Index local:
RRR092BORP
Numéro de catalogue:
TPG-M25GR
Code EAN:
5901924533900
Producteur: TRYTYT
Wall thickness [mm]: 0.5-3.5
Color: Gray
Maximum operating temperature [°C]: 125
Prix:
4,10 €
gross / pack
(y compris la TVA 23%)
0,41 € gross/pcs.
Livraison en 3h
jusqu'à 4 semaines (jours ouvrables)
Ramassage en 1h
Quantité pack
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer

Description du produit

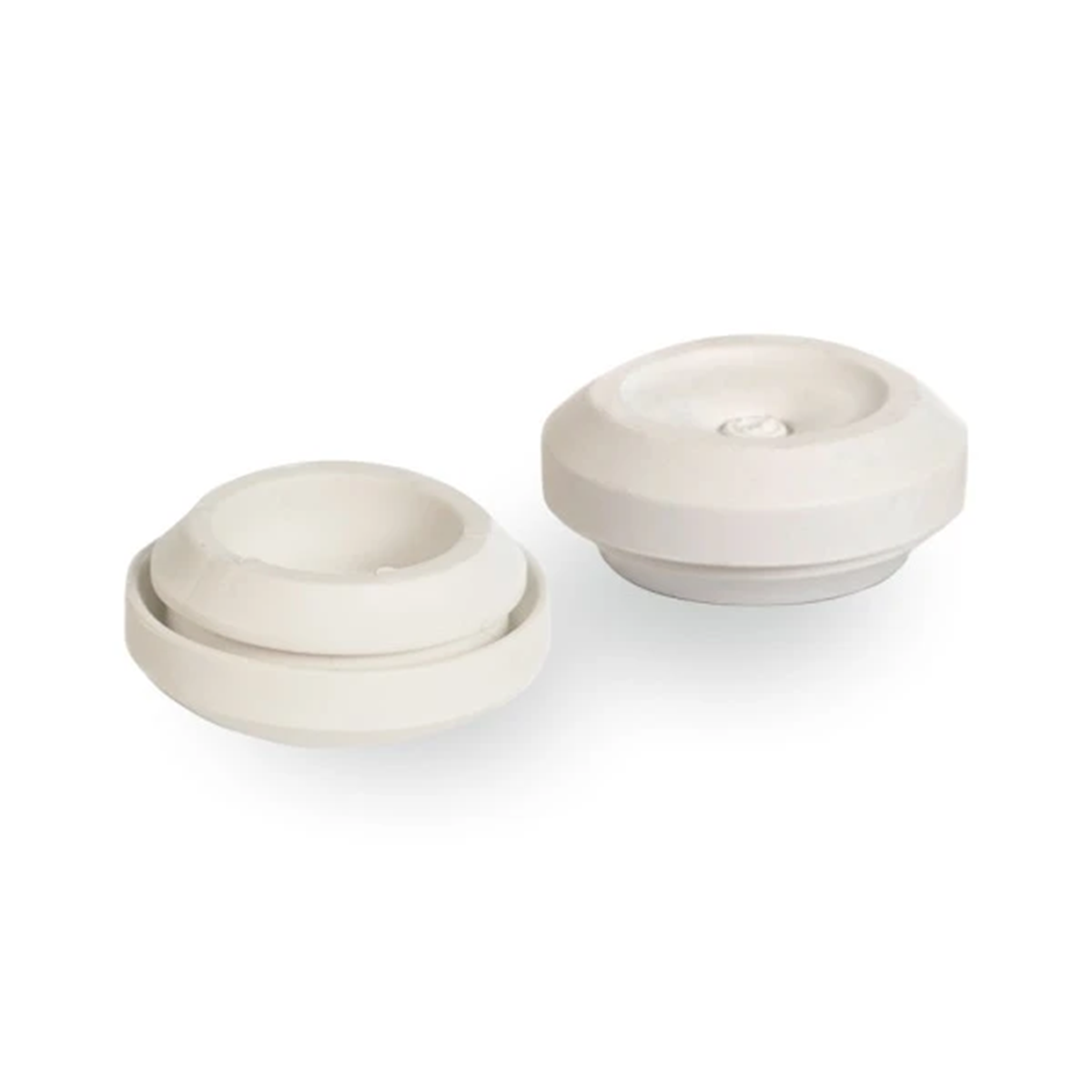

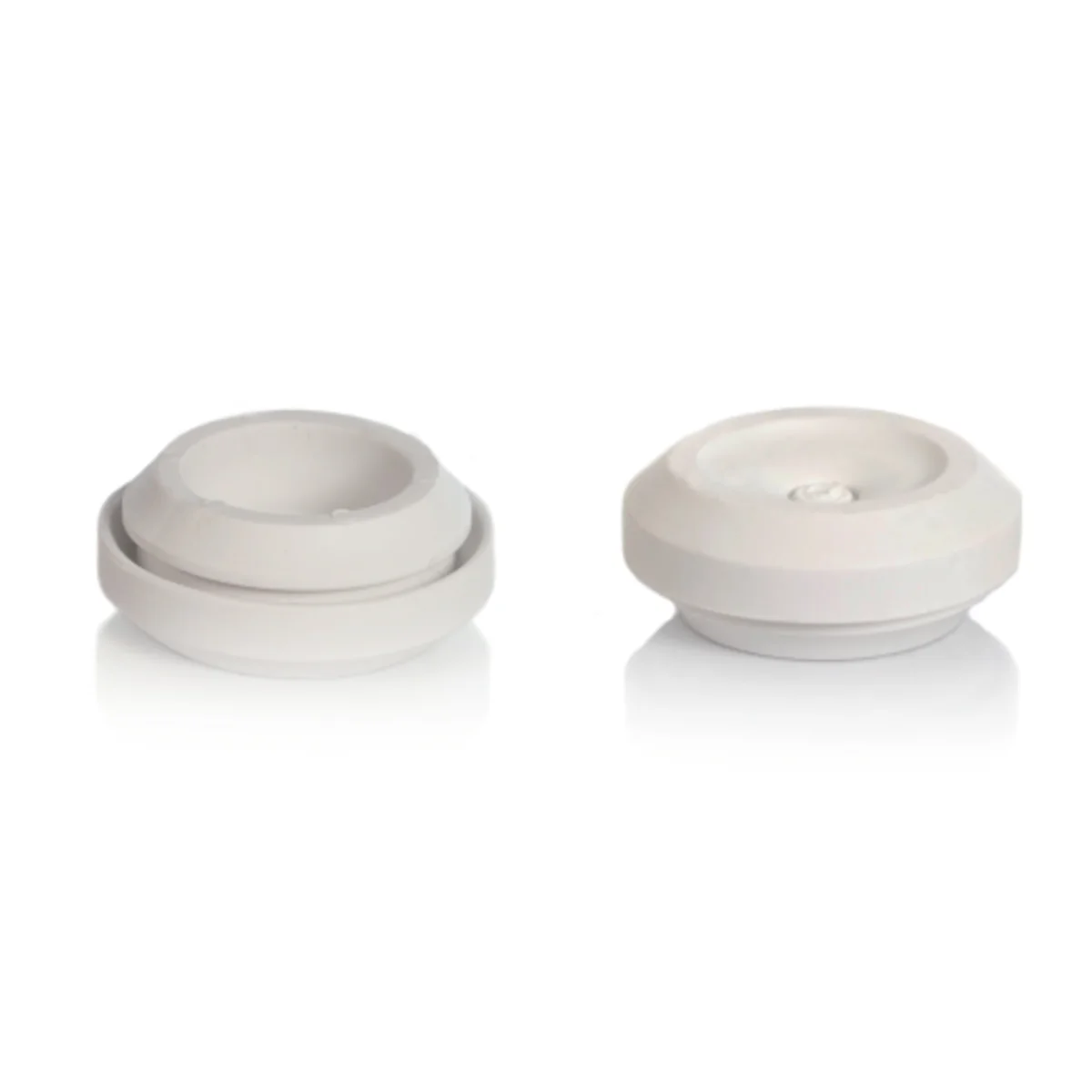

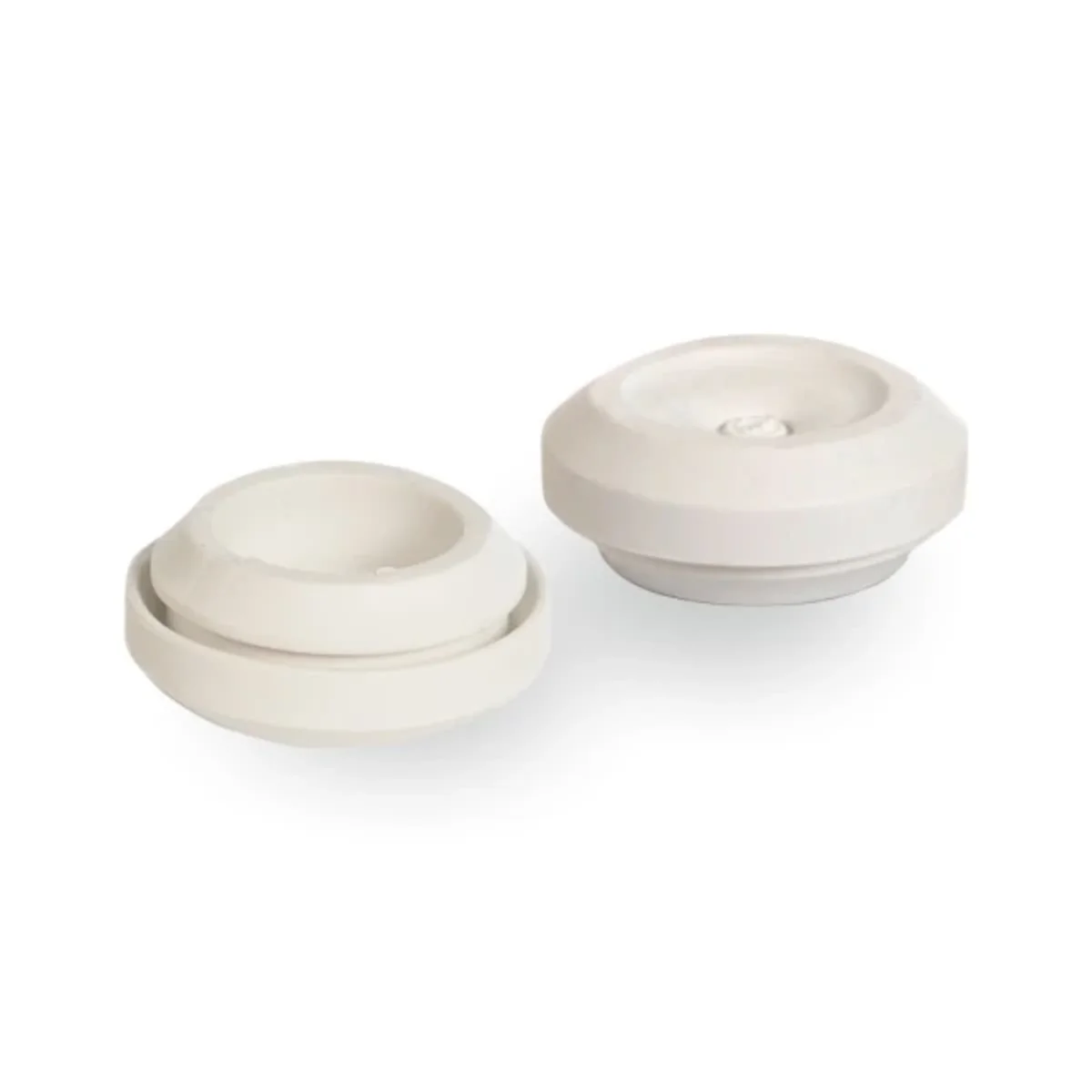

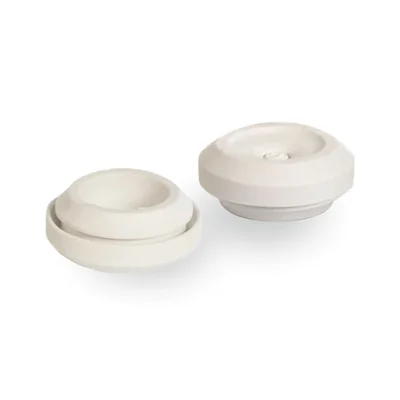

TPG cable glands are a product that is simple in its construction, ensuring IP-67 degree of tightness, and at the same time, easy and quick to install. The grommet consists of a flange that adheres closely to the cable, does not restrict its movement, and at the same time ensures dust and water tightness. TPG cable glands are used in electrical devices, cable passages through sheet metal walls of housings and wherever there is a need to protect wires against abrasion, while ensuring the tightness of the device. They can also be used as plugs before future assembly. The cable through the cable gland can also come out of the device at a slight angle.

Données techniques

  • Wall thickness [mm]
    0.5-3.5
  • Maximum operating temperature [°C]
    125
  • Level of security
    IP67
  • Cable diameter [mm]
    8-17
  • PKWIU
    22.19.73.0
  • Color
    Gray
  • Material
    Thermoplastic elastomer
  • Pieces in the package
    10
  • Minimum operating temperature [°C]
    -50

Détails du fabricant

  • Producteur
    TRYTYT Sp. z o.o.
  • Adresse
    43-382 Bielsko-Biała Horeszków 8 Polska
