Gland PG 29 IP 68 light gray 10 pcs 250072

local index:
RRR018HAUP
Catalog No:
250072
EAN code:
4011923497071
Manufacturer: HAUPA
For cables with diameter [mm]: 18 - 25
Thread: M29
Level of security: IP68
Price:
11,73 €
gross / pkg.
(including VAT 23%)
1,17 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

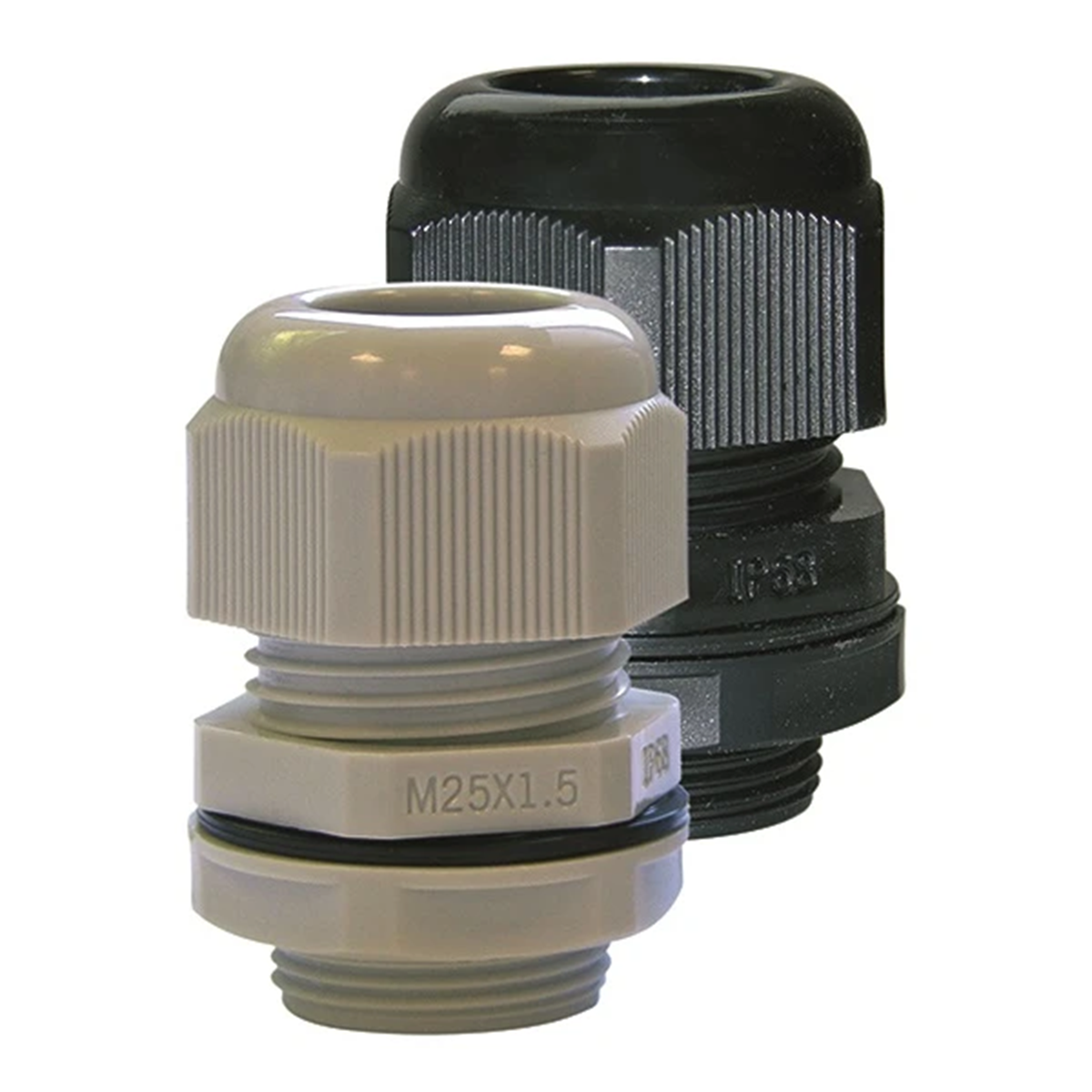

Cable gland

Material: polyamide 6.6, (nuts: PA 6.6 halogen free, washers: TPR (thermoplastic rubber), halogen free, gasket: PVC).

  • Colour: light gray or black,
  • Application temperature: –40ºC to +85ºC,
  • Vibration protection: no twisting in case of vibration during assembly,
  • flammability class: acc. UL 94 V-2,
  • protection class; IP68,
  • features: easy to install,
  • certainty of tightening,
  • RoHS compliant


Technical data

  • For cables with diameter [mm]
    18 - 25
  • Level of security
    IP68
  • Package height [mm]
    60
  • Package weight [kg]
    0.3
  • Thread
    M29
  • Pieces in the package
    10
  • Package width [mm]
    70
  • Package length [mm]
    80

Other technical data

  • Thread type
    PG
  • Thread length
    10.8 mm
  • Suitable for cable diameter
    18 ... 25 mm
  • Material quality
    Polyamide (PA)
  • Glass-fibre reinforced
    No
  • Shock resistant
    No
  • With locknut
    Yes
  • Multi seal area
    No
  • With strain relief
    No
  • Separable screw gland
    No
  • Pitch thread
    1.5 mm
  • Wrench width
    42 mm
  • Material
    Plastic
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP68
  • Bend radius protection/trumpet flare
    No
  • Model
    Straight
  • Flat cable coupling
    No
  • Type of sealing
    Sealing ring
  • Operating temperature
    -40 ... 85 °C
