Gland PG 16 IP 68 black 10 pcs 250108
local index:
RRR036HAUP
Catalog No:
250108
EAN code:
4011923497255
Price:
4,86 €
gross / pkg.
(including VAT 23%)
0,49 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

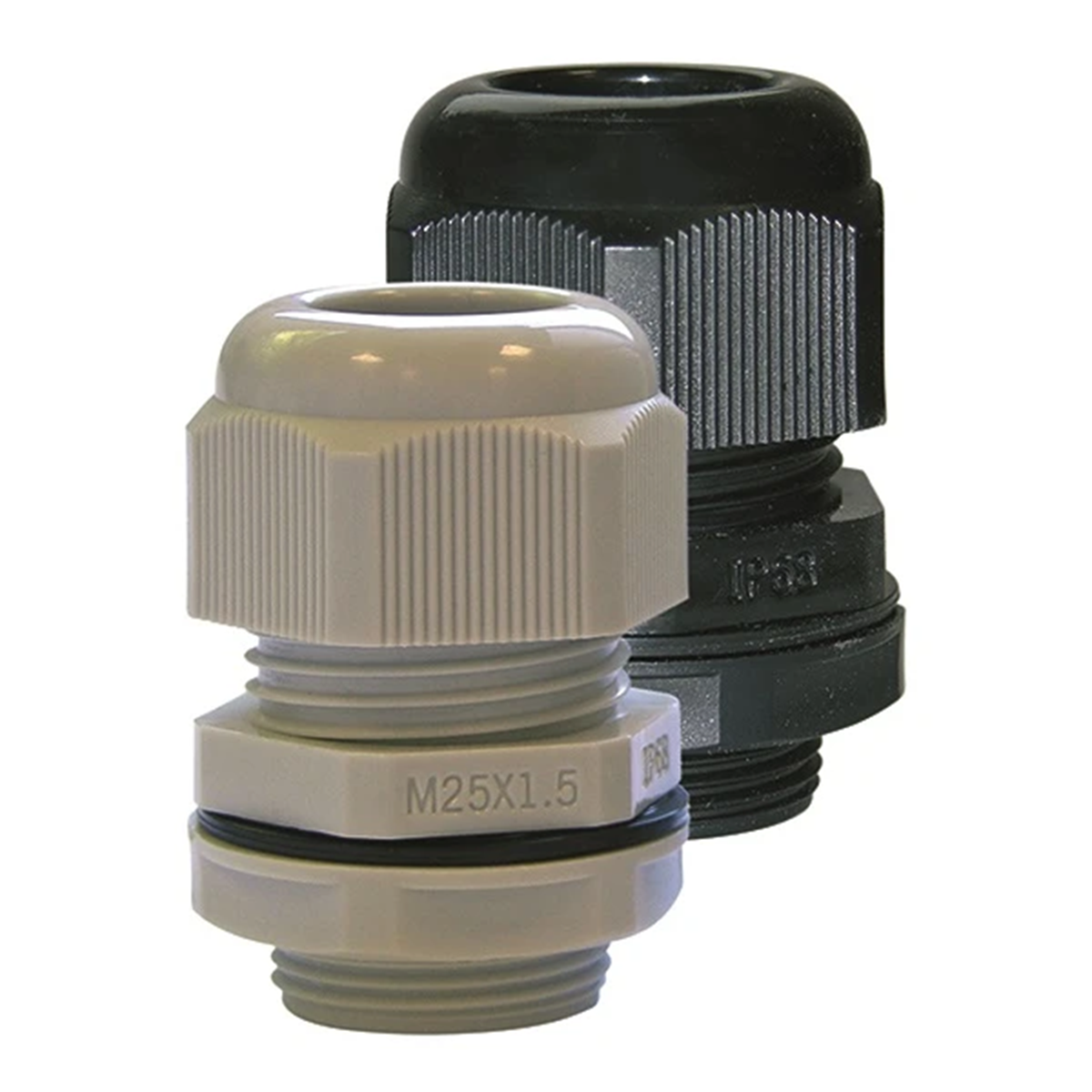

Cable gland
Material: polyamide 6.6, (nuts: PA 6.6 halogen free, washers: TPR (thermoplastic rubber), halogen free, gasket: PVC).
- Colour: light gray or black,
- Application temperature: –40ºC to +85ºC,
- Vibration protection: no twisting in case of vibration during assembly,
- flammability class: acc. UL 94 V-2,
- protection class; IP68,
- features: easy to install,
- certainty of tightening,
- RoHS compliant
Technical data
-
For cables with diameter [mm]10 - 14
-
Level of securityIP68
-
Package height [mm]60
-
Package weight [kg]0.3
-
ThreadM16
-
Pieces in the package10
-
Package width [mm]70
-
Package length [mm]80
Other technical data
-
Thread typePG
-
Thread length9.8 mm
-
Suitable for cable diameter10 ... 14 mm
-
Material qualityPolyamide (PA)
-
Glass-fibre reinforcedNo
-
Shock resistantNo
-
Bend radius protection/trumpet flareNo
-
ModelStraight
-
Flat cable couplingNo
-
Type of sealingSealing ring
-
Operating temperature-40 ... 85 °C
-
Pitch thread1.5 mm
-
Wrench width27 mm
-
MaterialPlastic
-
Halogen freeYes
-
Degree of protection (IP)IP68
-
ColourBlack
-
With locknutYes
-
Multi seal areaNo
-
With strain reliefNo
-
Separable screw glandNo
