FW2 Complete switchgear 3x12M with PE/N terminals IP30/I surface-mounted class FW312WT

Name: FW2 Complete switchgear 3x12M with PE/N terminals IP30/I surface-mounted class
Brand: HAGER
SKU: RIR028HAGE
Price: 264.88 PLN

local index:

RIR028HAGE

Catalog No:

FW312WT

EAN code:

3250614300943

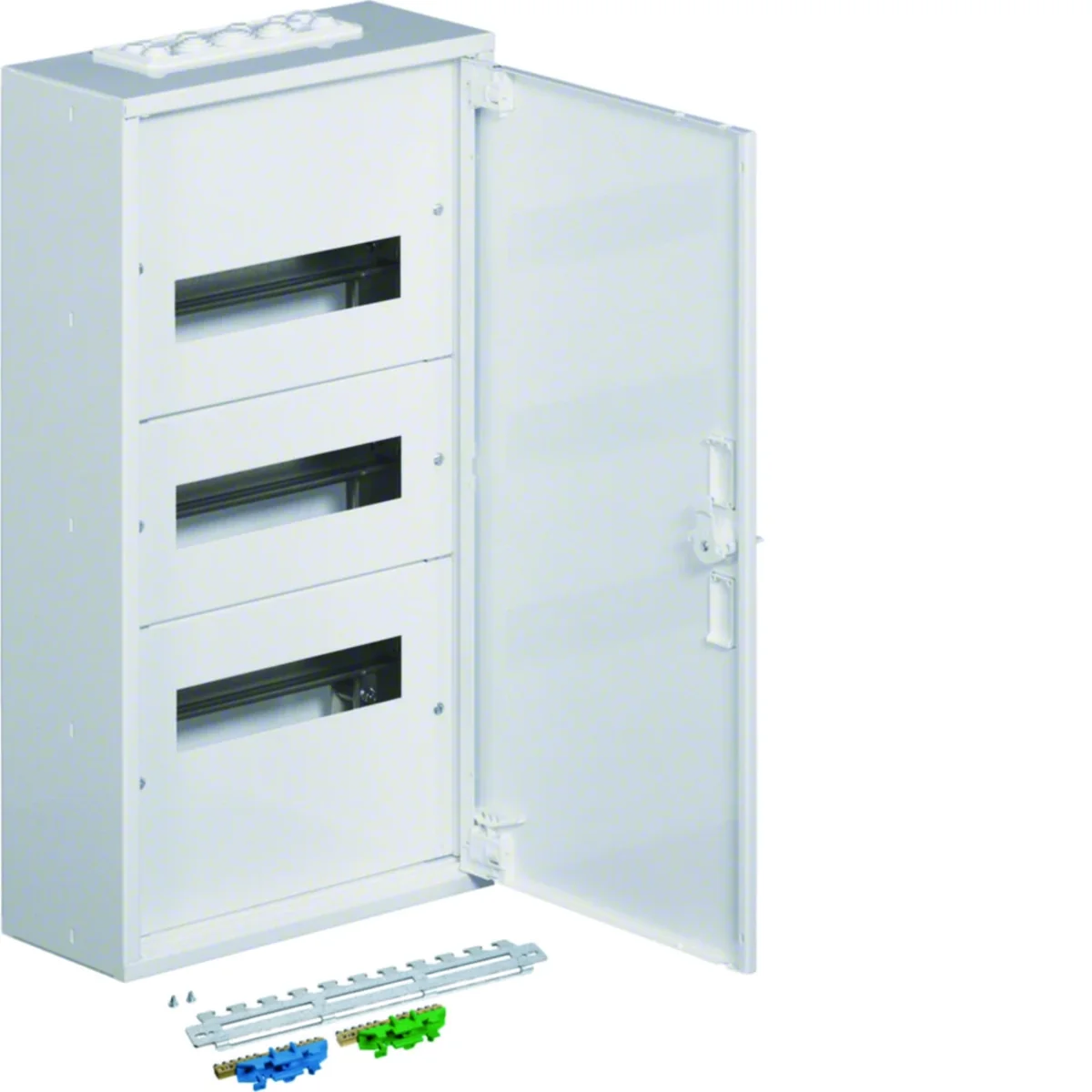

FW2 Complete switchgear 3x12M with PE/N terminals IP30/I surface-mounted class

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 150

Number of doors: 1

Protection class: AND

See full description

Price:

264,88 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Surface mounted switchgear series fw2:

3 rows /36 modules (3x12)
mounting rails spacing 150mm

Series characteristics:

Thanks to the depth of 15 cm, surface-mounted metal switchgears allow the installation of higher than modular devices and provide the required cable space.

complete surface-mounted switchgear with doors, mounting grid, metal covers and a set of PE/N screw terminals mounted on a special bracket, for devices up to 125 A,
protection level IP30,
perforated cable entries - top and bottom
door closing: lever handle,

Technical data

Depth [mm]

150
Protection class

AND
Material

Galvanized steel sheet
Installation

Surface-mounted
Level of security

IP4X
Height [mm]

641
Number of modules

36
Number of rows for cameras

3

Number of doors

1
Color

White
Housing material

Steel plate
Family

FW2
Width [mm]

354
Surface finish

Powder coated
Number of sections

1
PKWIU

27.12.40.0

Other technical data

Mounting method

Surface mounted
Width in number of modular spacings

12
Cover model

Closed
Housing material

Steel
Width

354 mm
Inner depth

150 mm
With mounting plate

No
Colour

White
Degree of protection (IP)

Other
Type of closure

Other

Number of rows

3
Type of covering

Door
Transparent cover/door

No
Height

641 mm
Depth

150 mm
DIN-rail

Yes
Extension possible

Yes
RAL-number

9010
With lock

No

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	16 pcs.
Weight (kg)	11,500	12,000	217,000
Width (m)	0,358	0,380	0,800
Length (m)	0,642	0,160	0,940
Depth (m)	0,150	0,670	1,200
