FW Complete switchgear 120M IP30 class II, flush-mounted FWU52S

Indice locale:
RIP014HAGE
Numero di catalogo:
FWU52S
Codice EAN:
3250612739646
Prezzo:
2 061,58 zł
gross / pezzi
(inclusa IVA 23%)
2 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

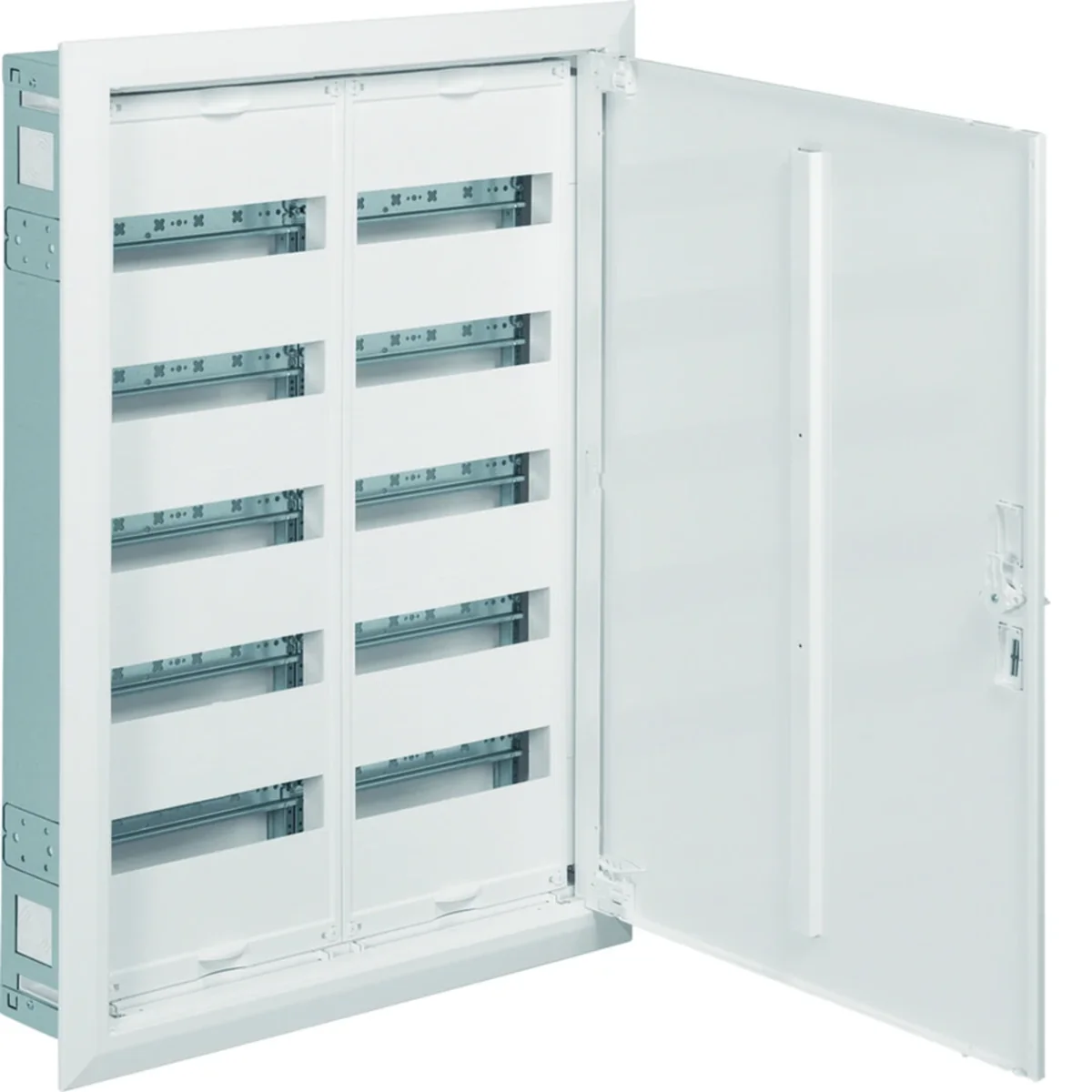

FW Complete switchgear 120M IP30 class II, flush-mounted

Dati tecnici

  • Family
    FW
  • PKWIU
    27.12.40.0

Altri dati tecnici

  • Mounting method
    Hollow wall
  • Width in number of modular spacings
    24
  • Cover model
    With notch
  • Transparent cover/door
    No
  • With lock
    No
  • Housing material
    Steel
  • Built-in height
    802 mm
  • Inner depth
    119 mm
  • Neutral terminal block
    No
  • With mounting plate
    No
  • Colour
    White
  • RAL-number
    9010
  • Height
    853 mm
  • Depth
    125 mm
  • Number of rows
    5
  • Type of covering
    Door
  • Type of door
    Single
  • Signal passing door
    No
  • Type of closure
    Other
  • Built-in depth
    112 mm
  • Built-in width
    560 mm
  • Earthing terminal block
    Yes
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • EMC-version
    No
  • Degree of protection (IP)
    IP30
  • Width
    603 mm

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Karton Paleta
Quantità 1 pezzi 7 pezzi
Peso (kg) 18,800 156,600
Larghezza (m) 0,630 0,800
Lunghezza (m) 0,860 1,020
Profondità (m) 0,160 1,200
