Switchboards and enclosures
Elements of switchgears and stations
Copper rails
el12
sale
El12 and HAGER

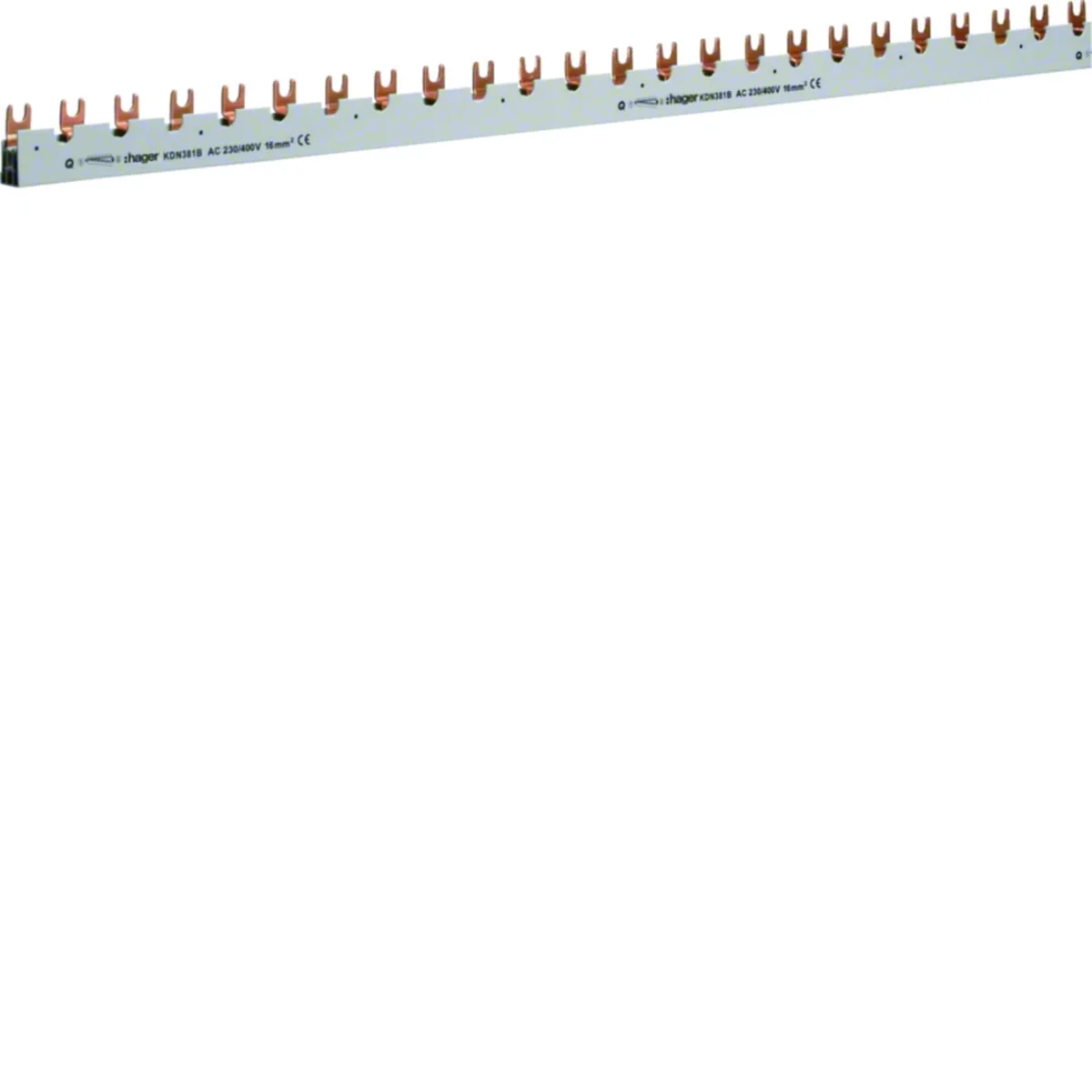

Fork rail 3P 16 mm2 59M KDN381B
local index:
RPU093HAGE
Catalog No:
KDN381B
EAN code:
3250613741280
Click on the photo to enlarge
Manufacturer:
HAGER
Length [mm]:
1000
Color:
Gray
Number of poles:
3P
See full description
Price:
76,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Fork rail 3P 16 mm2 59M
Technical data
Length [mm]
1000
Number of poles
3P
Connection type
With a screw
Maximum operating voltage [V]
400
Conductor cross-section (wire) [mm²]
16
Color
Gray
Rated current [A]
80
Number of modules
57
Connection type
comb rail
PKWIU
27.33.13.0
Other technical data
Number of phases
3
Suitable for number of devices
14
Cross section
16 mm²
Rated permanent current Iu
80 A
Insulated
Yes
Max. rated operation voltage Ue
400 V
Suitable for devices with auxiliary switch
No
Number of poles
3
Module width
17.8 mm
Length
1000 mm
Type of electric connection
Fork
Rated surge voltage
4 kV
Suitable for devices with N-conductor
No
Bulk packaging
A kind of package
Karton
Paleta
Quantity
1 pcs.
10 pcs.
800 pcs.
Weight (kg)
0,660
6,880
650,400
Width (m)
0,015
0,091
0,840
Length (m)
0,035
0,060
1,200
Depth (m)
1,040
1,078
1,240
