Fork rail 1P for SPD 16 mm2 56M KD180U
local index:
RPU062HAGE
Catalog No:
KD180U
EAN code:
3250613740139
Price:
27,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

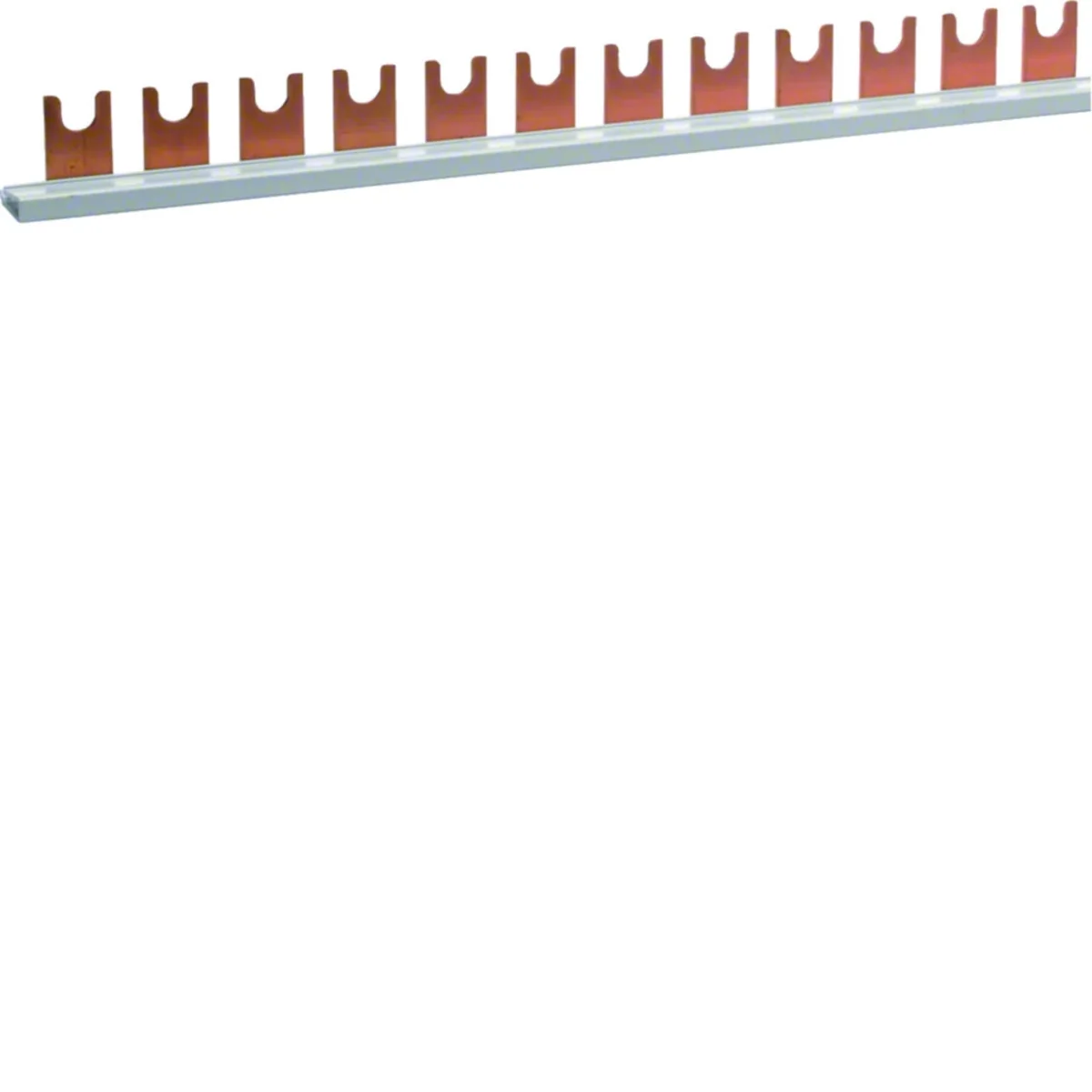

Fork rail 1P for SPD 16 mm2 56M
Technical data
-
Length [mm]1000
-
Number of poles1P
-
Connection typeWith a screw
-
Maximum operating voltage [V]230
-
Conductor cross-section (wire) [mm²]16
-
ColorGray
-
Rated current [A]80
-
Number of modules57
-
Connection typecomb rail
-
PKWIU27.33.13.0
Other technical data
-
Number of phases1
-
Suitable for number of devices57
-
Cross section16 mm²
-
Rated permanent current Iu80 A
-
InsulatedYes
-
Max. rated operation voltage Ue415 V
-
Suitable for devices with auxiliary switchNo
-
Number of poles1
-
Module width17.8 mm
-
Length1000 mm
-
Type of electric connectionFork
-
Rated surge voltage4.5 kV
-
Suitable for devices with N-conductorNo
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 1000 pcs. |
| Weight (kg) | 0,309 | 3,140 | 334,000 |
| Width (m) | 0,015 | 0,097 | 0,800 |
| Length (m) | 0,020 | 0,016 | 0,420 |
| Depth (m) | 1,007 | 0,405 | 1,200 |
