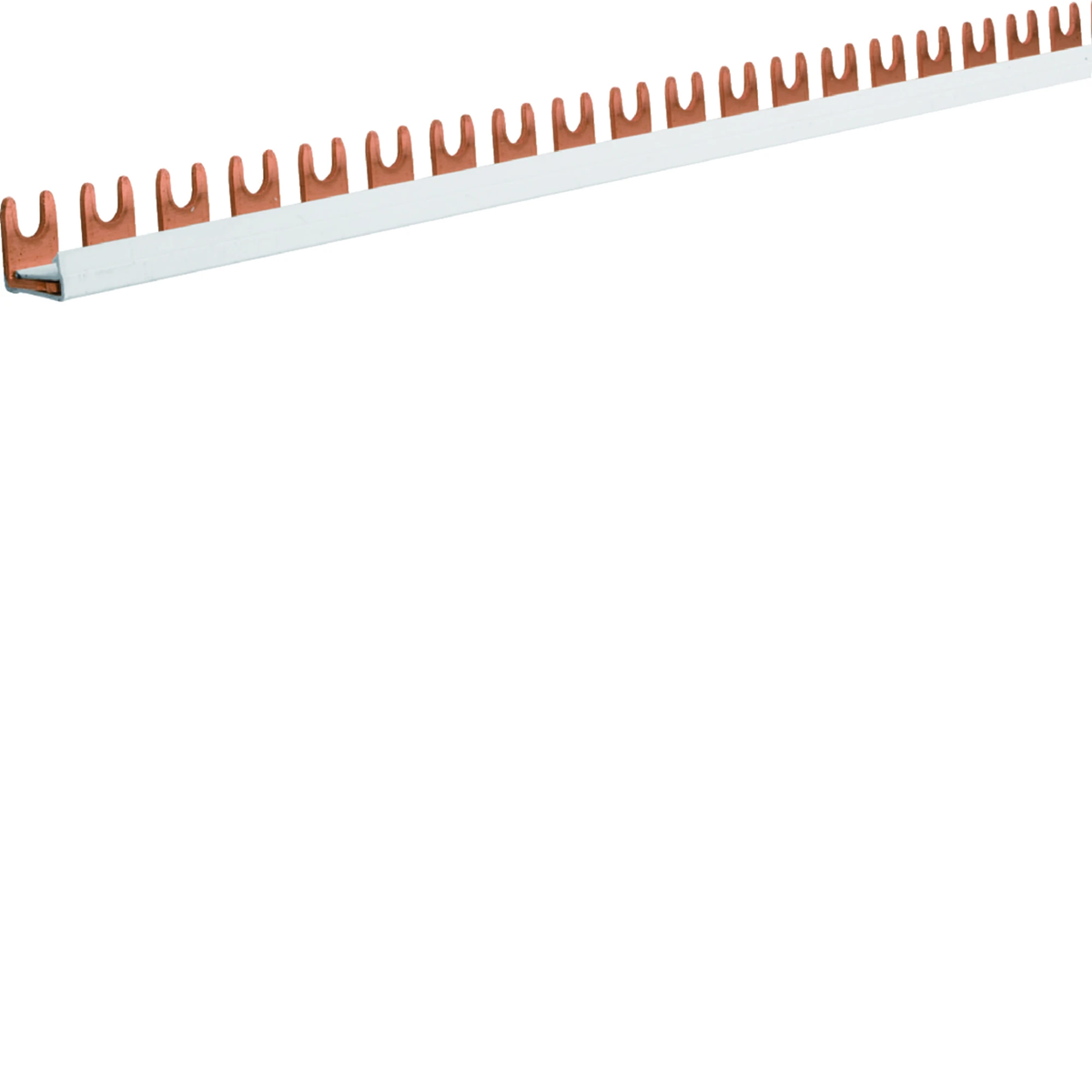

Name: Fork rail 1P 16 mm2 57M
Brand: HAGER
SKU: RPU021HAGE
Price: 35.34 PLN

Dedicated Hager connection accessories mean connection speed and the highest degree of security. The use of comb rails also means more space inside the housing and lower heat losses. An innovation are the vertical comb busbars, allowing for a completely new way of connecting devices in several rows of the switchgear.

• making vertical connections between 4-pole residual current devices (connection on the left side, from the top of the apparatus)
• making vertical connections between 3-pole overcurrent circuit breakers (connection on the left or right side, from the bottom of the apparatus)
• 2- or 3-row versions
• distance between switchgear rows: 125 mm
• rated current: 63A
• section: 10 mm²
• grommets for conducting wires to cage terminals of devices (up to 16 mm² wire, up to 10 mm² stranded wire with 18 mm ferrule cable terminal)

Number of poles

1
Number of modules

57

Rated current [A]

80
PKWIU

27.33.13.0

Other technical data

Number of phases

1
Suitable for number of devices

57
Cross section

16 mm²
Rated permanent current Iu

80 A
Insulated

Yes
Max. rated operation voltage Ue

415 V
Suitable for devices with auxiliary switch

No

Number of poles

1
Module width

17.8 mm
Length

1000 mm
Type of electric connection

Fork
Rated surge voltage

4.5 kV
Suitable for devices with N-conductor

No

A kind of package		Karton	Paleta
Quantity	1 pcs.	50 pcs.	600 pcs.
Weight (kg)	0,284	14,444	196,328
Width (m)	0,015	0,110	0,800
Length (m)	0,018	0,085	0,930
Depth (m)	1,000	1,007	1,200
