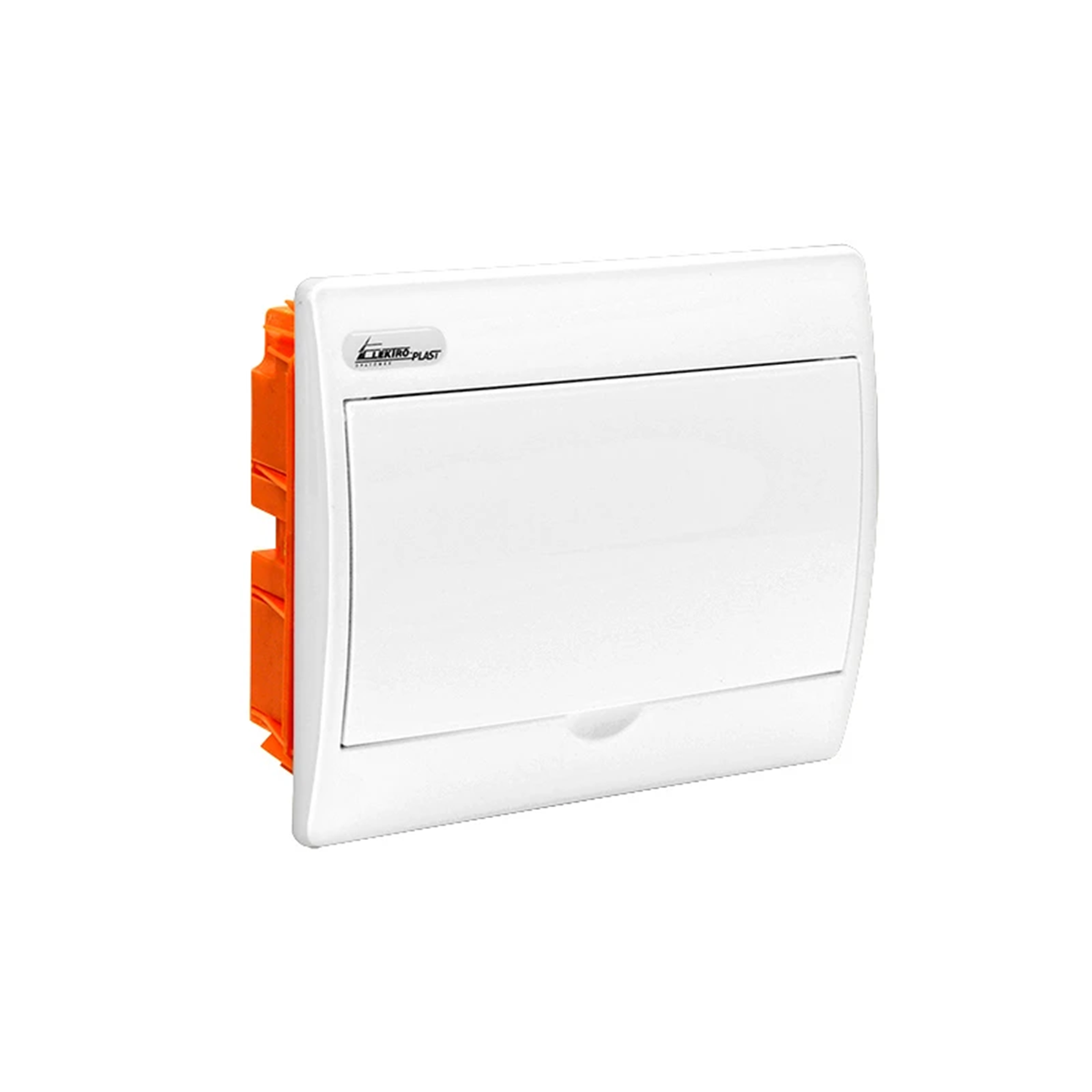

Flush-mounted switchgear RP-8/B Fala (N+PE) 8.12

local index:
RIP001ELOP
Catalog No:
8.12
EAN code:
5905548285641
Depth [mm]: 74
Number of modules: 8
Width [mm]: 234
Price:
8,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switchboards are made of high-quality plastic. They are adapted for indoor use. The switchgears have a closed box casing and are suitable for sealing. In the side parts of the housing there are embossments for easy insertion of cables or installation pipes. Switchboards are provided with descriptive labels. They also have N+PE terminal strips. The mounting element in the switchgear is the TH 35/7.5 (Eurorail) bracket, which allows the installation of overcurrent protection devices, residual current devices and other electrical devices. According to the applicable standards, switchgears should be placed on fire-retardant walls by appropriately qualified persons

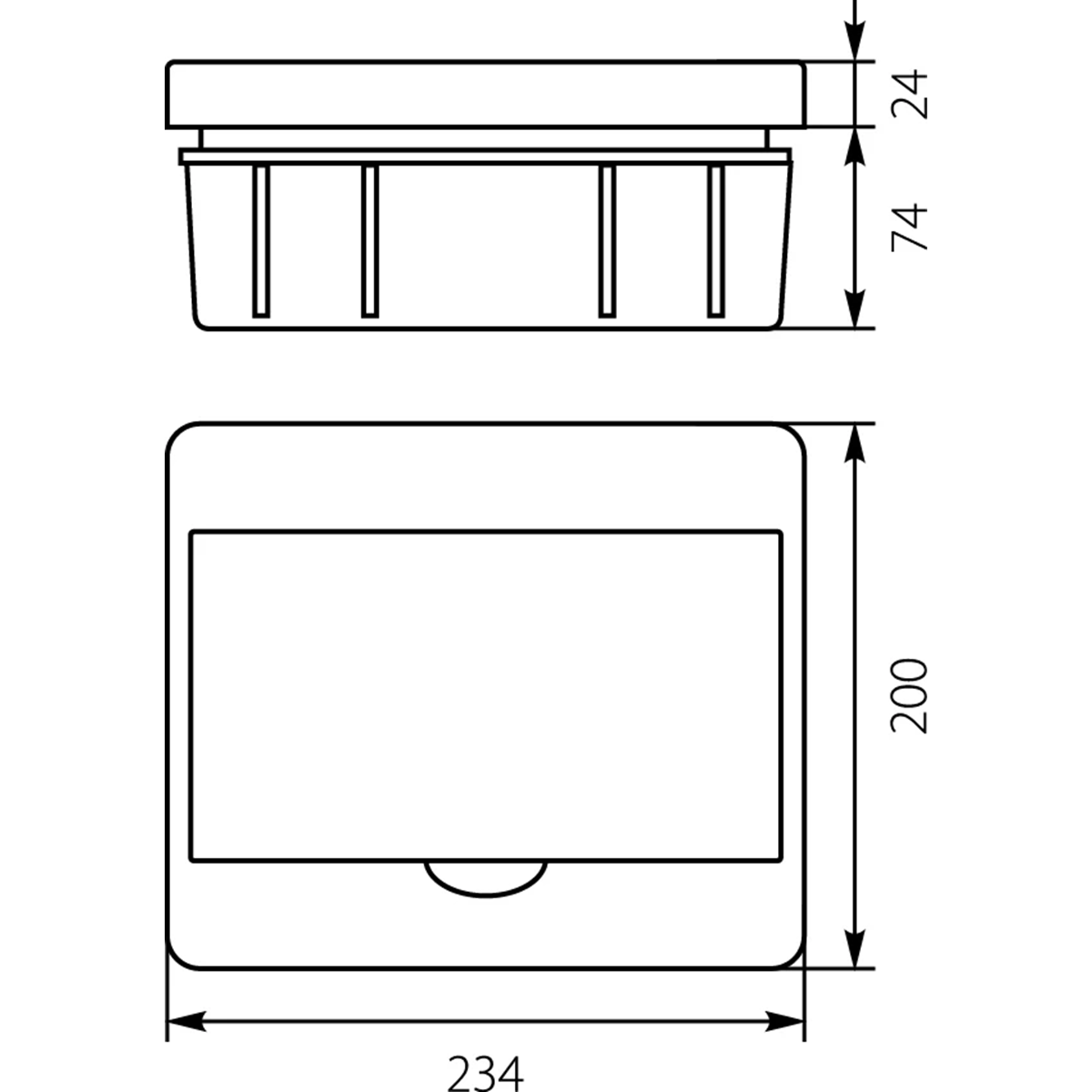

Technical data

  • Depth [mm]
    74
  • Width [mm]
    234
  • PKWIU
    27.12.31.0
  • Number of modules
    8
  • Height [mm]
    200

Other technical data

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    8
  • Cover model
    With notch
  • Housing material
    Plastic
  • Width
    234 mm
  • Built-in depth
    74 mm
  • DIN-rail
    Yes
  • Extension possible
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Type of closure
    Push button
  • Number of rows
    1
  • Type of covering
    Door
  • Transparent cover/door
    No
  • Height
    200 mm
  • Depth
    98 mm
  • Inner depth
    71 mm
  • With mounting plate
    No
  • EMC-version
    Yes
  • RAL-number
    9003
  • With lock
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,500 -
Width (m) - 100,000
Length (m) - 236,000
Depth (m) - 202,000
