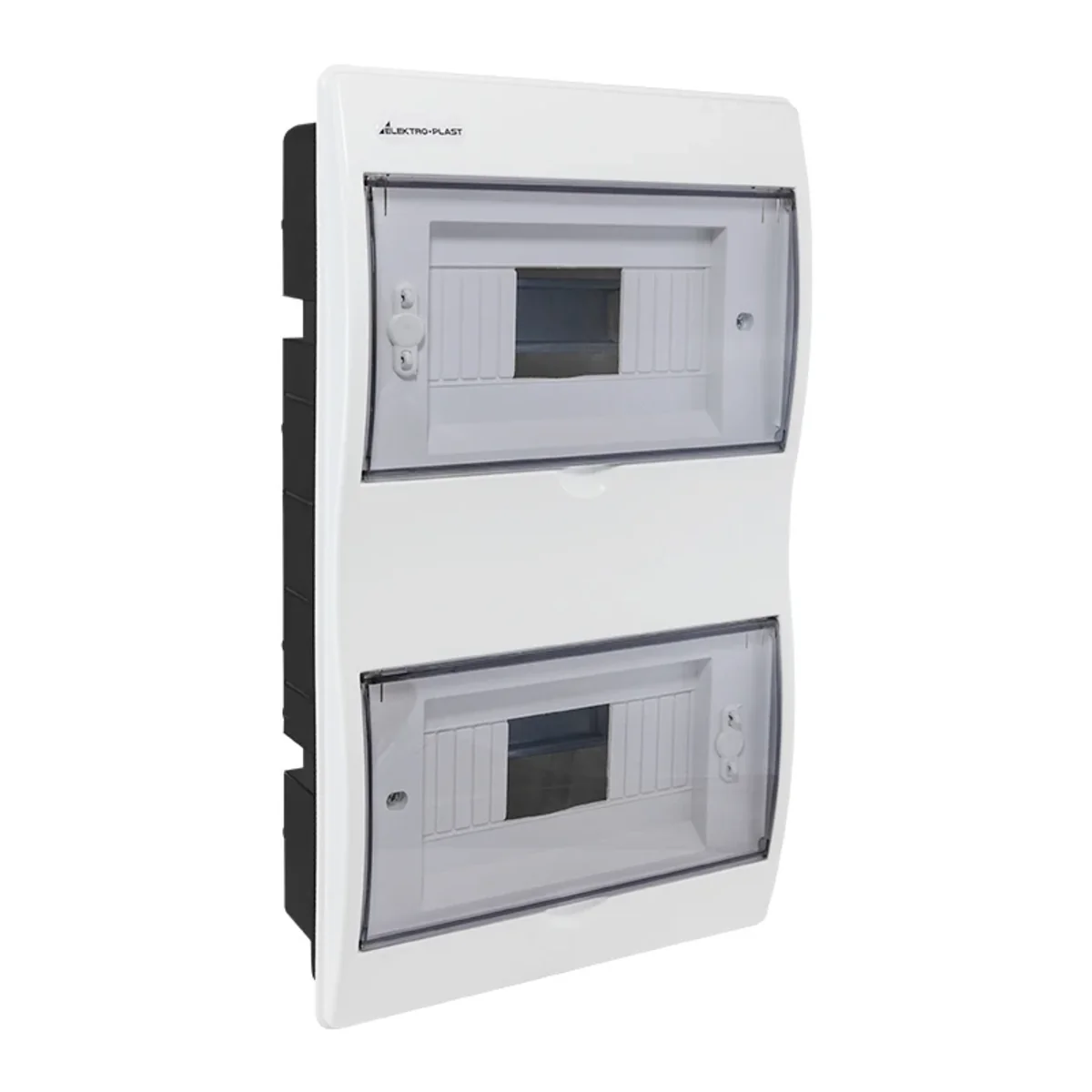

Flush-mounted switchgear RP-16 Fala (N+PE) 8.4

Lokaler Index:
RIP013ELOP
Katalognummer:
8.4
EAN-Code:
5905548280530
Depth [mm]: 84
Number of modules: 16
Number of rows: 2
Preis:
16,47 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
Zugänglich 26 stk.
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Switchboards are made of high-quality plastic. They are adapted for indoor use. The switchgears have a closed box casing and are suitable for sealing. In the side parts of the housing there are embossments for easy insertion of cables or installation pipes. Switchboards are provided with descriptive labels. They also have N+PE terminal strips. The mounting element in the switchgear is the TH 35/7, 5 (Eurorail) bracket, which allows the installation of overcurrent protection devices, residual current devices and other electrical devices. According to the applicable standards, switchgears should be placed on fire-retardant walls by appropriately qualified persons

Technische Daten

  • Depth [mm]
    84
  • Number of rows
    2
  • Level of security
    IP40

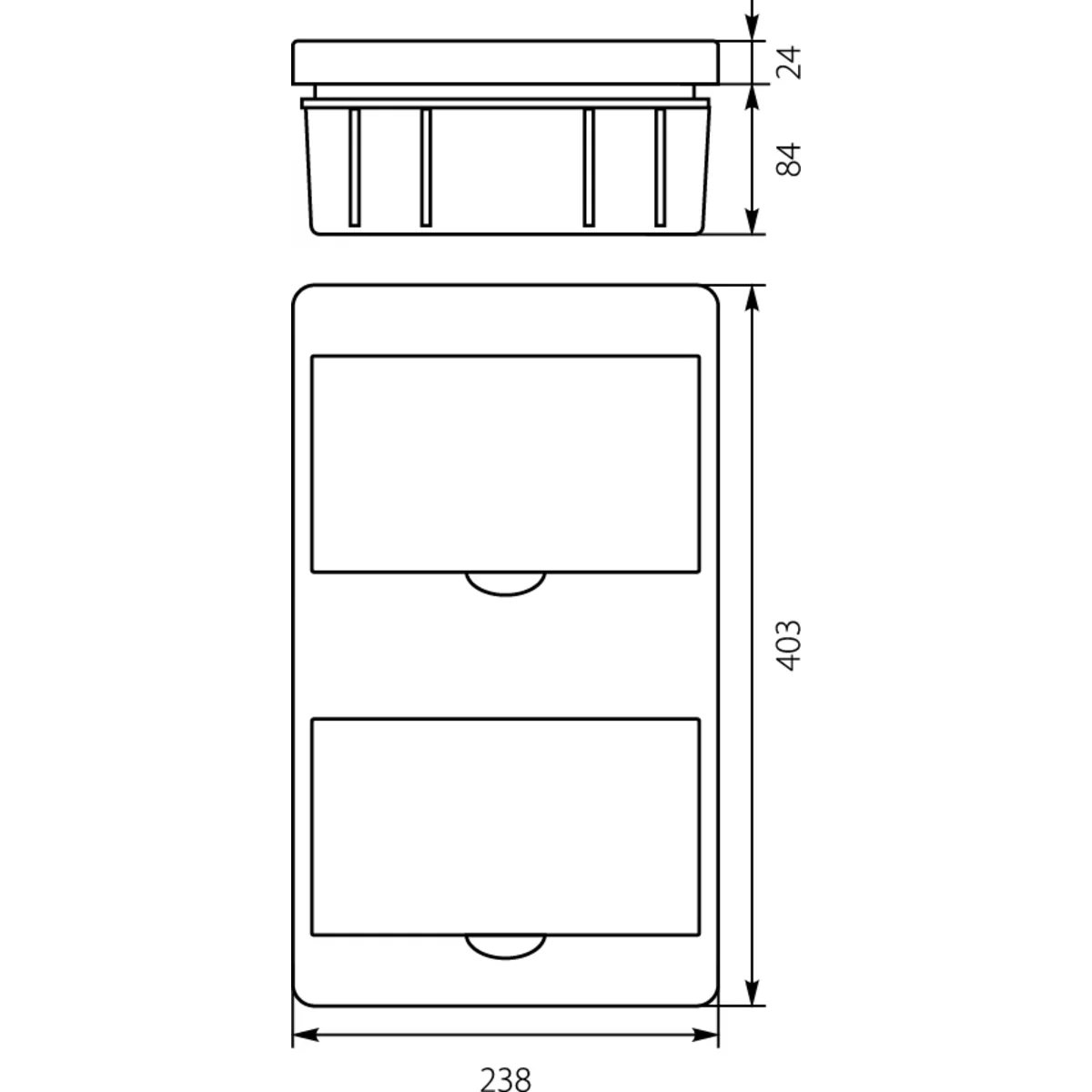

  • Height [mm]
    403
  • Number of modules
    16
  • Material
    Plastic
  • Width [mm]
    238
  • PKWIU
    27.12.31.0

Weitere technische Daten

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    8
  • Cover model
    With notch
  • Housing material
    Plastic
  • Width
    238 mm
  • Built-in depth
    84 mm
  • DIN-rail
    Yes
  • Extension possible
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Type of closure
    Push button
  • Number of rows
    2
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    403 mm
  • Depth
    108 mm
  • Inner depth
    81 mm
  • With mounting plate
    No
  • EMC-version
    Yes
  • RAL-number
    9003
  • With lock
    No

Hersteller-Details

  • Hersteller
    Z.P.H. ELEKTRO-PLAST Sp. z o.o.
  • Adresse
    62-860 Opatówek Rogatka 14 Polska
