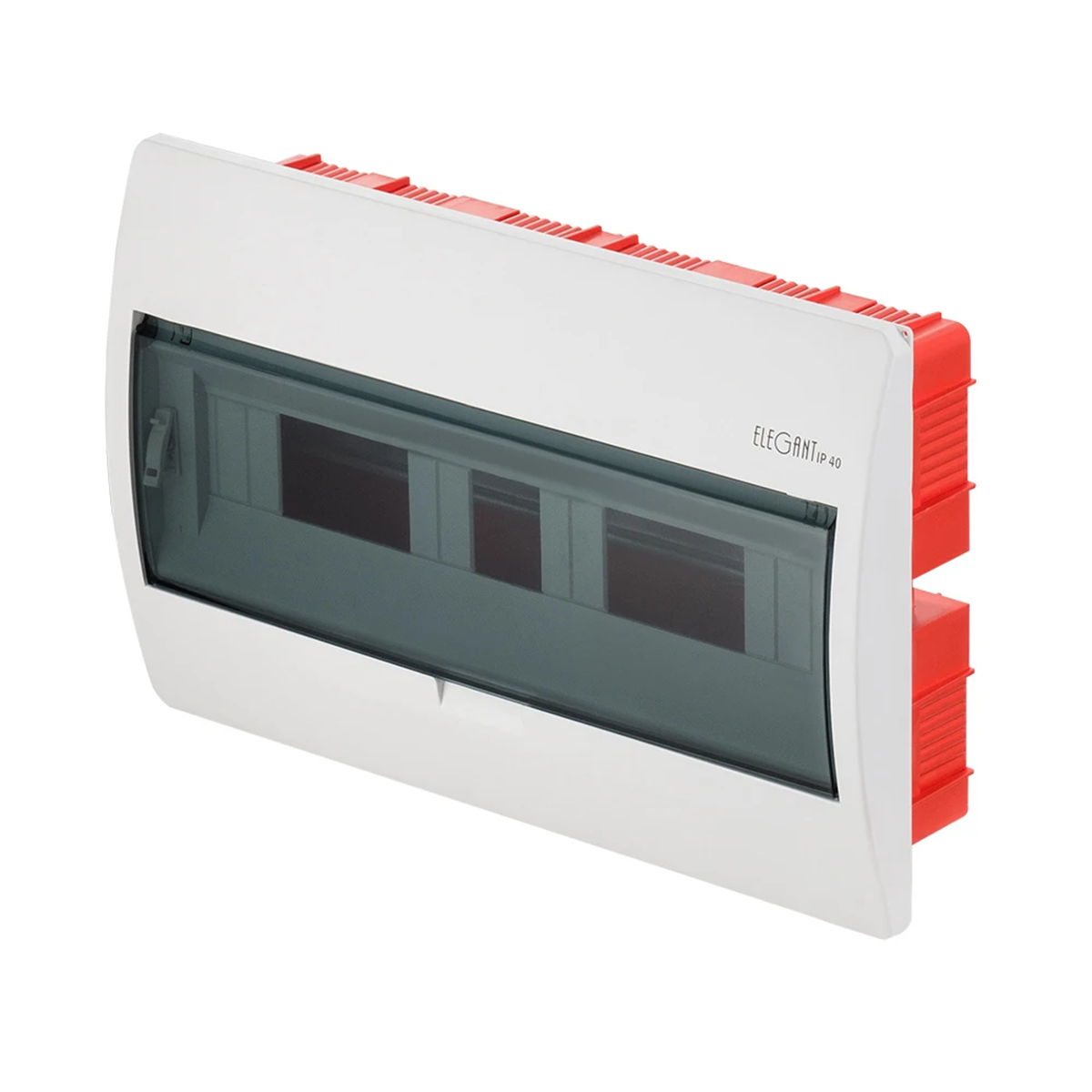

Flush-mounted distribution board ELEGANT EP-pt 1/18 IP 40 - white 2414-01

Index local:
RIP004ELNA
Numéro de catalogue:
2414-01
Code EAN:
5902431692265
Depth [mm]: 106
Number of modules: 18
Number of rows: 1
Prix:
15,45 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 2 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer

Description du produit

Switchboards are made of high-quality plastic. They are adapted for indoor use. They have a closed box housing, are suitable for sealing and have N+PE terminal strips. In the side parts of the housing there are embossments for easy insertion of cables or installation pipes. The mounting element in switchgears is the TH 35/7, 5 (Eurorail) bracket, which allows the installation of overcurrent protection devices, residual current devices and other electrical devices.

Model: ELEGANT EP-pt 1/18
Product type: Flush-mounted switchgear
Application: Indoors
Max. wire cross-section (mm²): 10

Données techniques

  • Depth [mm]
    106
  • Number of rows
    1
  • Material
    ABS
  • Width [mm]
    410
  • PKWIU
    27.12.31.0
  • Number of modules
    18
  • Color
    White
  • Level of security
    IP40
  • Height [mm]
    260
