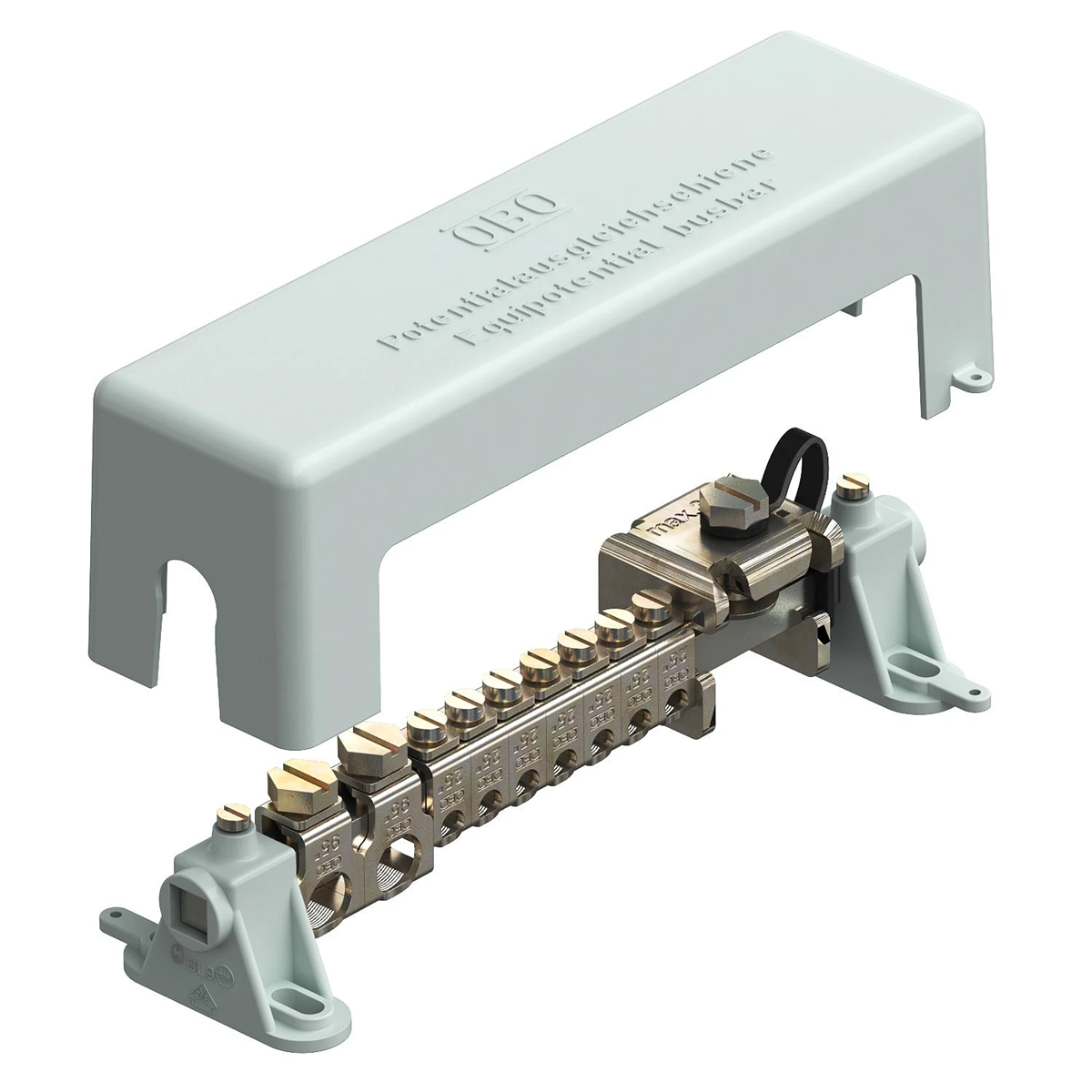

Equipotential bonding bar for equipotential bonding in accordance with DIN VDE 0100-410/-540 and lightning equipotential bonding in accordance with DIN VDE 0185-305
Connection possibilities:
• 7 x single or stranded cable 2.5-25 [mm]² or rope up to 16 [mm]² (max. Ø 7 [mm])
• 2 x solid or stranded cable 25-95 [mm]² or rope up to 70 [mm]² (max. Ø 13.5 [mm])
• 1 x flat bar 30 x 3.5 [mm]
• Conforms to VDE 0618 Part 1
• With terminal block 10 x 10 [mm] in brass, nickel-plated
• With terminals made of steel, electro-galvanised
• Gray polystyrene cover and brackets
• Lightning discharge capacity 100 kA (10/350)
• Screw protection of the strip against loosening (required, e.g. in industry, in Ex zones)

Color

Gray
PKWIU

27.33.13.0

Accurate color

Gray

Manufacturer details

Manufacturer

OBO Bettermann Polska Sp. z o.o.
Address

02-495 Warszawa Kazimierza Gierdziejewskiego 7
Tax identification number

5211001039
GLN

5900009931563

A kind of package	Skrzynia	Karton	Paleta
Quantity	1 pcs.	10 pcs.	500 pcs.
Weight (kg)	0,596	6,215	333,250
Volume (m3)	0,001	0,013	0,912
Width (m)	0,069	0,220	0,800
Length (m)	0,071	0,370	1,200
Depth (m)	0,220	0,155	0,950
