EBR 4-15/125 distribution block R33RA-02020200301
local index:
RRR166ERGO
Catalog No:
R33RA-02020200301
EAN code:
5900003355068
Manufacturer:
ERGOM
short name: EBR 4-15/125
Price:
13,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

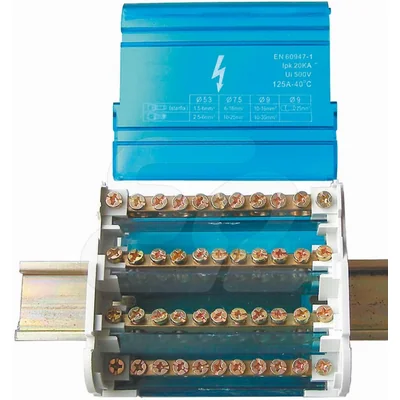

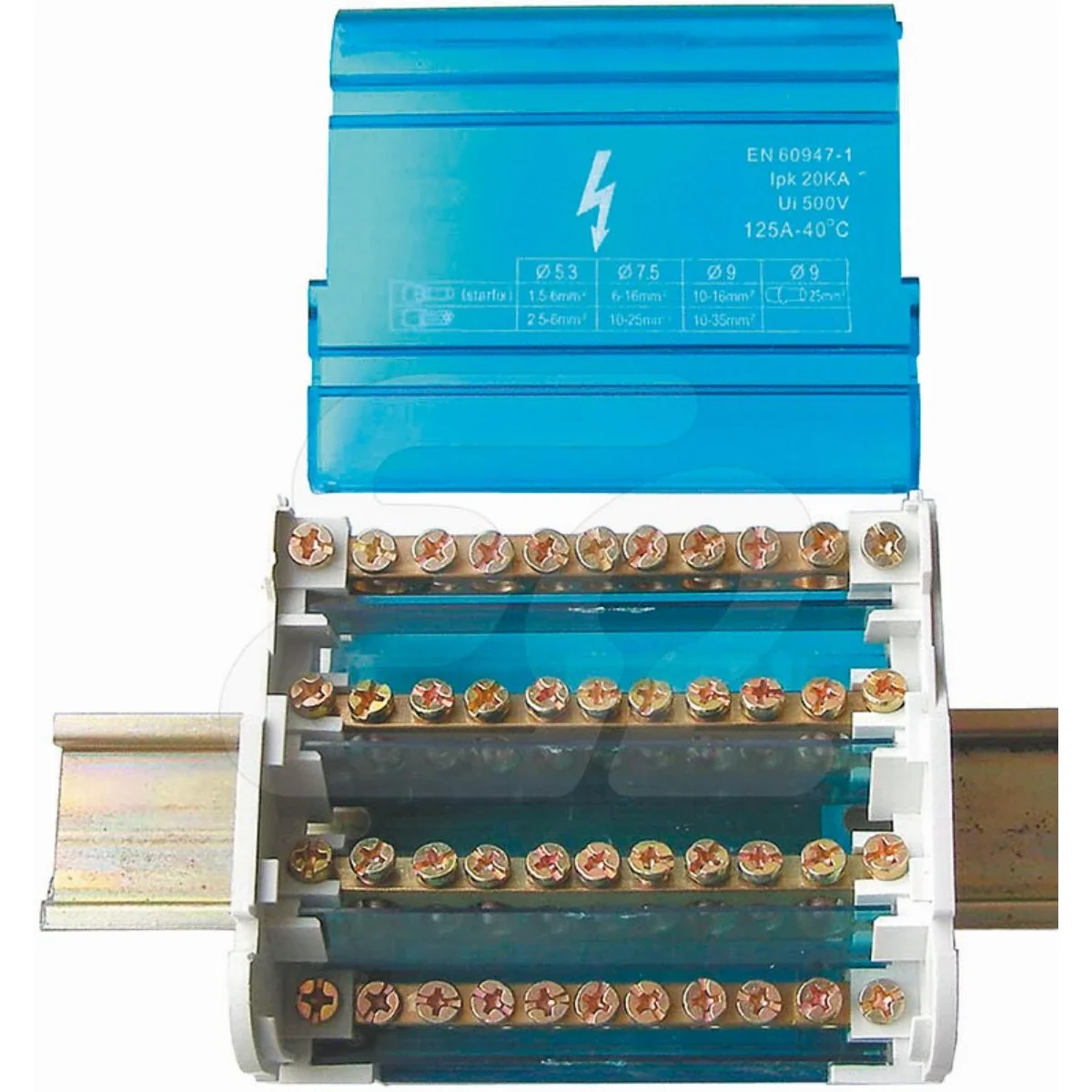

EBR 4-15/125 distribution block
Technical data
-
short nameEBR 4-15/125
-
PKWIU27.90.33.0
Other technical data
-
Height50 mm
-
Depth87 mm
-
Number of poles4
-
Conductor cross section solid (solid, stranded)2.5 ... 35 mm²
-
With PE-railNo
-
Width136 mm
-
Max. rated current125 A
-
Conductor cross section flexible (fine-strand) with cable end sleeve1.5 ... 16 mm²
-
Number of clamp positions per pole15
-
With N-railYes
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pcs. |
| Weight (kg) | 0,449 |
| Width (m) | 0,100 |
| Length (m) | 0,100 |
| Depth (m) | 0,100 |
