DW 40RM cable gland E03DK-01170200603

local index:
RRR124ERGO
Catalog No:
E03DK-01170200603
Manufacturer: ERGOM
Gross length: 0.3
short name: DW 40RM
Gross width: 0.15
Price:
5,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

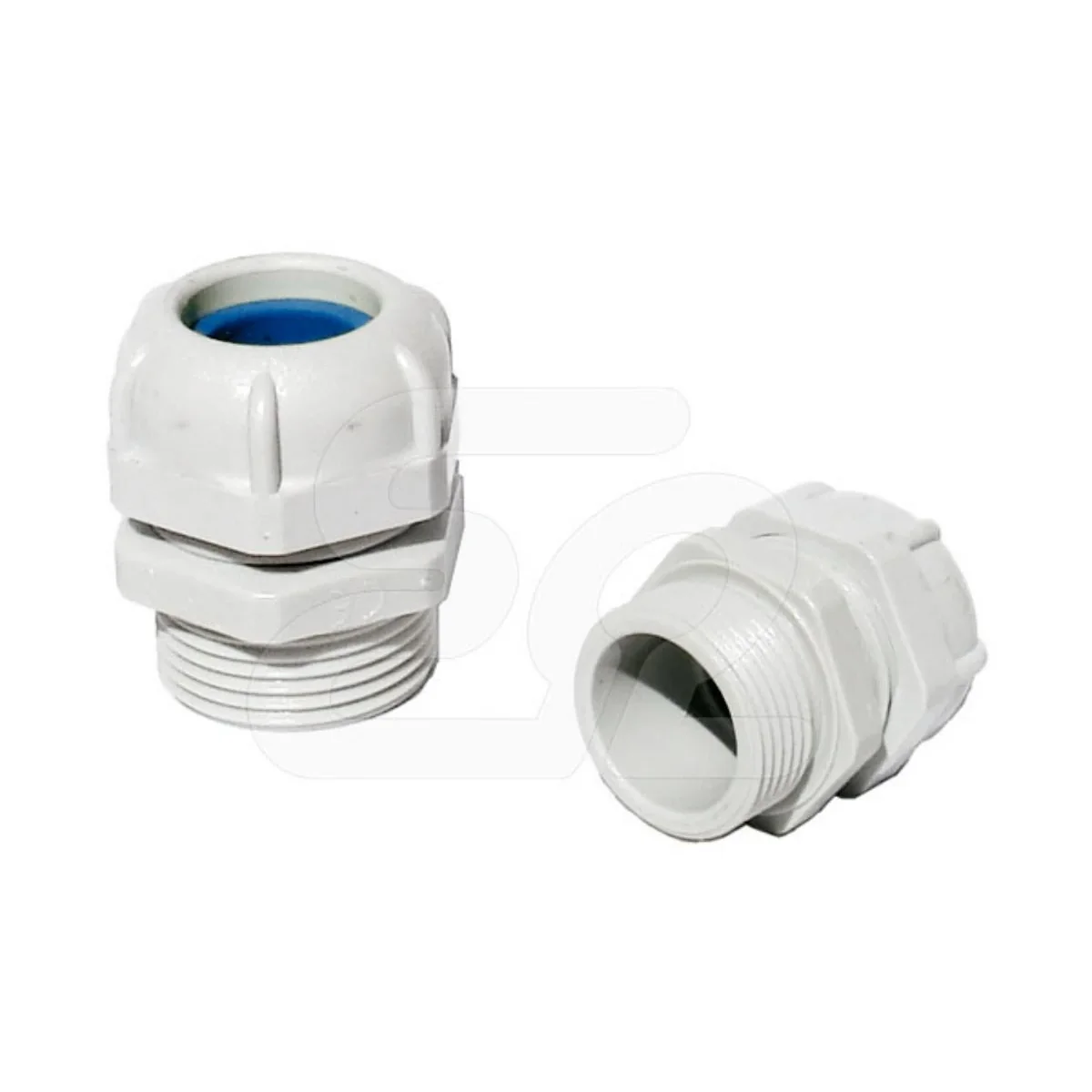

DW 40RM cable gland

Technical data

  • Gross length
    0.3
  • Gross width
    0.15
  • PKWIU
    22.21.29.0
  • short name
    DW 40RM
  • Gross height
    0.02

Other technical data

  • Thread type
    Metric
  • Thread length
    13 mm
  • Suitable for cable diameter
    21 ... 32 mm
  • Material quality
    Polyamide (PA)
  • Halogen free
    No
  • Degree of protection (IP)
    IP66
  • Bend radius protection/trumpet flare
    No
  • Model
    Straight
  • Flat cable coupling
    No
  • Type of sealing
    Sealing ring
  • Operating temperature
    -20 ... 80 °C
  • For Ex-zone gas
    None
  • Nominal thread size metric/PG
    40
  • Wrench width
    52 mm
  • Material
    Plastic
  • Surface protection
    Untreated
  • Glass-fibre reinforced
    No
  • Shock resistant
    Yes
  • With locknut
    No
  • Multi seal area
    No
  • With strain relief
    No
  • Separable screw gland
    Yes
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None

Bulk packaging

A kind of package Sztuka
Quantity 10 pcs.
