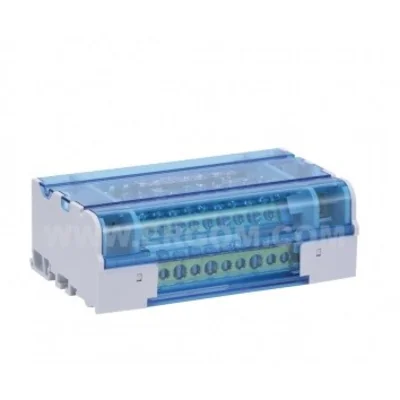

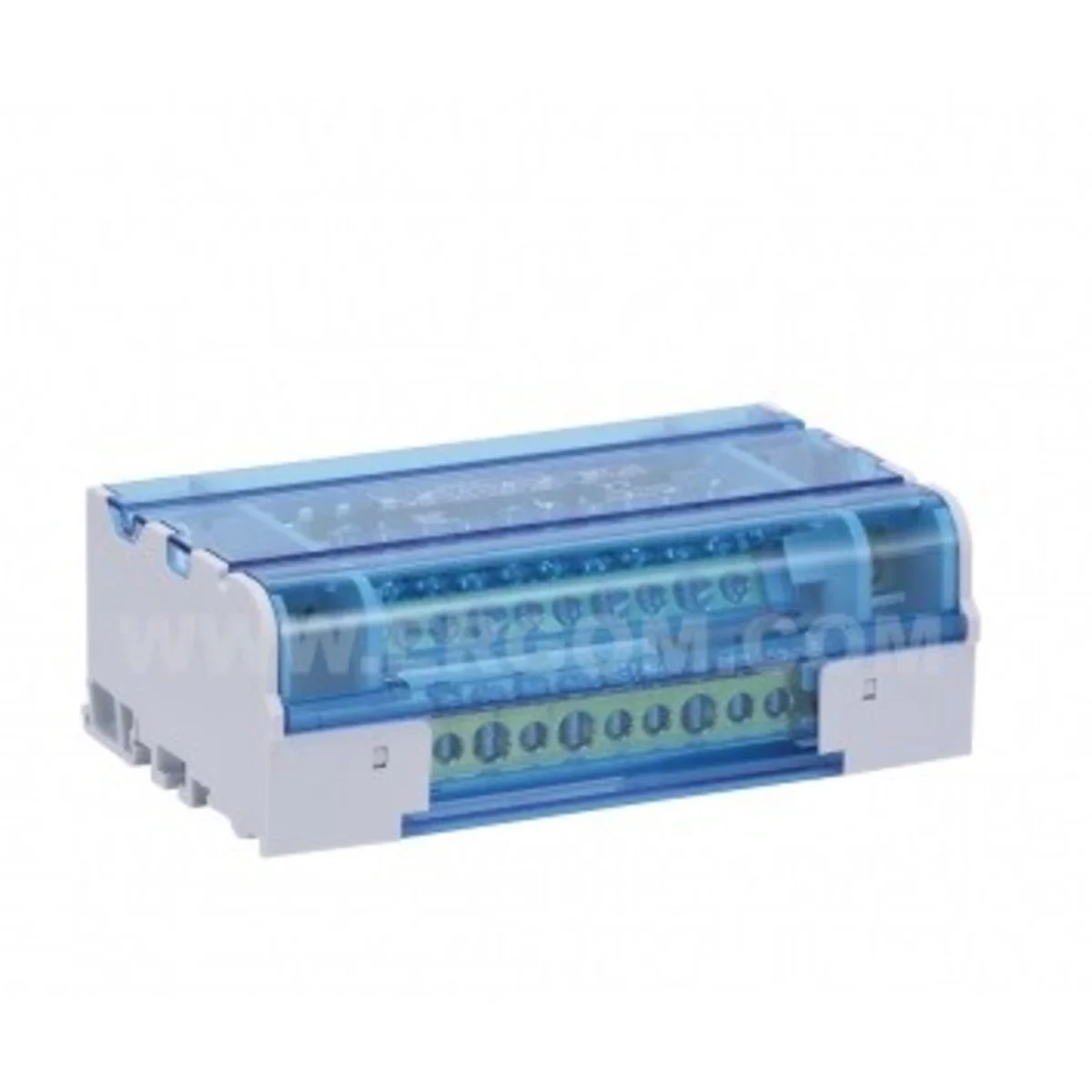

Distribution blocks type EBR2 500V - EBR2 4-11/125​​​​​​​

Click on the photo to enlarge

Distribution blocks type EBR2 500V - EBR2 4-11/125​​​​​​​
ERGOM

Distribution blocks type EBR2 500V - EBR2 4-11/125​​​​​​​ R33RA-02020300301

local index:
RRR067ERGO
Catalog No:
R33RA-02020300301
EAN code:
5900003721214
Price:
38,65 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 34 pcs.
Delivery:
From 3,47 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details
Go to section:
Product description Technical data

Product description

Distribution blocks type EBR2 500V - EBR2 4-11/125 from the manufacturer ERGOM. The product catalog number is R33RA-02020300301 .

  • Mounting: on TSE 35 rail or with screws to the substrate (2 Ø5 holes).
  • Clamp hole diameter (for 1 track) [mm]: 1x9+3x7.5+7x5.3.
  • Cross-sections of connected cables - cords without endings (for 1 track): 1x10÷25+3x6÷16+7x1.5÷6.
  • Sections of connected wires - stranded wires with HI termination (for 1 track): 1x10÷35+3x10÷25+7x2.5÷6.
  • Rated continuous current In 40° C [A]: 125.
  • Ipk [kA]: 20.
  • Transparent cover for optical control of the condition of the wires polycarbonate covers between the strips.
  • Application : LV switchboards.
Print the product sheet Report an error

Technical data

  • Length [mm]
    85
  • Material
    PC
  • Tightening torque [Nm]
    2
  • Clamp type
    Threaded
  • Height [mm]
    50
  • Number of tracks
    4
  • conductive material
    Brass
  • Rated insulation voltage [V]
    500
  • Width [mm]
    145
  • Insulation material
    Polyamide

Other technical data

  • Height
    85 mm
  • Depth
    50 mm
  • Number of poles
    4
  • Conductor cross section solid (solid, stranded)
    2.5 ... 35 mm²
  • With PE-rail
    no
  • Width
    140 mm
  • Max. rated current
    125 A
  • Conductor cross section flexible (fine-strand) with cable end sleeve
    1.5 ... 25 mm²
  • Number of clamp positions per pole
    11
  • With N-rail
    no
