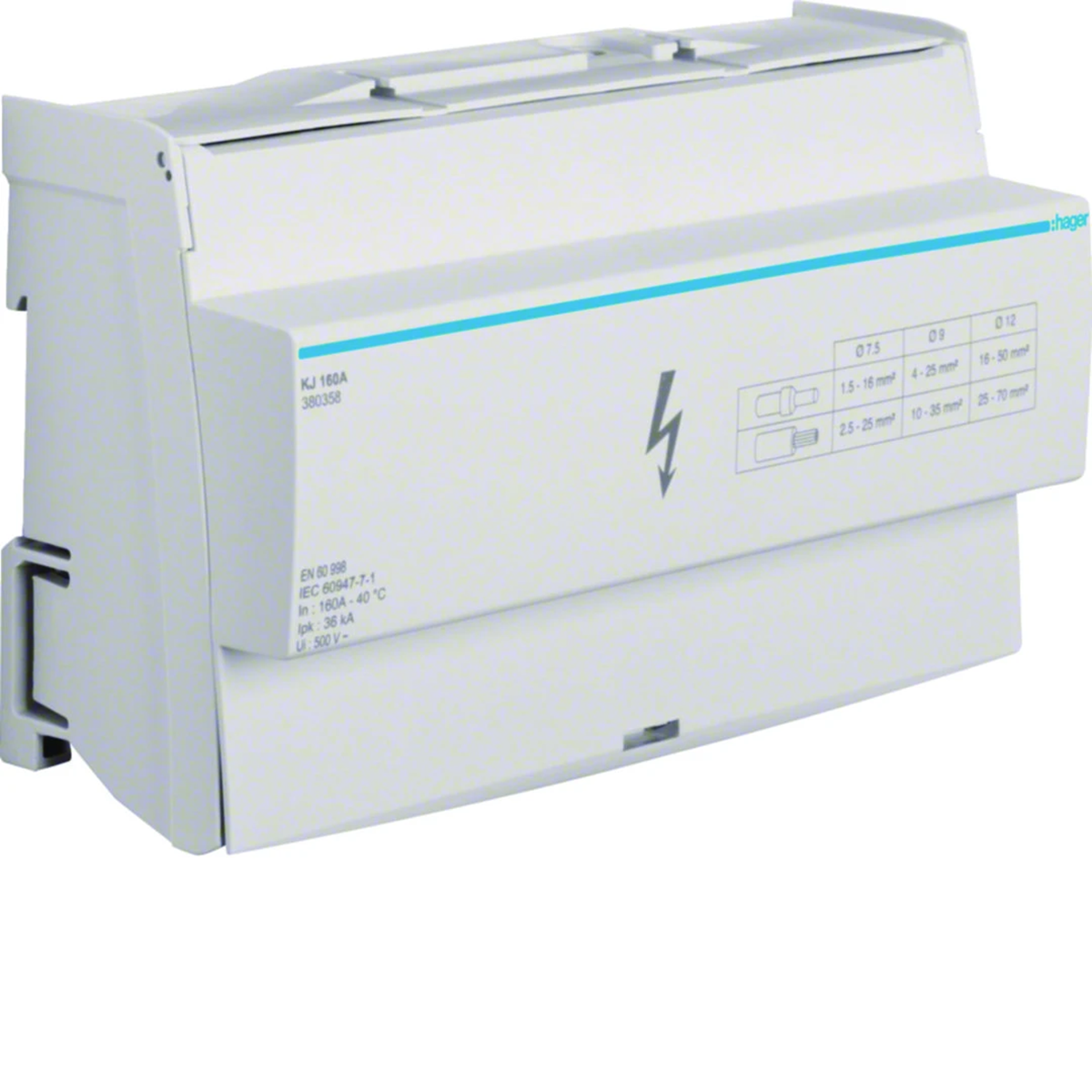

Distribution block 4-pole In= 160 A KJ160A

local index:
RRR323HAGE
Catalog No:
KJ160A
EAN code:
3250613803582
Manufacturer: HAGER
Number of poles: 4
Rated current [A]: 160
Width [mm]: 162
Price:
96,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Distribution blocks in plastic enclosures

  •  mounting on a TS35 rail or on a mounting plate,
  •  single versions , two- or four-pole,
  •  removable covers for multi-pole versions,
  •  various combinations of the number and cross-section of screw terminals,
  •   ;the permissible load current depends on the ambient temperature.

Technical data

  • Number of poles
    4
  • Width [mm]
    162
  • PKWIU
    27.33.13.0
  • Rated current [A]
    160
  • Height [mm]
    96

Other technical data

  • Height
    96 mm
  • Depth
    44 mm
  • Number of poles
    4
  • Width
    162 mm
  • Max. rated current
    160 A

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 12 pcs. 288 pcs.
Weight (kg) 0,629 0,630 7,940 213,560
Width (m) 0,100 0,115 0,318 0,800
Length (m) 0,040 0,070 0,211 0,994
Depth (m) 0,165 0,185 0,372 1,200
