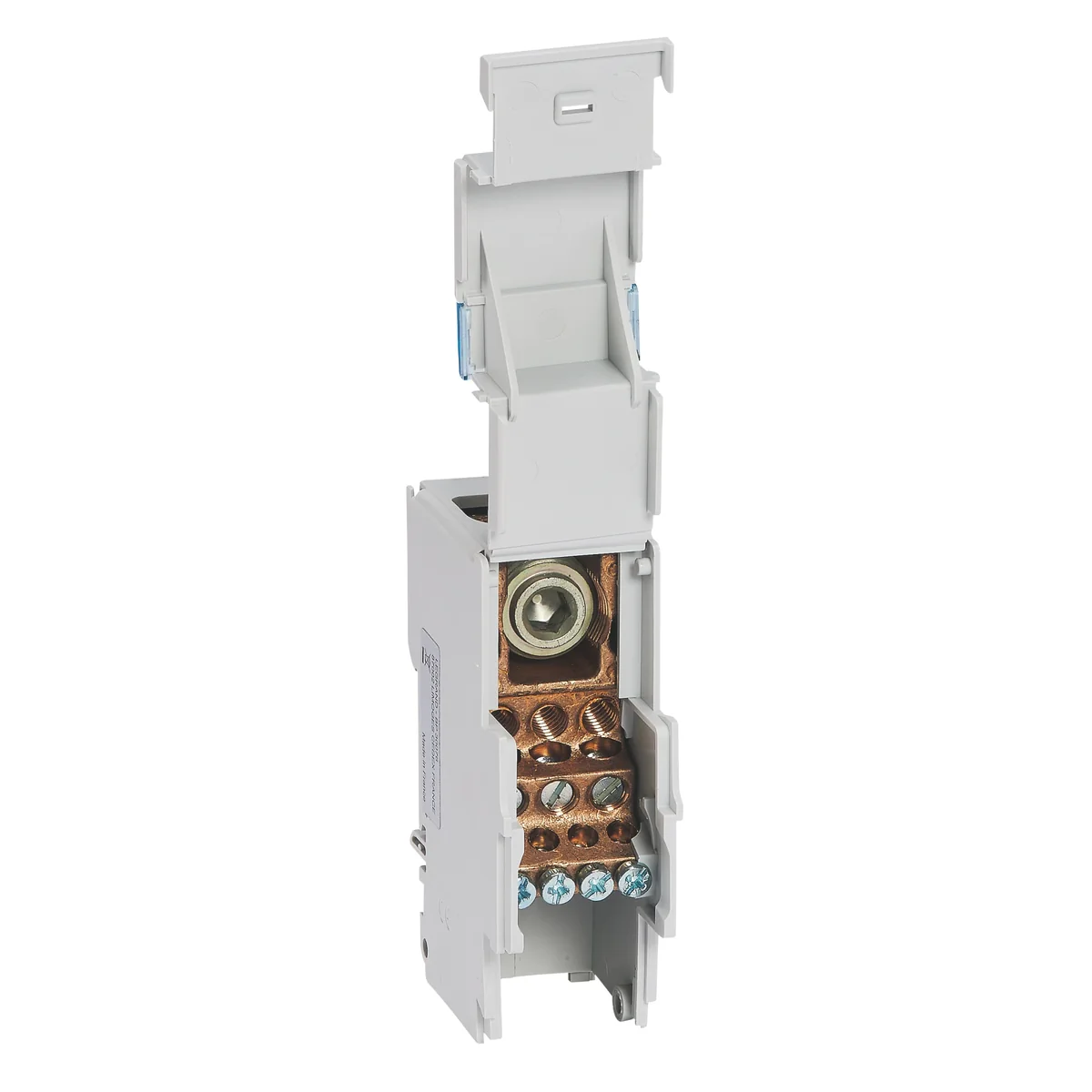

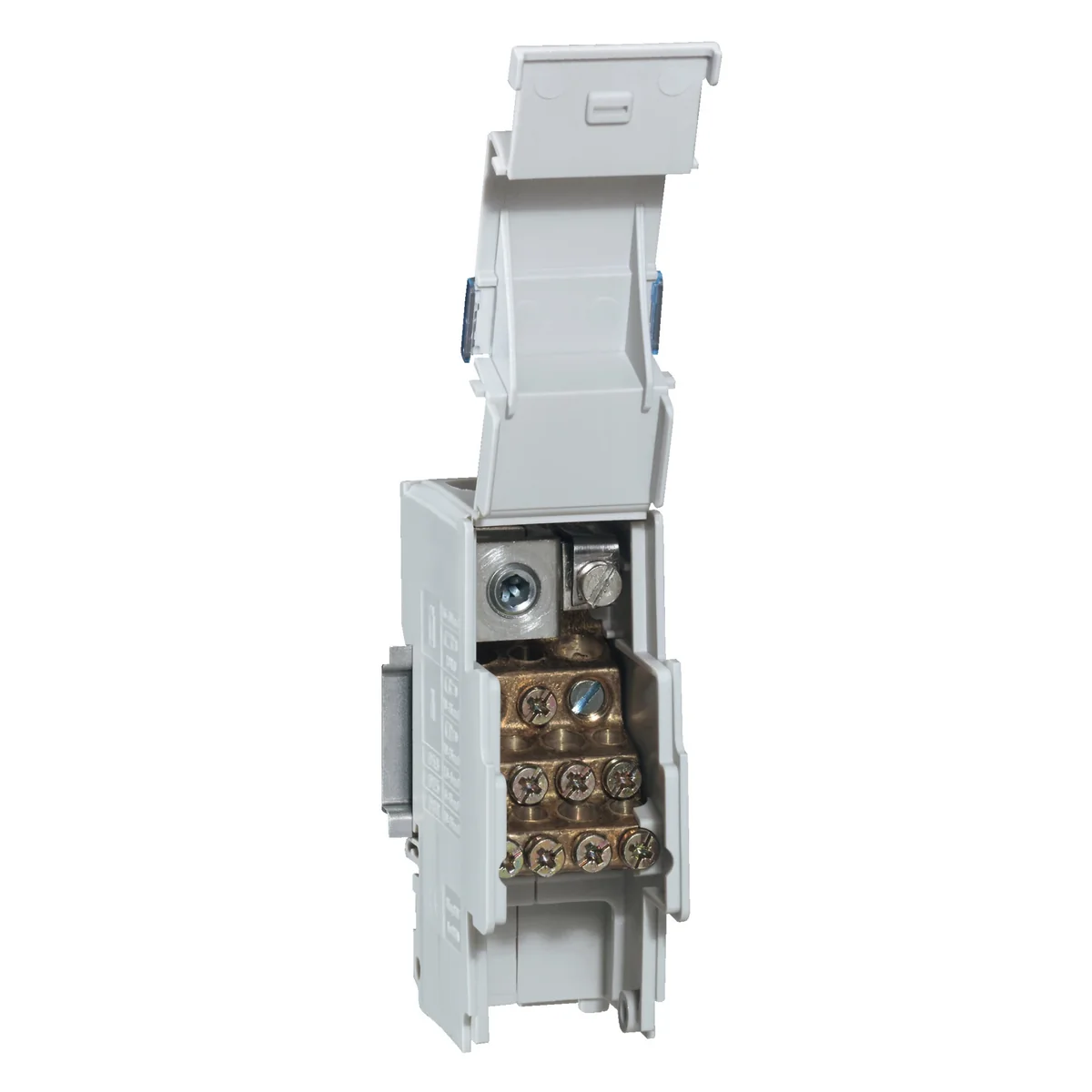

Distribution block 1 pole 250 A

Modular distribution blocks from 40 to 250 A
'Standard' power distribution
Wire connection possible with or without Starfix cable lugs
Self-extinguishing material 960 °C according to EN 60695-2-11.

Product parameters

Single-pole distribution blocks
Mounting on a symmetrical rail
Equipped with a window for the installation description
Can be connected together
It is possible to build a four-pole distribution block by adding modules
Current rating: 250 A
Ipk: 60 (kA)
Width in 17.5 mm modules: 2

Installation

On the TH-35 rail

PKWIU

27.12.40.0

Other technical data

Nominal current

250 A
Mounting method

DIN rail
Height

104.5 mm
Depth

44 mm

Connection type

Screwing
Contact safe

Yes
Width

36 mm

Manufacturer details

Manufacturer

Legrand Polska Sp. z o.o.
Address

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-mail

info@legrand.com.pl

A kind of package	Pudełko	Karton	Paleta
Quantity	4 pcs.	20 pcs.	800 pcs.
Weight (kg)	1,282	6,412	256,480
Volume (m3)	0,002	0,015	0,800
Width (m)	0,118	0,303	1,200
Length (m)	0,102	0,126	0,667
Depth (m)	0,154	0,398	1,000
