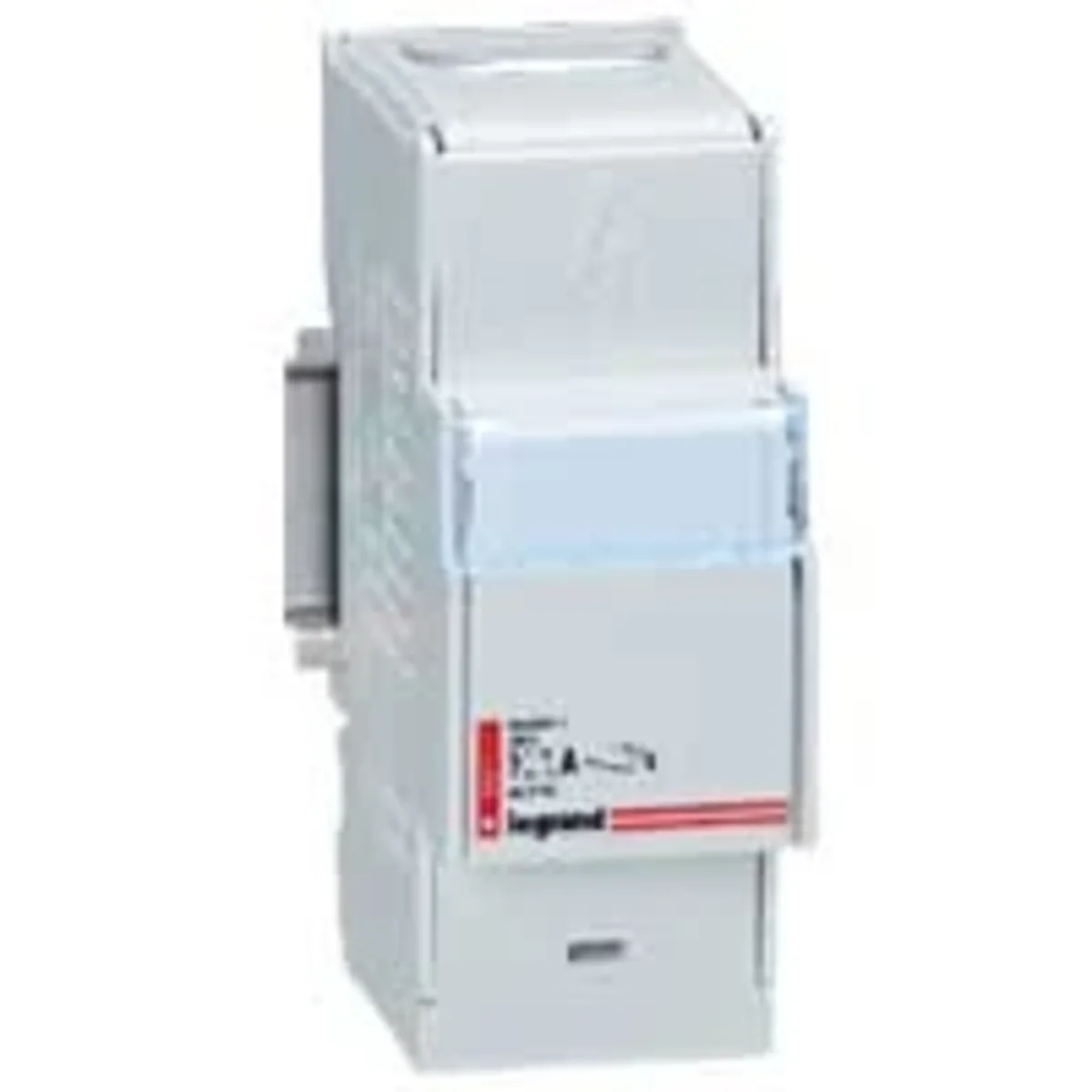

Distribution block 1 pole 125A

Modular distribution blocks from 40 to 250 A
'Standard' power distribution
Wire connection possible with or without Starfix cable lugs
Self-extinguishing material 960 °C according to EN 60695-2-11.

Product parameters

Single-pole distribution blocks
Mounting on symmetrical rail
Equipped with a window for installation description
Can be connected together
It is possible to build a four-pole distribution block by adding modules
Current rating: 125 A
Ipk: 35 (kA)

Installation

On the TH-35 rail

PKWIU

27.12.40.0

Other technical data

Nominal current

125 A
Mounting method

DIN rail
Height

104.5 mm
Depth

44 mm

Connection type

Screwing
Contact safe

Yes
Width

36 mm

Manufacturer details

Manufacturer

Legrand Polska Sp. z o.o.
Address

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-mail

info@legrand.com.pl

A kind of package	Pudełko	Karton	Paleta
Quantity	4 pcs.	20 pcs.	2400 pcs.
Weight (kg)	0,914	4,970	596,400
Volume (m3)	0,002	0,015	2,010
Width (m)	0,118	0,303	1,200
Length (m)	0,102	0,126	1,675
Depth (m)	0,154	0,398	1,000
