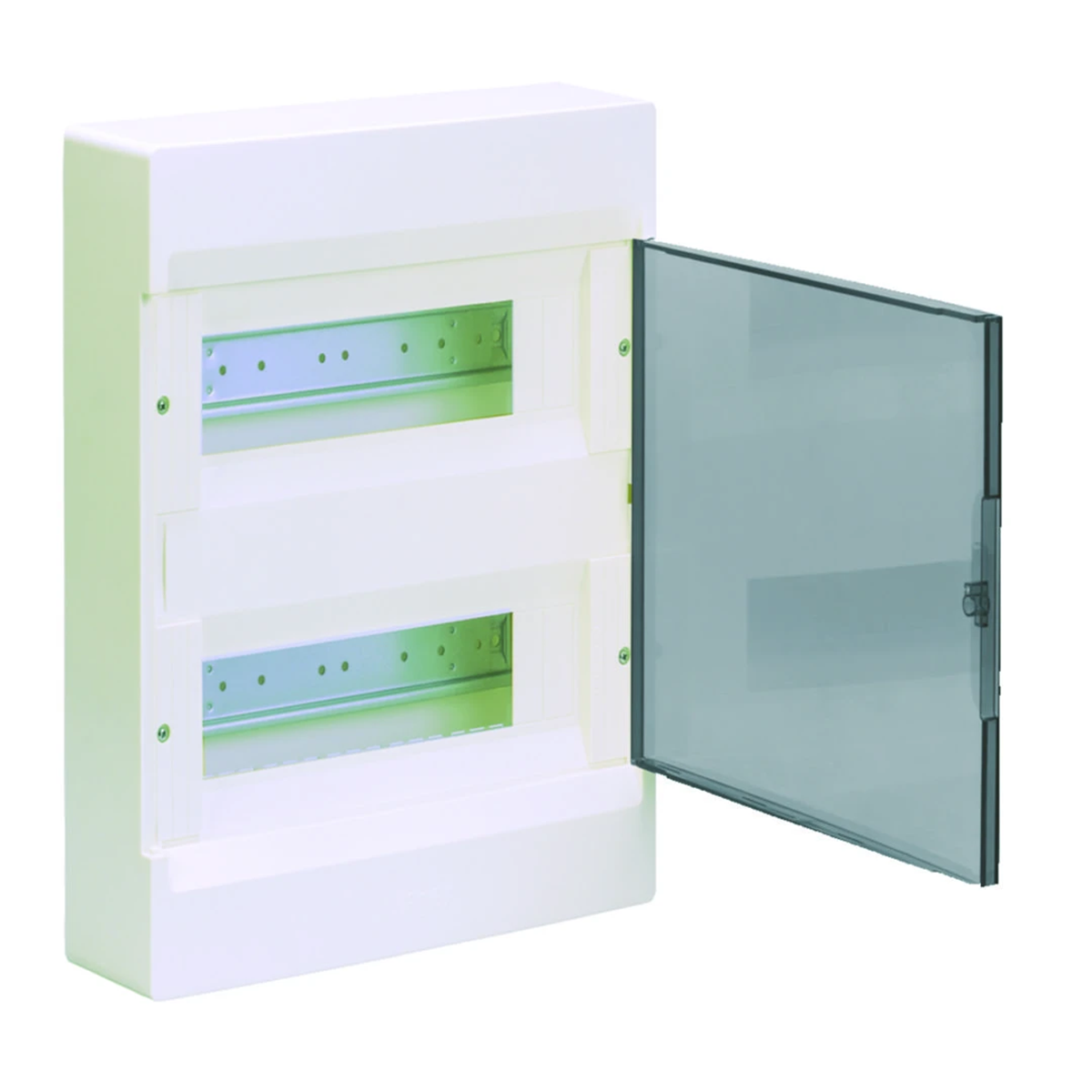

COSMOS Switchgear 2x12M n/t IP40 transparent door VD212TP

local index:
RIR027HAGE
Catalog No:
VD212TP
EAN code:
3250616468009
Manufacturer: HAGER
Depth [mm]: 92
Number of modules: 24
Number of rows: 2
Price:
27,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 19 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Surface-mounted switchgear cosmos series:

  • 2 rows/12 modules
  • transparent door
  • IP40

Technical data

  • Depth [mm]
    92
  • Number of rows
    2
  • Color
    White
  • Level of security
    IP40
  • Height [mm]
    326.5
  • Number of rows for cameras
    1
  • Number of modules
    24
  • Protection class
    II
  • Family
    COSMOS
  • Width [mm]
    294
  • Glow wire test [°C]
    650
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    24
  • Cover model
    Closed
  • Housing material
    Plastic
  • Width
    294 mm
  • Inner depth
    72 mm
  • With mounting plate
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Type of closure
    Other
  • Number of rows
    2
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    326.5 mm
  • Depth
    92.5 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • With lock
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 75 pcs.
Weight (kg) 1,043 1,100 107,500
Width (m) 0,294 0,300 0,800
Length (m) 0,326 0,100 1,080
Depth (m) 0,093 0,335 1,200
