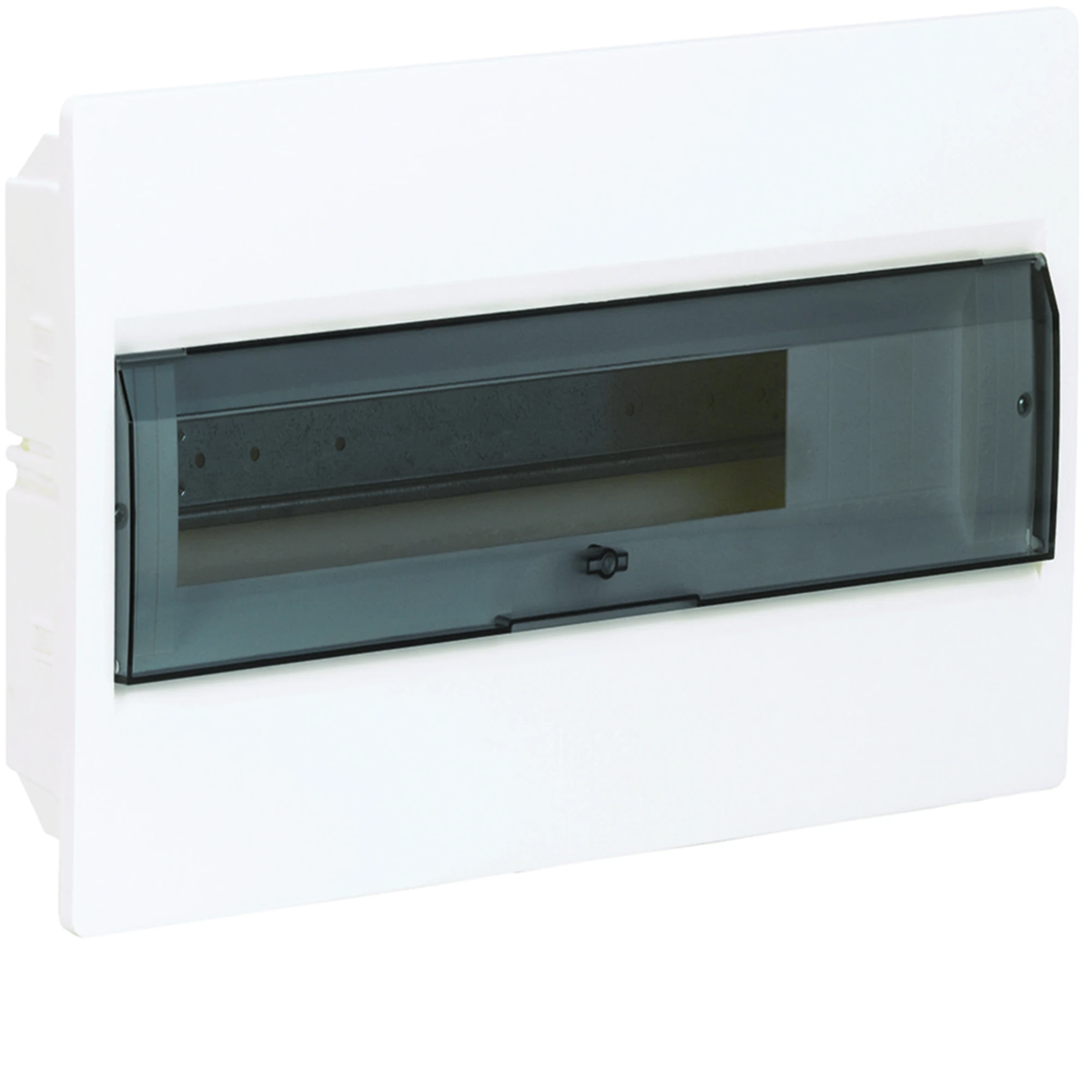

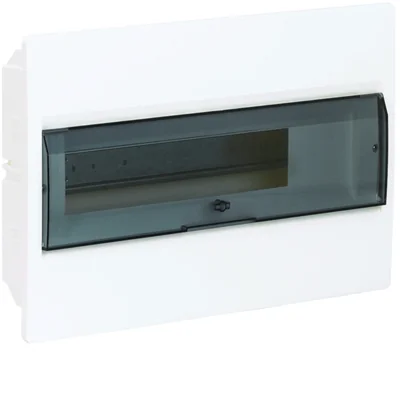

COSMOS Switchgear 1x18M p/t IP40 transparent door VR118TP

local index:
RIP046HAGE
Catalog No:
VR118TP
EAN code:
3250616468092
Manufacturer: HAGER
Depth [mm]: 91.4
Number of modules: 18
Number of rows: 1
Price:
26,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 12 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Flush-mounted switchgear series cosmos:

  • 1 row/18 modules
  • transparent door
  • IP40

Technical data

  • Depth [mm]
    91.4
  • Number of rows
    1
  • Color
    White
  • Family
    COSMOS
  • Width [mm]
    416
  • Glow wire test [°C]
    650
  • Number of modules
    18
  • Protection class
    II
  • Material
    Plastic
  • Level of security
    IP40
  • Height [mm]
    226
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    18
  • Cover model
    Closed
  • Housing material
    Plastic
  • Width
    416 mm
  • Built-in depth
    72 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • With lock
    No
  • Number of rows
    1
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    226 mm
  • Depth
    91.4 mm
  • Inner depth
    72 mm
  • With mounting plate
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Type of closure
    Other

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 79 pcs.
Weight (kg) 0,880 1,060 150,000
Width (m) 0,415 0,240 0,800
Length (m) 0,225 0,105 1,100
Depth (m) 0,095 0,425 1,200
