COSMOS Switchgear 1x18M p/t IP30 without door VR118NP

Indice locale:
RIN041HAGE
Numero di catalogo:
VR118NP
Codice EAN:
3250616468078
Produttore: HAGER
Depth [mm]: 91.4
Number of rows: 2
Protection class: II
Prezzo:
99,95 zł
gross / pezzi
(inclusa IVA 23%)
fino a 10 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

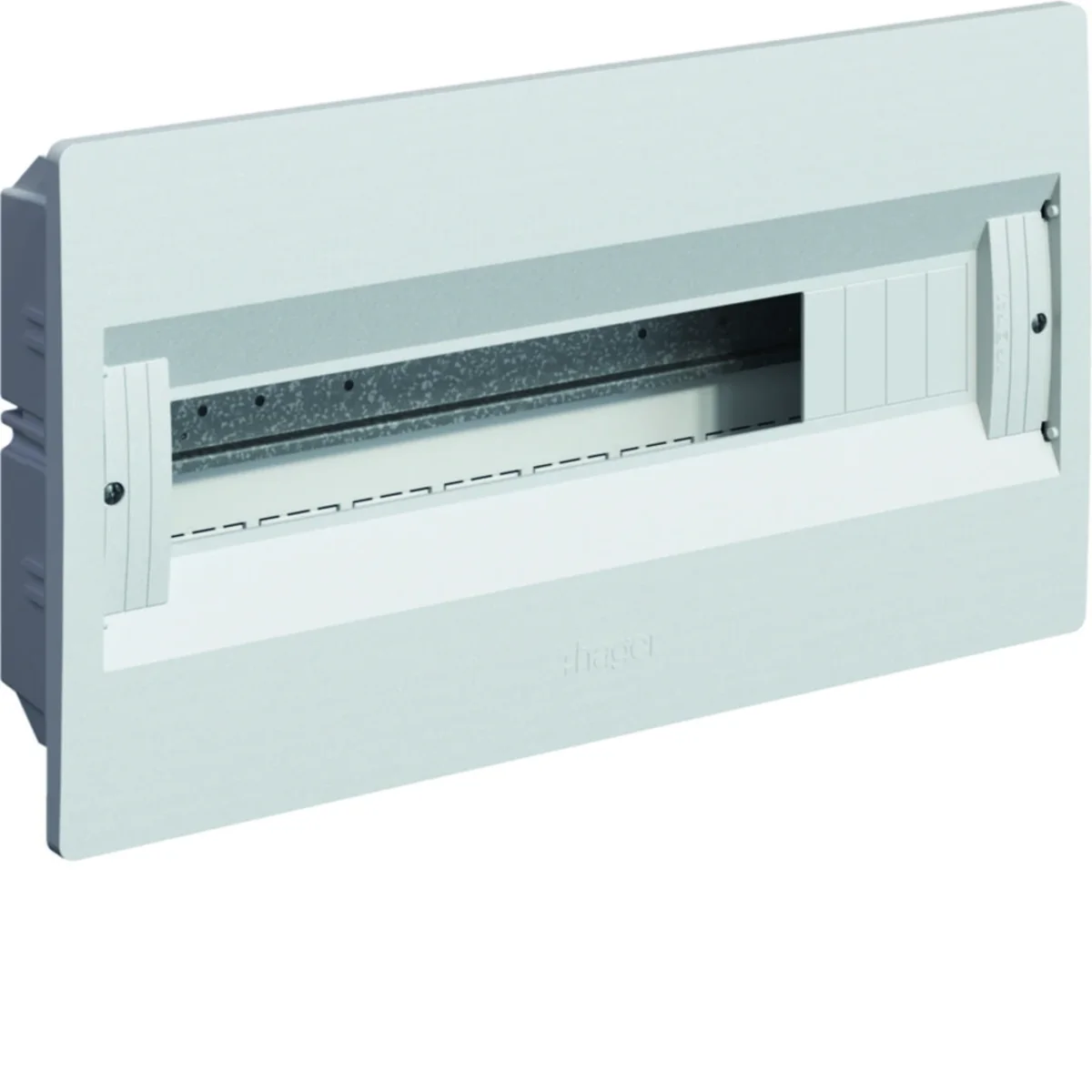

Recessed enclosure, without door, cosmos series. 1 row/18 modules.

Dati tecnici

  • Depth [mm]
    91.4
  • Protection class
    II
  • Family
    COSMOS
  • Width [mm]
    416
  • Number of modules
    18
  • Number of rows for cameras
    1
  • Number of rows
    2
  • Color
    White
  • Level of security
    IP30
  • Height [mm]
    226
  • Glow wire test [°C]
    650
  • PKWIU
    27.12.40.0

Altri dati tecnici

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    18
  • Type of door
    Other
  • Signal passing door
    Yes
  • Type of closure
    Other
  • Built-in depth
    72 mm
  • Built-in width
    398 mm
  • Earthing terminal block
    Yes
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • Height
    226 mm
  • Depth
    91.4 mm
  • Number of rows
    1
  • Cover model
    Closed
  • Transparent cover/door
    No
  • With lock
    No
  • Housing material
    Plastic
  • Built-in height
    208 mm
  • Inner depth
    72 mm
  • Neutral terminal block
    Yes
  • With mounting plate
    No
  • Colour
    White
  • Degree of protection (IP)
    IP30
  • Width
    416 mm

Dettagli del produttore

  • Produttore
    Hager Industrial de Envolventes S.A.
  • Indirizzo
    08430 La Roca del Valles Alfred Nobel 18 Hiszpania

Imballaggio sfuso

Una specie di pacchetto Karton Paleta Karton Paleta
Quantità 1 pezzi 79 pezzi 1 pezzi 79 pezzi
Peso (kg) 0,950 98,050 0,950 98,050
Larghezza (m) 0,240 0,800 0,240 0,800
Lunghezza (m) 0,110 1,100 0,110 1,100
Profondità (m) 0,420 1,200 0,420 1,200
