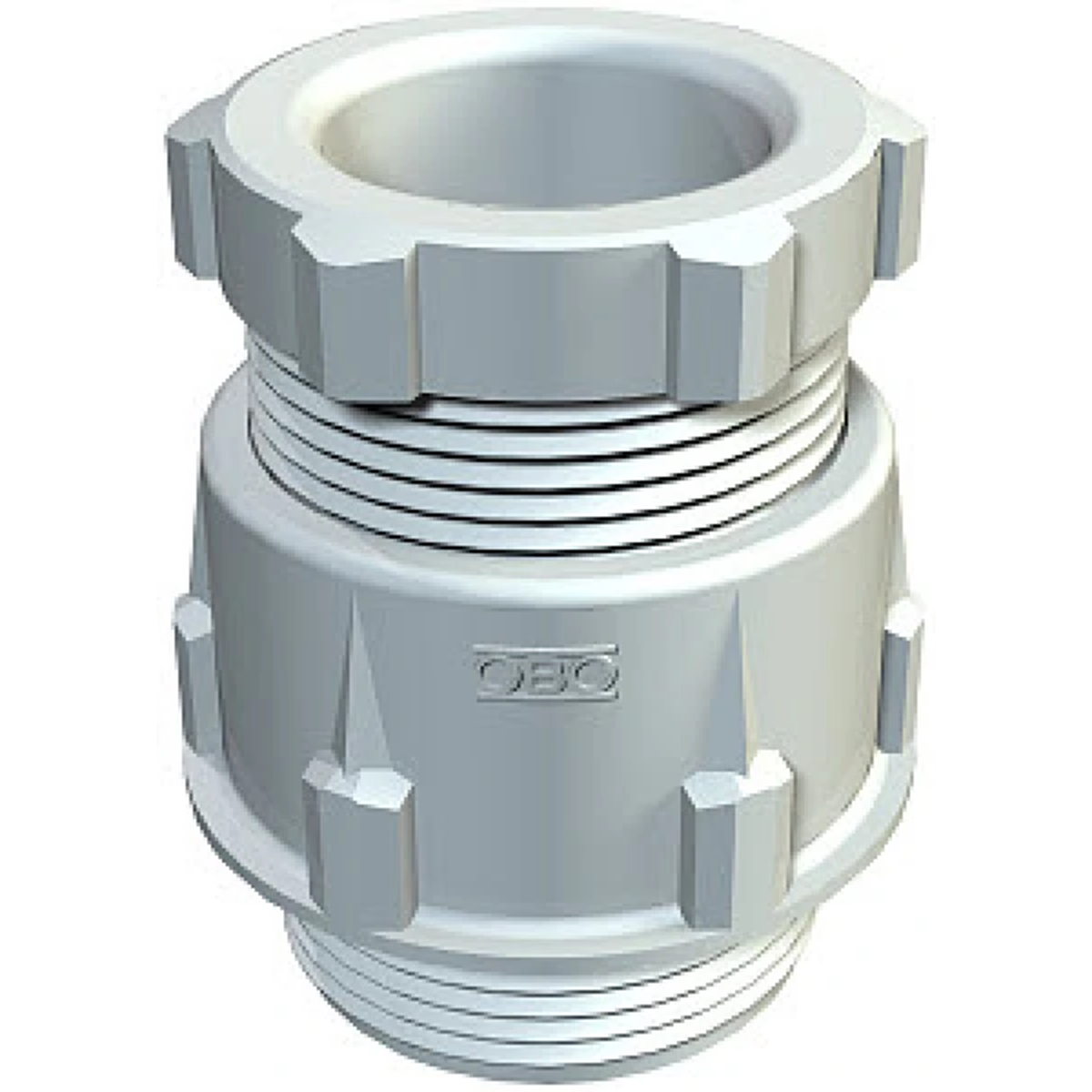

Cone chokes 106 PG36, SZR. 2036363

local index:
RRR013OBOB
Catalog No:
2036363
EAN code:
4012195172871
Manufacturer: OBO BETTERMANN
Color: Gray
Handle: PG36
Accurate color: light gray
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
0,97 €
gross / pcs.
(including VAT 23%)
Last lowest price: 0,97 € gross
Base price: 3,85 € gross -75%
Delivery in 3h
Accessible 7 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

Standard cable gland, form A according to DIN 46320 with NR/SBR sealing ring. PG thread according to DIN 40430. Degree of protection: with thread sealing ring IP65 without thread sealing ring IP54.

Technical data

  • Color
    Gray
  • Accurate color
    light gray
  • Handle
    PG36
  • PKWIU
    22.29.29.0

Other technical data

  • Thread type
    PG
  • Thread length
    12 mm
  • Material quality
    Other
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP65
  • Colour
    Jasnoszary
  • Bend radius protection/trumpet flare
    No
  • Model
    Straight
  • With strain relief
    No
  • Separable screw gland
    No
  • For Ex-zone gas
    None
  • Nominal thread size metric/PG
    36
  • Suitable for cable diameter
    25 ... 33 mm
  • Surface protection
    Untreated
  • Glass-fibre reinforced
    No
  • Shock resistant
    No
  • RAL-number
    7035
  • With locknut
    No
  • Multi seal area
    No
  • Type of sealing
    Sealing ring
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None

Bulk packaging

A kind of package Skrzynia Karton Paleta
Quantity 10 pcs. 80 pcs. 1920 pcs.
Weight (kg) 0,728 6,304 176,296
Volume (m3) 0,003 0,028 0,912
Width (m) 0,138 0,288 0,800
Length (m) 0,188 0,395 1,200
Depth (m) 0,116 0,249 0,950
