Cone chokes 106 PG13.5, SZ 2036134

Name: Cone chokes 106 PG13.5, SZ
Brand: OBO BETTERMANN
SKU: RRR009OBOB
Price: 1.61 PLN
Availability: BackOrder

local index:

RRR009OBOB

Catalog No:

2036134

EAN code:

4012195172390

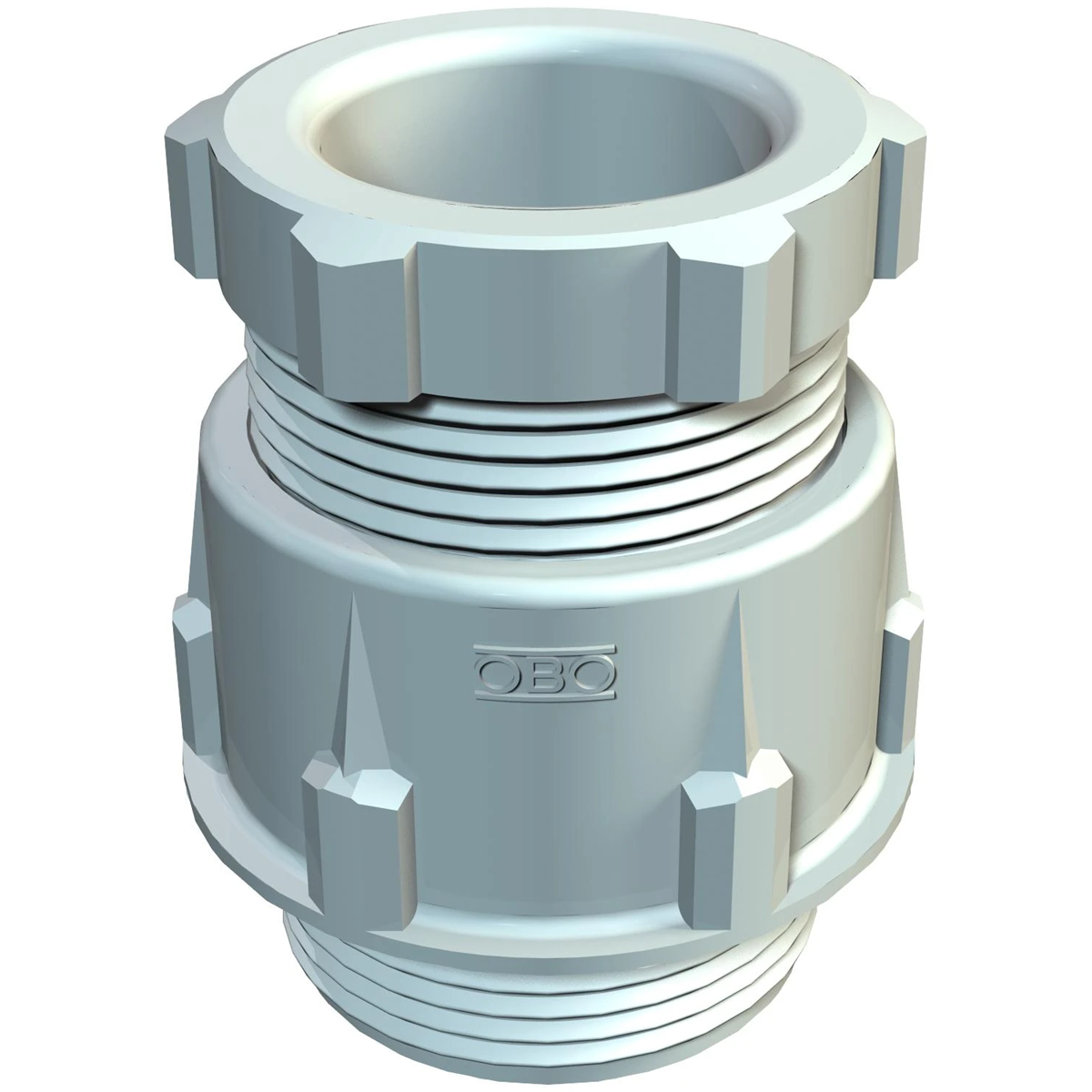

Click on the photo to enlarge

Manufacturer: OBO BETTERMANN

Color: Gray

Handle: PG13.5

Accurate color: light gray

See full description

Price:

1,61 zł

gross / pcs.

(including VAT 23%)

up to 2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Standard cable gland, form A according to DIN 46320 with NR/SBR sealing ring. PG thread according to DIN 40430. Degree of protection: with thread sealing ring IP65 without thread sealing ring IP54.

Technical data

Color

Gray
Accurate color

light gray

Handle

PG13.5
PKWIU

22.29.29.0

Other technical data

Thread type

PG
Thread length

9 mm
Material

Plastic
Halogen free

Yes
Degree of protection (IP)

IP65
Colour

Grey
Bend radius protection/trumpet flare

No
Model

Straight
With strain relief

No
Separable screw gland

No
For Ex-zone gas

None

Nominal thread size metric/PG

13.5
Suitable for cable diameter

9 ... 13 mm
Material quality

Polystyrene (PS)
Glass-fibre reinforced

No
Shock resistant

No
RAL-number

7035
With locknut

No
Multi seal area

No
Type of sealing

Sealing ring
Explosion-tested version

No
For Ex-Zone dust

None

Manufacturer details

Manufacturer

OBO Bettermann Holding GmbH & Co. KG
Address

58710 Menden Hüingser Ring 52 Niemcy
E-mail

oferty@obo.pl

Bulk packaging

A kind of package	Skrzynia	Karton	Paleta
Quantity	50 pcs.	600 pcs.	19200 pcs.
Weight (kg)	0,457	5,809	208,388
Volume (m3)	0,002	0,021	0,912
Width (m)	0,094	0,288	0,800
Length (m)	0,188	0,395	1,200
Depth (m)	0,090	0,183	0,950
