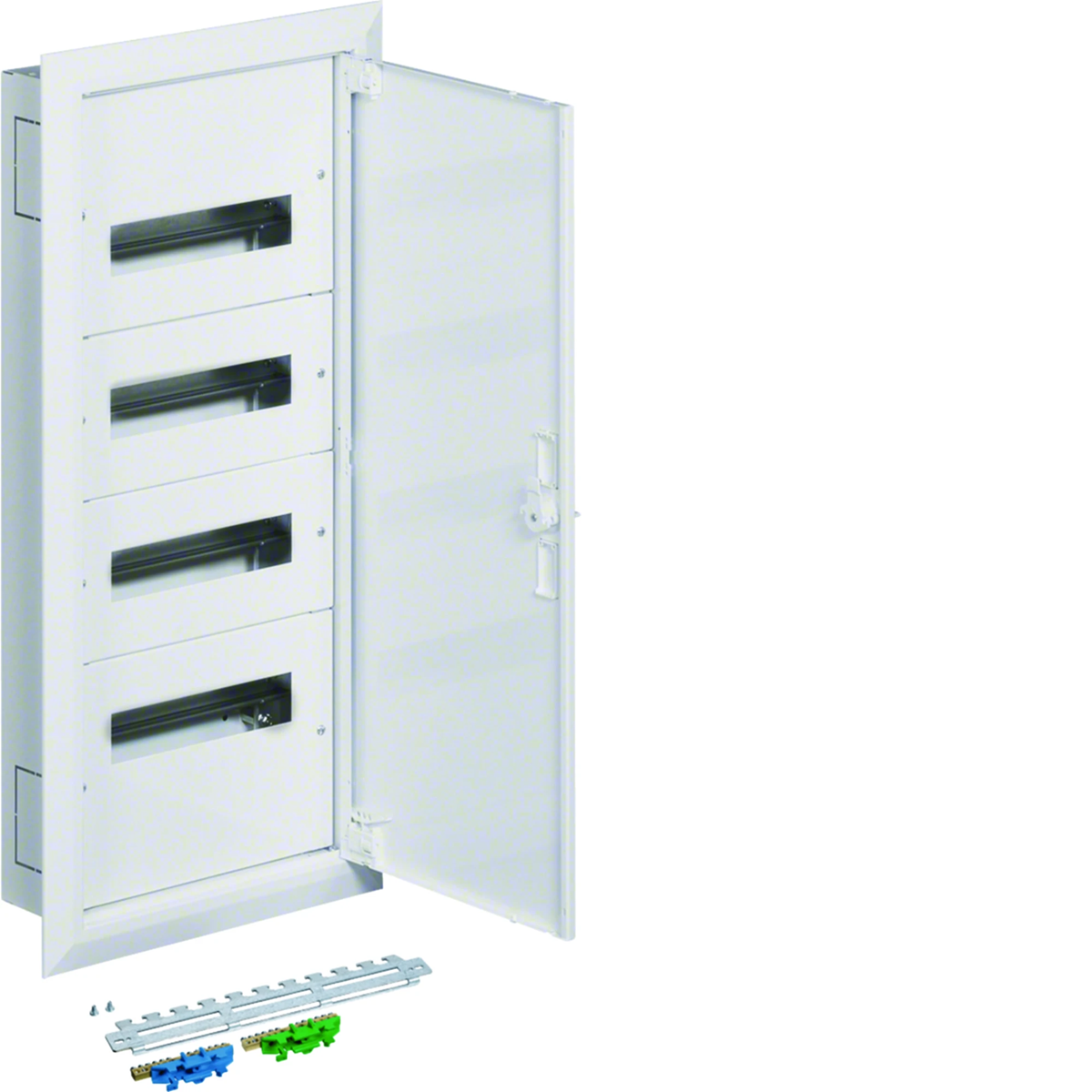

Complete switchgear 4x12modular + PE/N terminals IP30/I class pt. FW412FT

local index:
RIP440HAGE
Catalog No:
FW412FT
EAN code:
3250614300844
Manufacturer: HAGER
Depth [mm]: 110
Number of doors: 1
Number of modules: 48
Price:
336,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Flush-mounted switchgear fw2
- mounting rails spacing 150 mm
- depth 110 mm
- with PE/N terminals

Technical data

  • Depth [mm]
    110
  • Number of modules
    48
  • Color
    White
  • Width [mm]
    334
  • Number of modules
    48
  • PKWIU
    27.12.40.0
  • Number of doors
    1
  • Number of rows
    4
  • Level of security
    IP30
  • Height [mm]
    770
  • Accurate color
    White

Other technical data

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    12
  • Cover model
    Closed
  • Housing material
    Steel
  • Width
    334 mm
  • Built-in depth
    110 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • With lock
    No
  • Number of rows
    4
  • Type of covering
    Door
  • Transparent cover/door
    No
  • Height
    770 mm
  • Depth
    110 mm
  • Inner depth
    110 mm
  • With mounting plate
    No
  • Colour
    White
  • Degree of protection (IP)
    IP30
  • Type of closure
    Other

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 12 pcs.
Weight (kg) 13,400 13,990 192,880
Width (m) 0,300 0,045 0,800
Length (m) 0,800 0,850 1,280
Depth (m) 0,030 0,415 1,200
