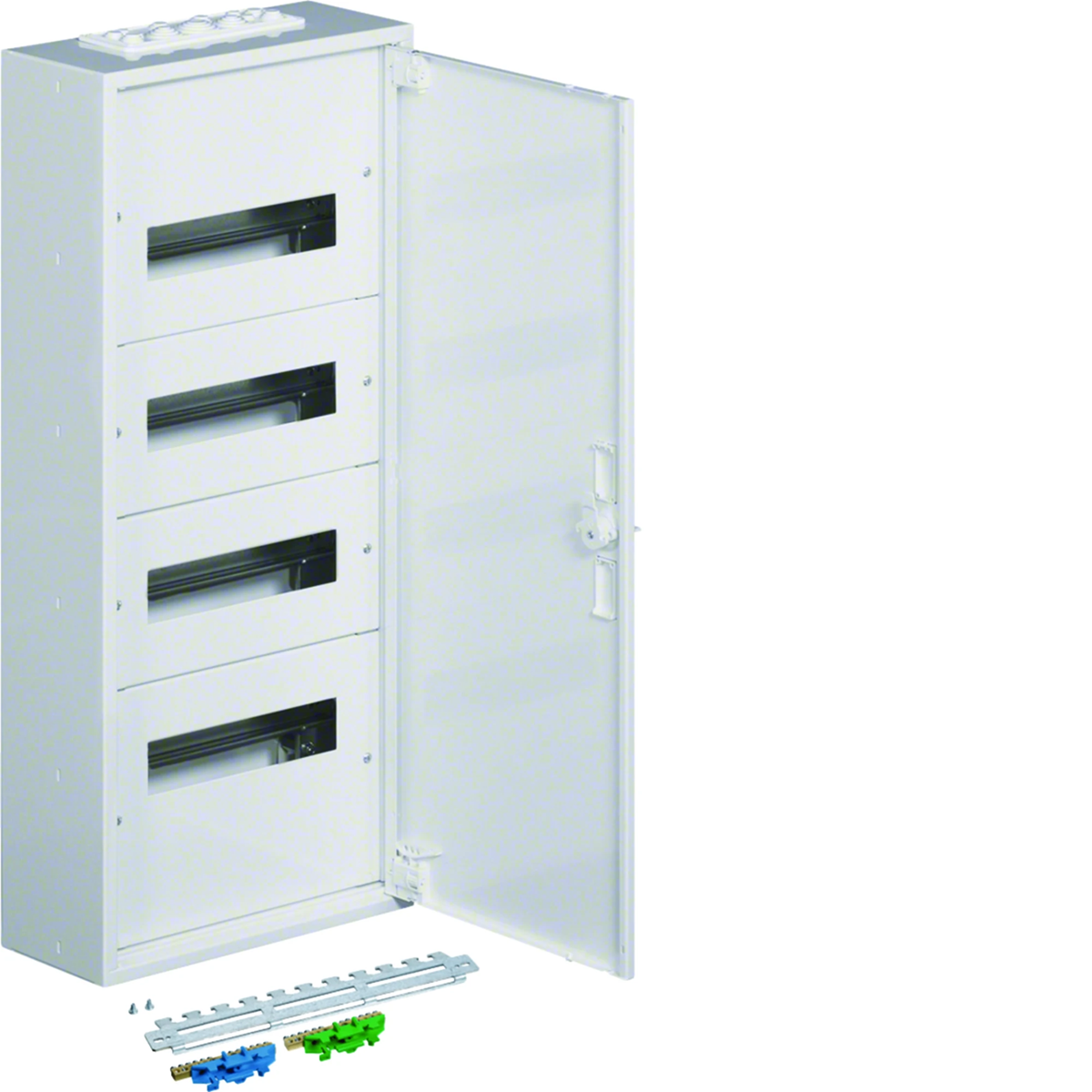

Complete switchgear 4x12 modules + PE/N terminals, IP30/I class n/t FW412WT

local index:
RIP026HAGE
Catalog No:
FW412WT
EAN code:
3250614300967
Manufacturer: HAGER
Depth [mm]: 150
Number of rows: 4
Installation: Surface-mounted
Price:
341,88 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Metal surface-mounted switchgears, thanks to the depth of 15 cm, make it possible to build devices higher than modular ones and provide the required cable space.

Product advantages and technical characteristics:

  • Complete switchgear surface-mounted with doors, mounting grid, metal covers and a set of PE/N screw terminals mounted on a special bracket, for devices up to 125 A,
  • I protection class, protection level IP30,
  • depth 150 mm, width 355-787 mm,
  • height: 641-1241 mm, from 3 to 7 rows,
  • perforated cable entries - top and bottom,
  • material: steel sheet, powder coated, white (RAL 9010),
  • door closing: lever handle,
  • conformity with the standard: PN -EN 61439-1.

Technical data

  • Depth [mm]
    150
  • Installation
    Surface-mounted
  • Width [mm]
    334
  • Number of modules
    48
  • Number of rows
    4
  • Level of security
    IP30
  • Height [mm]
    791
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    12
  • Cover model
    Closed
  • Housing material
    Steel
  • Width
    354 mm
  • Inner depth
    150 mm
  • With mounting plate
    No
  • Colour
    White
  • Degree of protection (IP)
    IP30
  • Type of closure
    Other
  • Number of rows
    4
  • Type of covering
    Door
  • Transparent cover/door
    No
  • Height
    942 mm
  • Depth
    150 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • With lock
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 14 pcs.
Weight (kg) 13,400 14,480 227,720
Width (m) 0,358 0,380 0,810
Length (m) 0,792 0,165 0,930
Depth (m) 0,150 0,810 1,200
