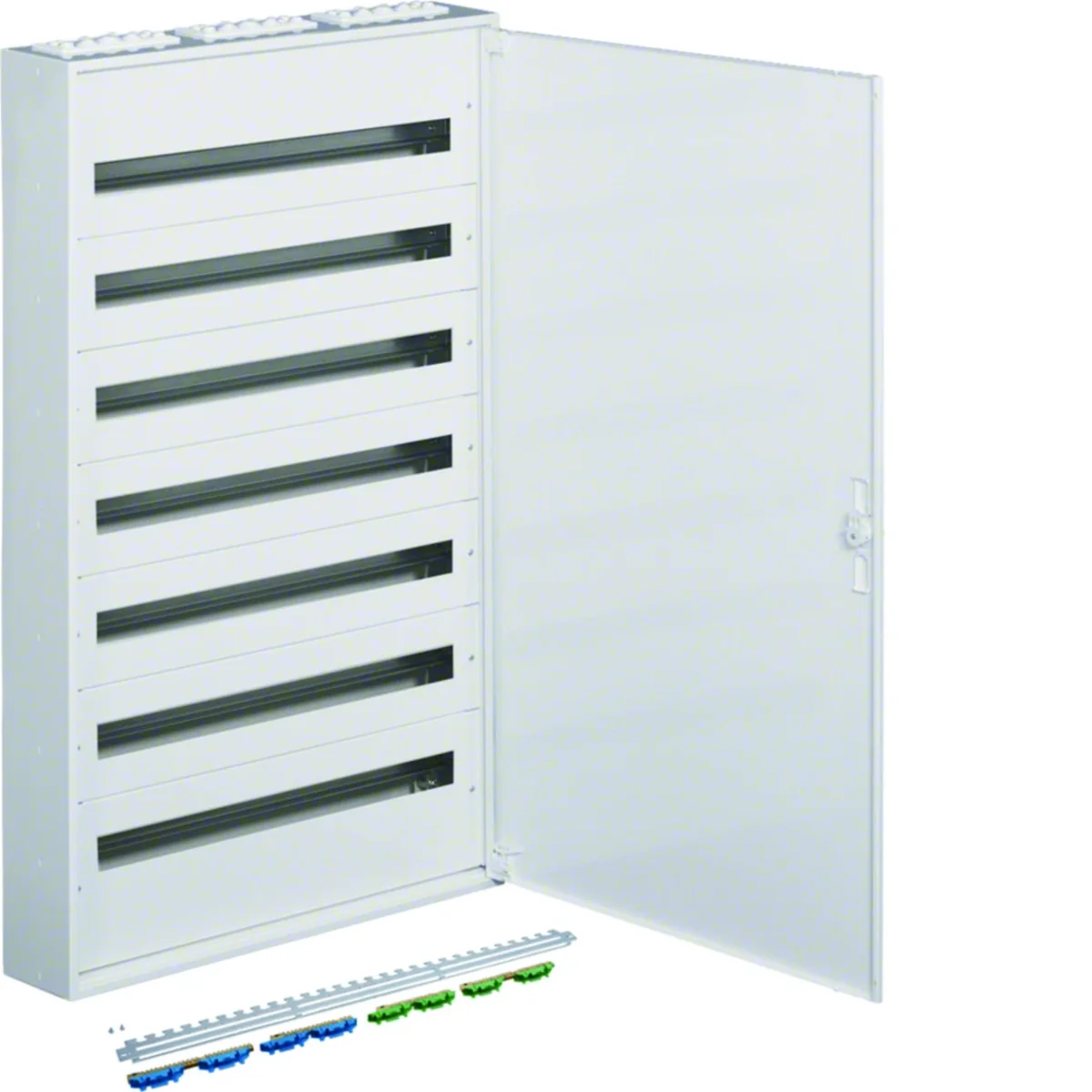

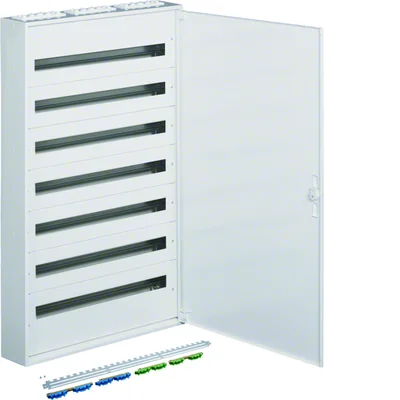

Complete switchboard 7x36 modules + PE/N terminals, IP30/I class n/t FW736WT
local index:
RIR011HAGE
Catalog No:
FW736WT
EAN code:
3250614301056
Price:
597,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Product advantages and technical characteristics:
- Complete surface-mounted switchgear with doors, mounting grid, metal covers and a set of PE/N screw terminals mounted on a special bracket, for devices up to 125 A,
- I protection class, IP30 protection,
- depth 150 mm, width 355-787 mm,
- height: 641-1241 mm, from 3 up to 7 rows,
- perforated cable entries - top and bottom,
- material: steel sheet, powder coated, white (RAL 9010),
- door closure: lever handle,
- compliance with the standard: PN-EN 61439-1.
Technical data
-
Depth [mm]150
-
InstallationSurface-mounted
-
Width [mm]766
-
Number of modules252
-
Number of rows7
-
Level of securityIP30
-
Height [mm]1241
-
PKWIU27.12.40.0
Other technical data
-
Mounting methodSurface mounted
-
Width in number of modular spacings36
-
Cover modelClosed
-
Housing materialSteel
-
Width786 mm
-
Inner depth150 mm
-
With mounting plateNo
-
ColourWhite
-
Degree of protection (IP)IP30
-
Type of closureOther
-
Number of rows7
-
Type of coveringDoor
-
Transparent cover/doorNo
-
Height1241 mm
-
Depth150 mm
-
DIN-railYes
-
Extension possibleYes
-
RAL-number9010
-
With lockNo
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 1 pcs. | 5 pcs. |
| Weight (kg) | 37,000 | 39,860 | 222,300 |
| Width (m) | 0,790 | 0,165 | 0,825 |
| Length (m) | 1,242 | 1,280 | 0,980 |
| Depth (m) | 0,150 | 0,830 | 1,280 |
