Camera component. 24 modules H350 W300mm SystemS+ FL979A

local index:
RRR160HAGE
Catalog No:
FL979A
EAN code:
3250610679791
Manufacturer: HAGER
Width [mm]: 280
Height [mm]: 330
Price:
86,08 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

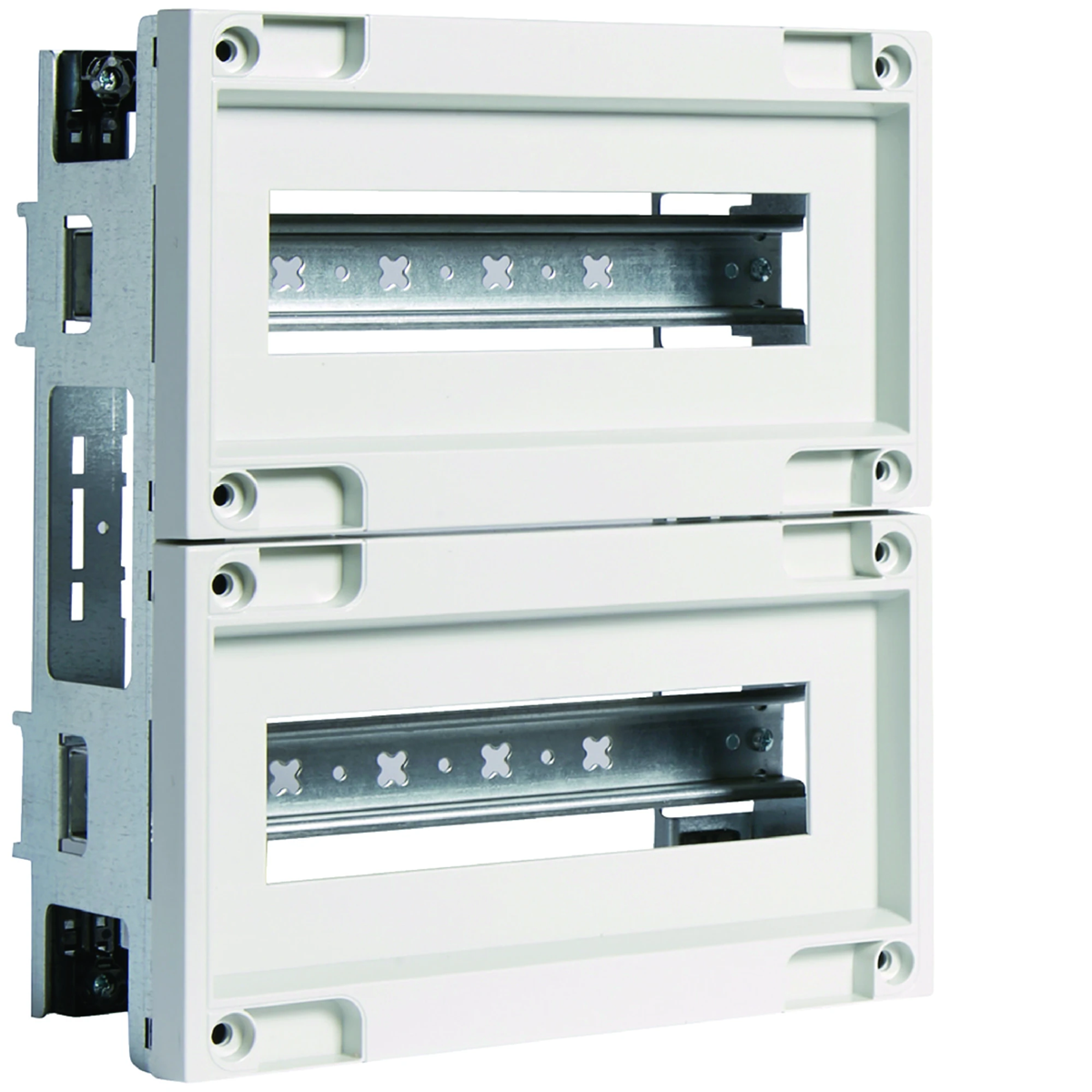

A subassembly for building modular equipment of the +S system. The complete set consists of:
- two mounting rails
- TS35 (DIN) rails
- insulating masking plates
- 4 mounting brackets

Technical data

  • Width [mm]
    280
  • PKWIU
    27.12.40.0
  • Height [mm]
    330

Other technical data

  • Height
    330 mm
  • Depth
    120 mm
  • Number of modular spacings per DIN-rail
    24
  • Width
    280 mm
  • Number of DIN-rails
    2
  • Extension possible
    Yes

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 64 pcs.
Weight (kg) 1,500 1,589 126,760
Width (m) 0,330 0,265 0,800
Length (m) 0,370 0,132 1,210
Depth (m) 0,120 0,349 1,200
