Cable gland PG-9B for a cable with dimensions (4-8mm) 50 pcs. PG-9B

local index:
RRR159BORP
Catalog No:
PG-9B
EAN code:
8595055708008
Manufacturer: TRYTYT
Color: Black
Maximum operating temperature [°C]: 85
Material: Polyamide
Price:
17,87 €
gross / pkg.
(including VAT 23%)
0,36 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

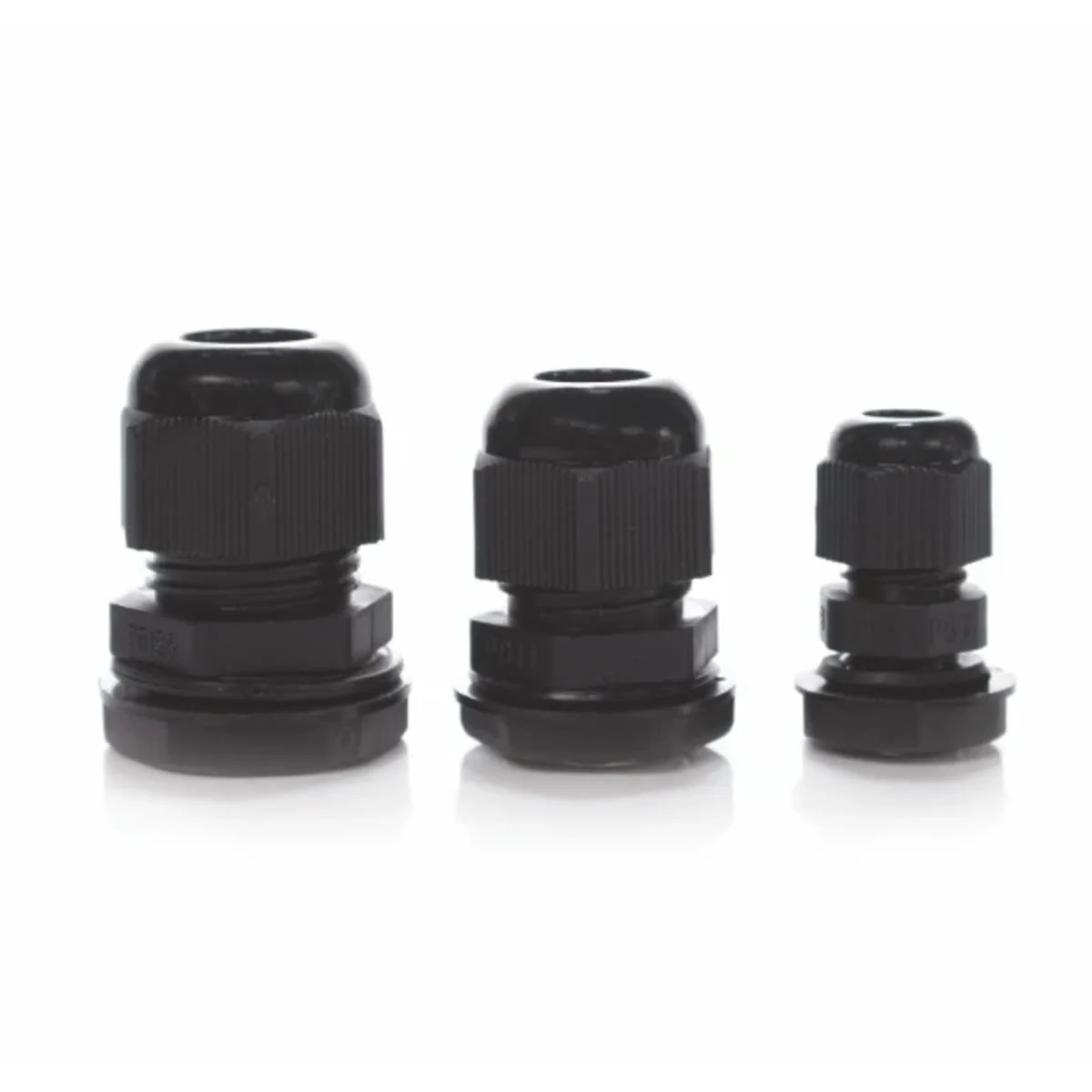

PG cable glands designed for sealing cable passages through enclosures of electrical devices.

Made of polyamide 6.6 - a material resistant to weather conditions, at the same time very durable, self-extinguishing, free of halogens and phosphorus. PG cable glands do not contain silicone additives.

The special design of the gland prevents twisting of the wires inside the cable. Easy to assemble.

They allow to achieve the IP 68 degree of protection (which was confirmed by a certificate from EZU). The offered series of types enables mounting of cables with a diameter of 3.5 mm to 44 mm.

Technical data

  • Color
    Black
  • Material
    Polyamide
  • Cable diameter range [mm]
    4-8
  • PKWIU
    22.21.29.0
  • Maximum operating temperature [°C]
    85
  • Pieces in the package
    50
  • Minimum operating temperature [°C]
    -40
