Cable gland MG-32 for a cable with dimensions (18-25mm) 25 pcs. MG-32

local index:
RRR045BORP
Catalog No:
MG-32
EAN code:
8595055701634
Manufacturer: TRYTYT
Color: Gray
Maximum operating temperature [°C]: 85
Material: Polyamide
Price:
32,61 €
gross / pkg.
(including VAT 23%)
1,30 € gross/pcs.
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

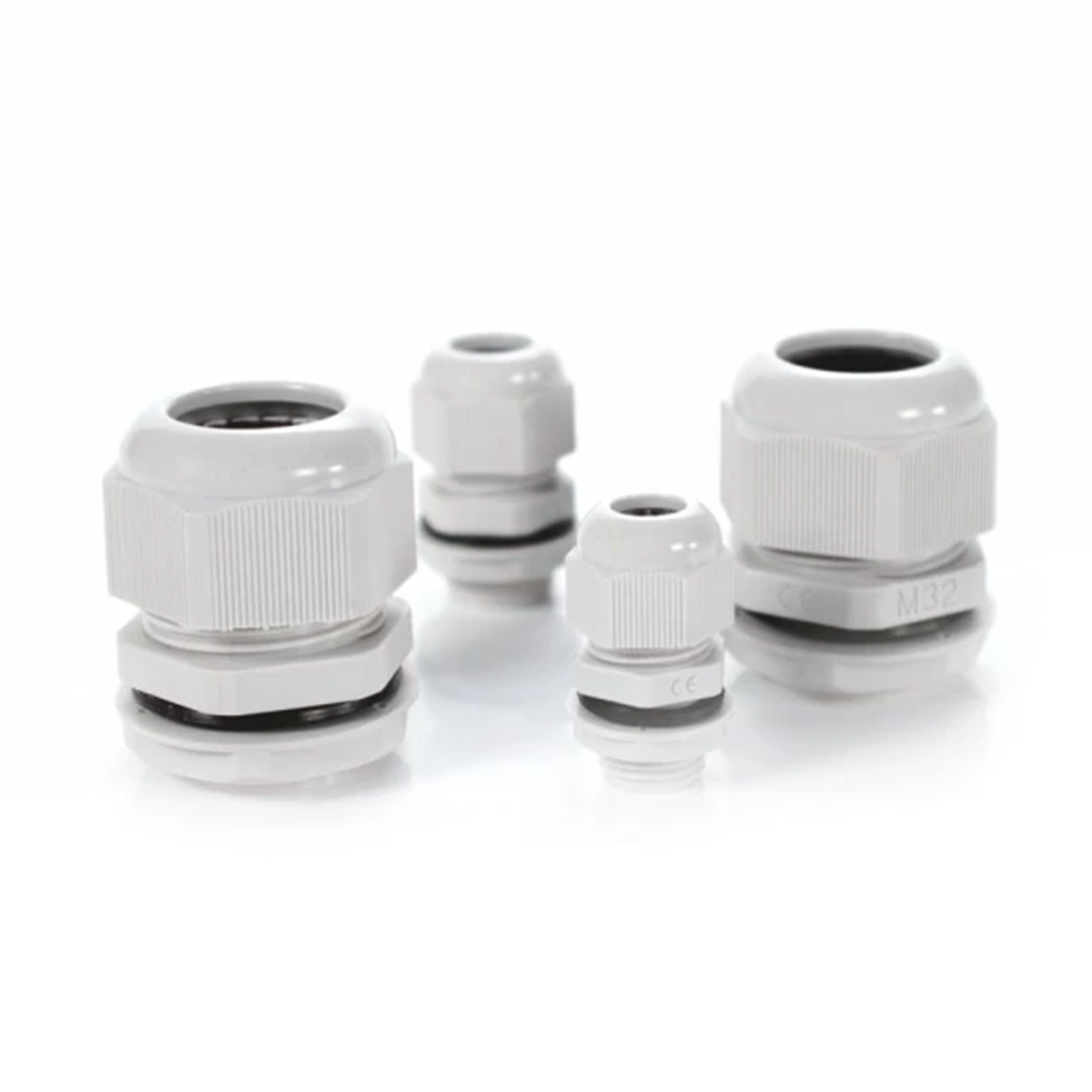

MG cable glands (with metric thread) designed to seal cable passages through enclosures of electrical devices. Made of polyamide 6.6 - a material resistant to weather conditions, at the same time very durable, self-extinguishing, free of halogens and phosphorus. MG cable glands do not contain silicone additives.

The special design of the gland prevents twisting of the wires inside the cable. Easy to assemble.

They allow to achieve the IP 68 degree of protection (which was confirmed by a certificate from EZU).

The series of types offered allows the mounting of cables with a diameter of 3 mm to 44 mm. Offered complete with gasket and nut.

Technical data

  • Color
    Gray
  • Material
    Polyamide
  • Maximum diameter [mm]
    25
  • Handle
    metric
  • Minimum operating temperature [°C]
    -40
  • Maximum operating temperature [°C]
    85
  • Pieces in the package
    25
  • Minimum diameter [mm]
    18
  • Cable dimensions [mm]
    18-25
  • PKWIU
    22.21.29.0
