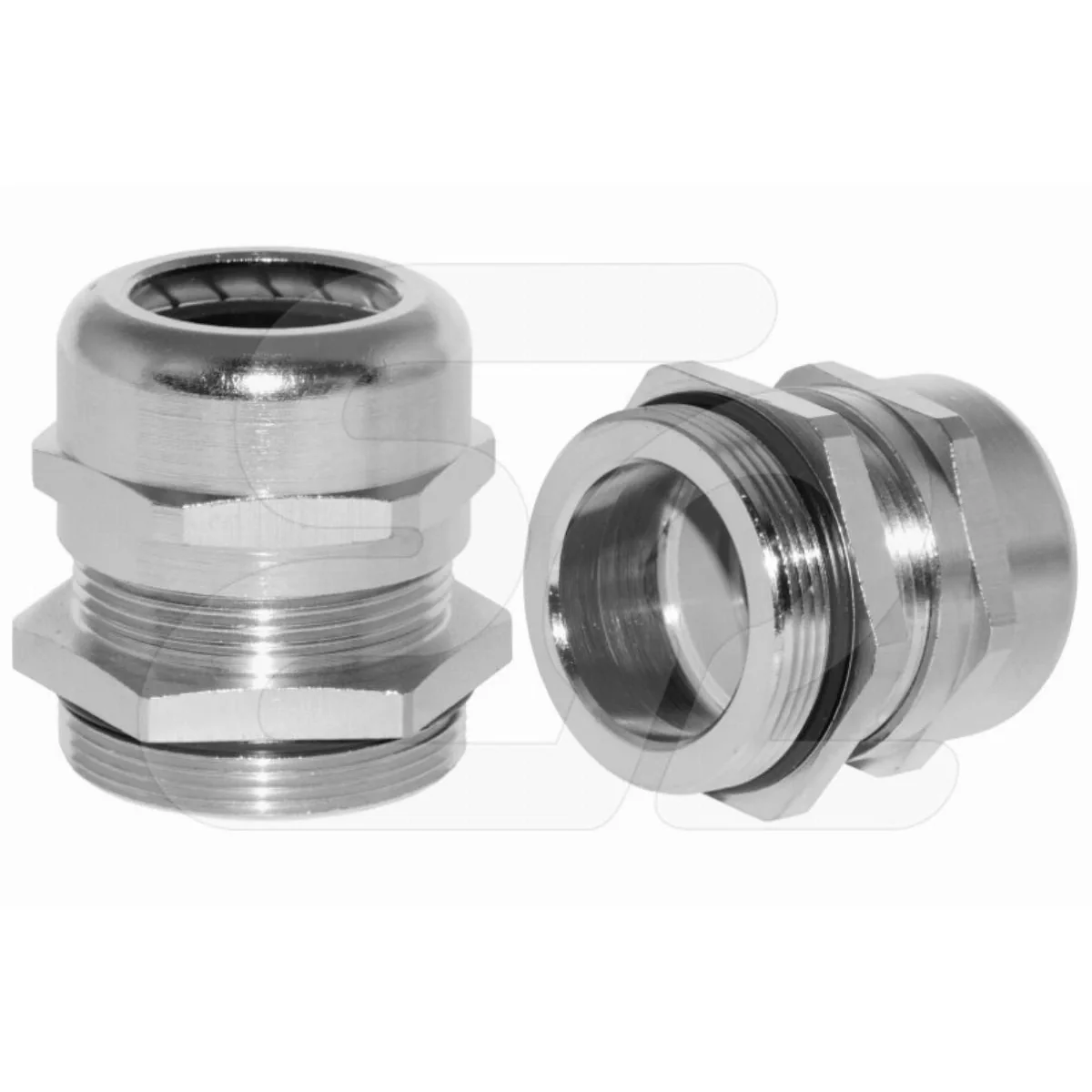

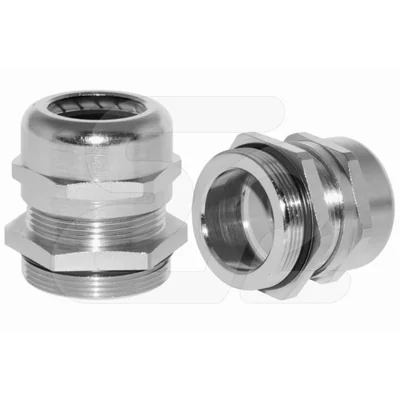

Cable gland MDW 40HM E03DK-03070200601
local index:
RRR138ERGO
Catalog No:
E03DK-03070200601
Price:
11,07 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Cable gland MDW 40HM
Technical data
-
Gross length0.15
-
Level of securityIP68
-
Gross height0.04
-
short nameMDW 40HM
-
Gross width0.08
-
PKWIU25.99.29.0
Other technical data
-
Thread typeMetric
-
Thread length8 mm
-
Suitable for cable diameter19.5 ... 28 mm
-
Material qualityBrass
-
Halogen freeYes
-
Degree of protection (IP)IP68
-
ColourKolor naturalny
-
With locknutNo
-
Multi seal areaNo
-
With strain reliefNo
-
Separable screw glandYes
-
Explosion-tested versionNo
-
For Ex-Zone dustNone
-
Nominal thread size metric/PG40
-
Wrench width40 mm
-
MaterialMetal
-
Surface protectionNickel-plated
-
Glass-fibre reinforcedNo
-
Shock resistantYes
-
Bend radius protection/trumpet flareNo
-
ModelStraight
-
Flat cable couplingNo
-
Type of sealingSealing ring
-
Operating temperature-40 ... 100 °C
-
For Ex-zone gasNone
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 5 pcs. |
| Weight (kg) | 0,780 |
| Width (m) | 0,360 |
| Length (m) | 0,080 |
| Depth (m) | 0,280 |
