128521
0
Cable gland MDW 20NM E03DK-03040200303
local index:
RRR454ERGO
Catalog No:
E03DK-03040200303
Price:
11,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

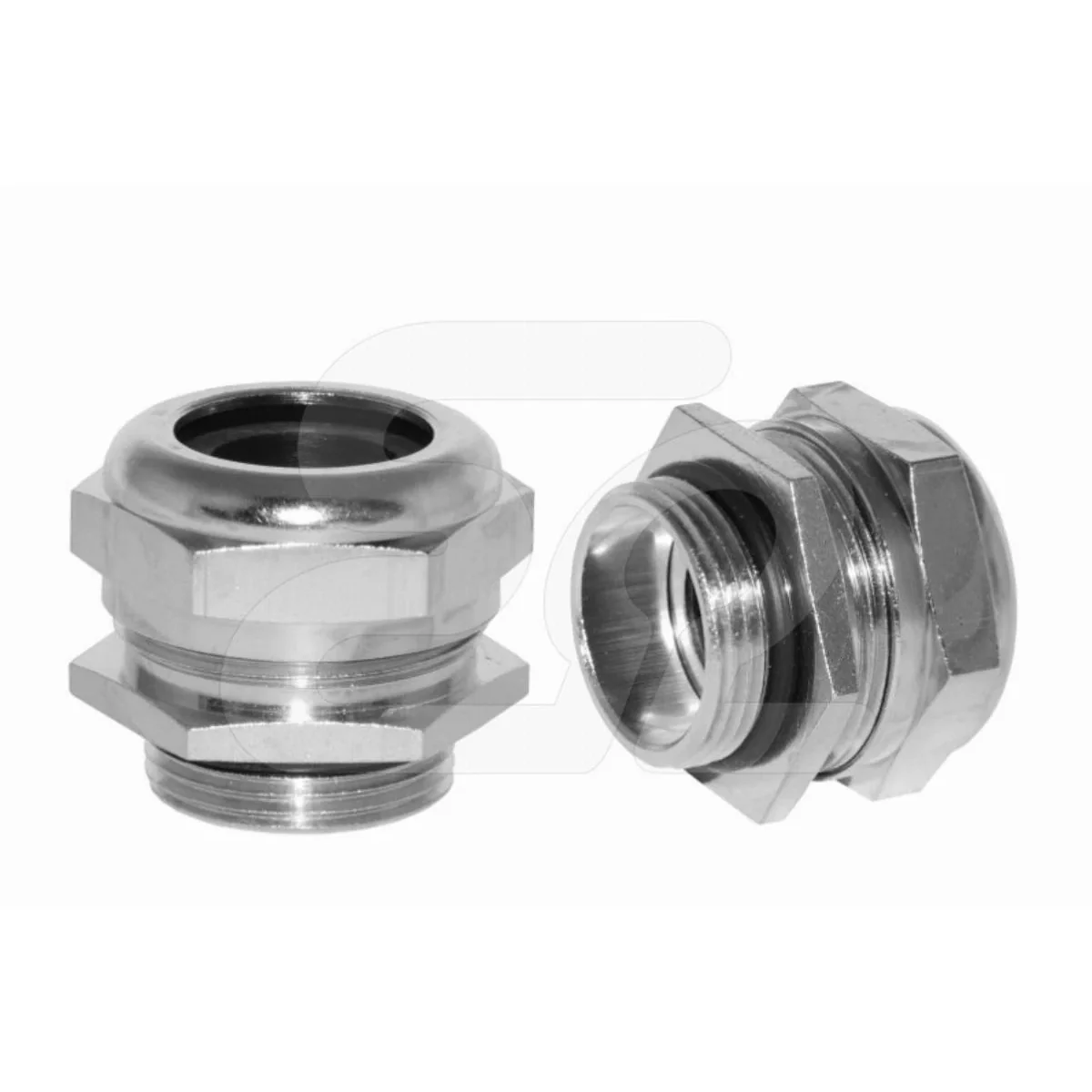

Cable gland MDW 20NM
Technical data
-
short nameMDW 20NM
-
PKWIU25.99.29.0
-
Level of securityIP65
Other technical data
-
Thread typeMetric
-
Thread length7 mm
-
Suitable for cable diameter8 ... 15 mm
-
Material qualityBrass
-
Halogen freeYes
-
Degree of protection (IP)IP65
-
Bend radius protection/trumpet flareNo
-
ModelStraight
-
Flat cable couplingNo
-
Type of sealingSealing ring
-
Operating temperature-30 ... 100 °C
-
For Ex-zone gasNone
-
Nominal thread size metric/PG20
-
Wrench width24 mm
-
MaterialMetal
-
Surface protectionNickel-plated
-
Glass-fibre reinforcedNo
-
Shock resistantYes
-
With locknutNo
-
Multi seal areaNo
-
With strain reliefNo
-
Separable screw glandYes
-
Explosion-tested versionNo
-
For Ex-Zone dustNone
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 10 pcs. |
| Weight (kg) | 0,030 |
| Width (m) | 0,120 |
| Length (m) | 0,100 |
| Depth (m) | 0,020 |
