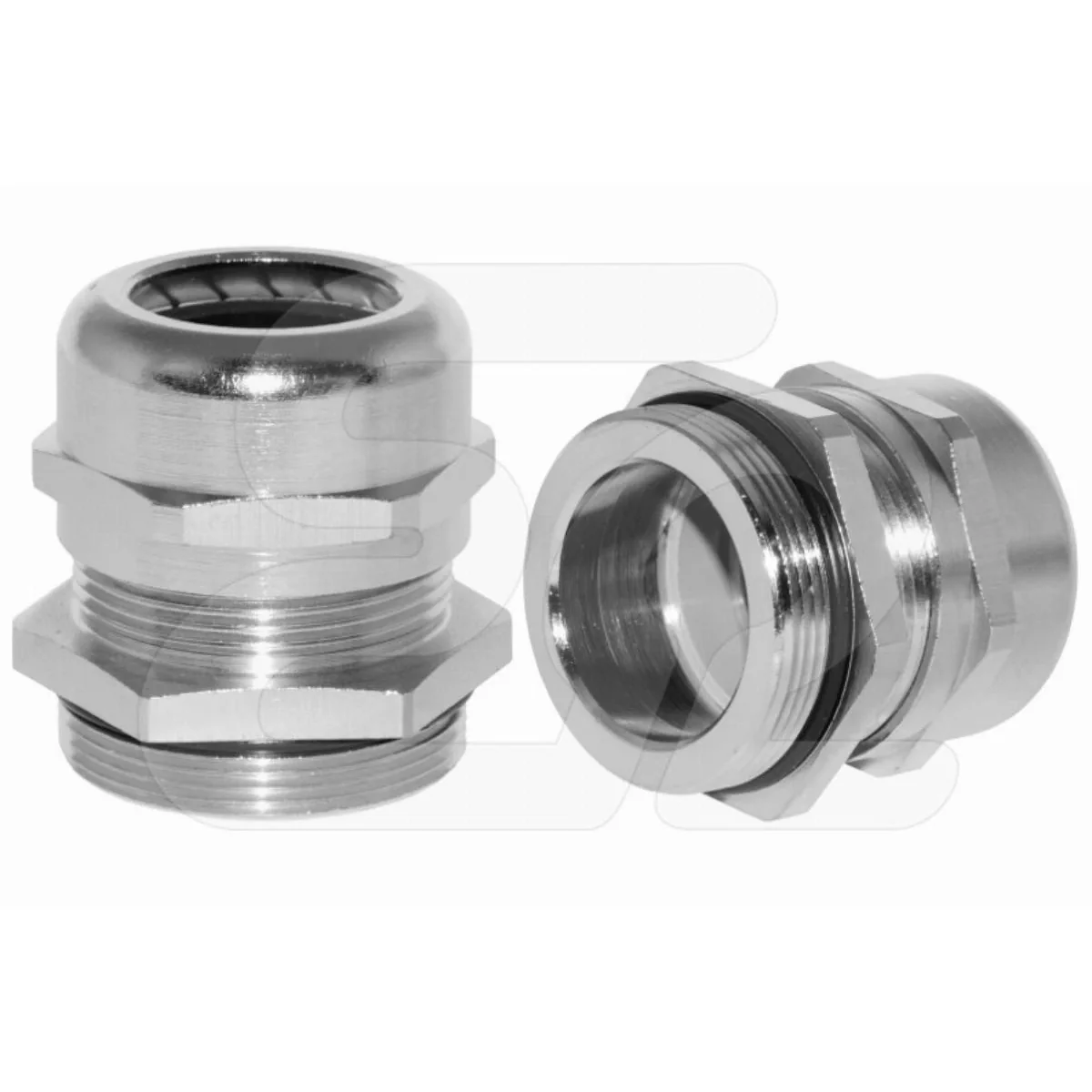

Cable gland MDW 20HM E03DK-03070200301

local index:
RRR136ERGO
Catalog No:
E03DK-03070200301
Manufacturer: ERGOM
Gross length: 0.71
short name: MDW 20HM
Level of security: IP68
Price:
2,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cable gland MDW 20HM

Technical data

  • Gross length
    0.71
  • Level of security
    IP68
  • Gross height
    0.05
  • short name
    MDW 20HM
  • Gross width
    0.06
  • PKWIU
    25.99.29.0

Other technical data

  • Thread type
    Metric
  • Thread length
    6 mm
  • Suitable for cable diameter
    8.5 ... 13 mm
  • Material quality
    Brass
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP68
  • Colour
    Kolor naturalny
  • With locknut
    No
  • Multi seal area
    No
  • With strain relief
    No
  • Separable screw gland
    Yes
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None
  • Nominal thread size metric/PG
    20
  • Wrench width
    20 mm
  • Material
    Metal
  • Surface protection
    Nickel-plated
  • Glass-fibre reinforced
    No
  • Shock resistant
    Yes
  • Bend radius protection/trumpet flare
    No
  • Model
    Straight
  • Flat cable coupling
    No
  • Type of sealing
    Sealing ring
  • Operating temperature
    -40 ... 100 °C
  • For Ex-zone gas
    None

Bulk packaging

A kind of package Sztuka
Quantity 50 pcs.
Weight (kg) 0,030
Width (m) 0,040
Length (m) 0,010
Depth (m) 0,040
