Cable gland DW 11R E03DK-01170100303

local index:
RRR275ERGO
Catalog No:
E03DK-01170100303
Manufacturer: ERGOM
short name: DW 11R
Level of security: IP66
Price:
0,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

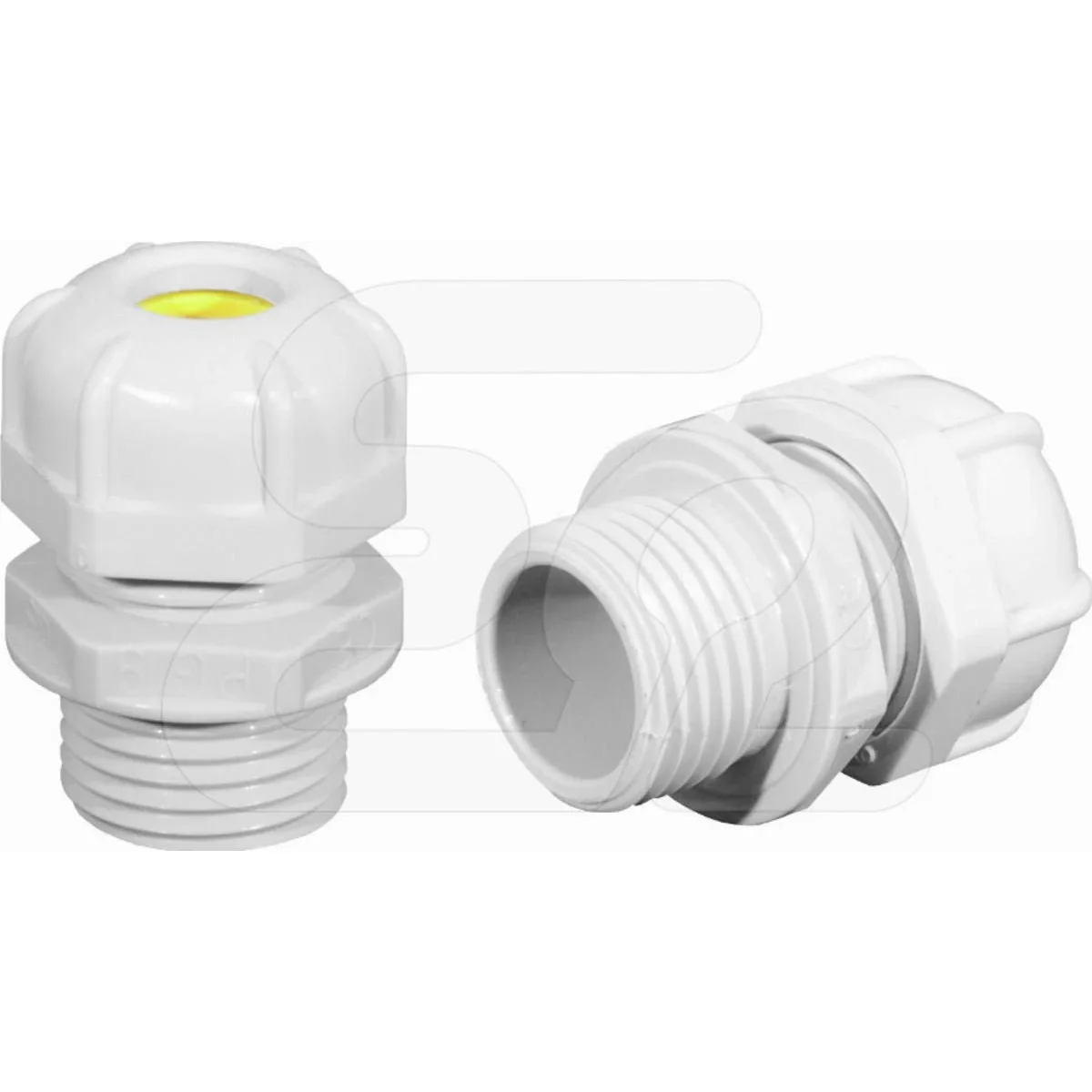

Cable gland DW 11R

Technical data

  • short name
    DW 11R
  • PKWIU
    22.21.29.0
  • Level of security
    IP66

Other technical data

  • Thread type
    PG
  • Thread length
    9 mm
  • Suitable for cable diameter
    5 ... 10 mm
  • Material quality
    Polyamide (PA)
  • Halogen free
    No
  • Degree of protection (IP)
    IP66
  • Bend radius protection/trumpet flare
    No
  • Model
    Straight
  • Flat cable coupling
    No
  • Type of sealing
    Sealing ring
  • Operating temperature
    -20 ... 80 °C
  • For Ex-zone gas
    None
  • Nominal thread size metric/PG
    11
  • Wrench width
    22 mm
  • Material
    Plastic
  • Surface protection
    Untreated
  • Glass-fibre reinforced
    No
  • Shock resistant
    Yes
  • With locknut
    No
  • Multi seal area
    No
  • With strain relief
    No
  • Separable screw gland
    Yes
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None

Bulk packaging

A kind of package Sztuka
Quantity 10 pcs.
Weight (kg) 0,010
