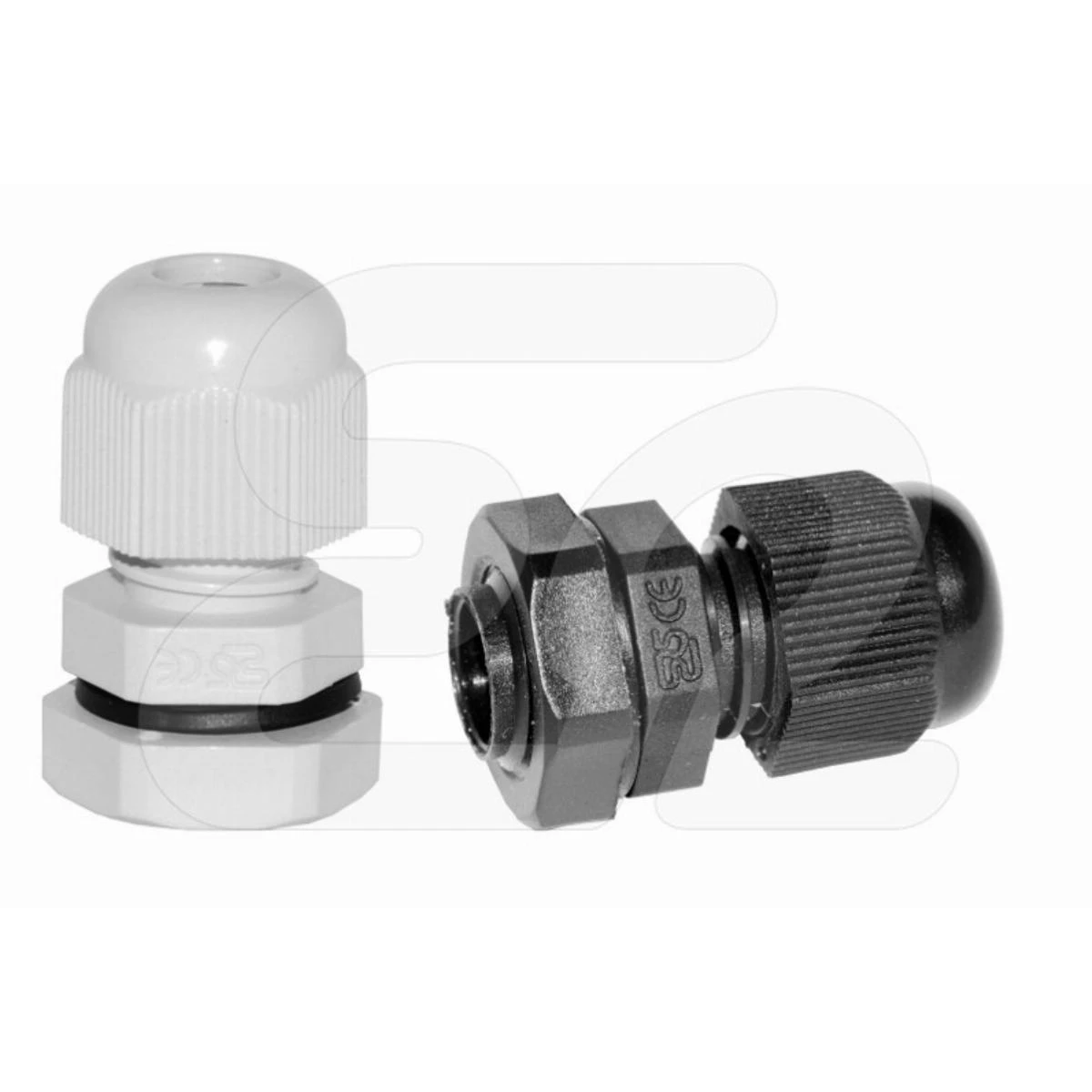

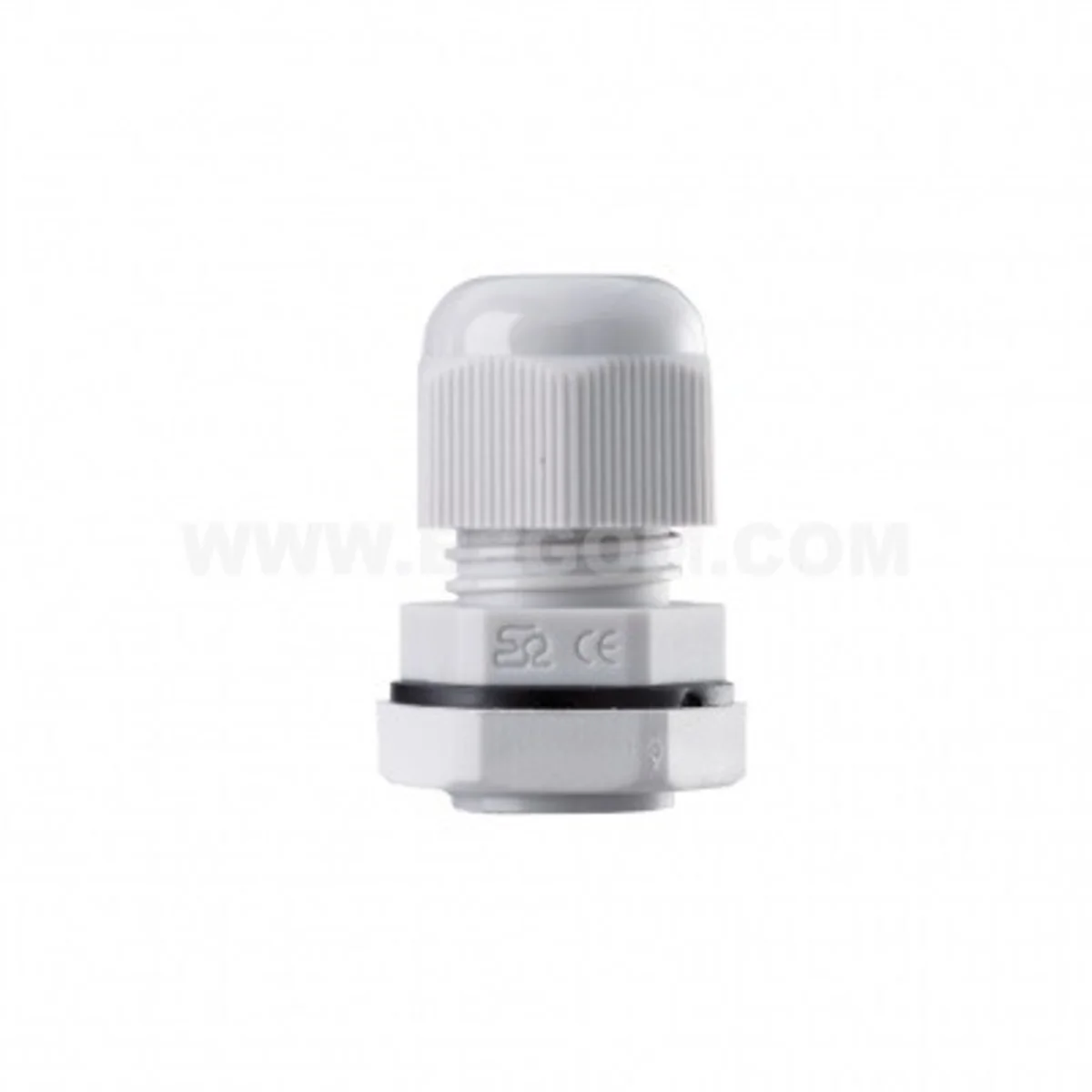

Cable gland DP-EN 16 HM M16x1.5 grey E03DK-01040100203

local index:
RRR055ERGO
Catalog No:
E03DK-01040100203
Manufacturer: ERGOM
Thread: M16x1.5
Color: Gray
Material: Polyamide
Price:
0,34 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cable gland DP-EN 16 HM M16x1.5 gray

Technical data

  • Thread
    M16x1.5
  • Material
    Polyamide
  • Cable outer diameter [mm]
    4-8
  • Color
    Gray
  • Level of security
    IP68
  • PKWIU
    22.21.29.0

Other technical data

  • Thread type
    Metric
  • Thread length
    8 mm
  • Suitable for cable diameter
    4 ... 8 mm
  • Material quality
    Polyamide (PA)
  • Halogen free
    No
  • Degree of protection (IP)
    IP68
  • Bend radius protection/trumpet flare
    No
  • Model
    Straight
  • Flat cable coupling
    No
  • Type of sealing
    Sealing ring
  • Operating temperature
    -30 ... 80 °C
  • For Ex-zone gas
    None
  • Nominal thread size metric/PG
    16
  • Wrench width
    19 mm
  • Material
    Plastic
  • Surface protection
    Untreated
  • Glass-fibre reinforced
    No
  • Shock resistant
    Yes
  • With locknut
    Yes
  • Multi seal area
    No
  • With strain relief
    No
  • Separable screw gland
    Yes
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None

Bulk packaging

A kind of package Sztuka
Quantity 10 pcs.
Weight (kg) 0,010
