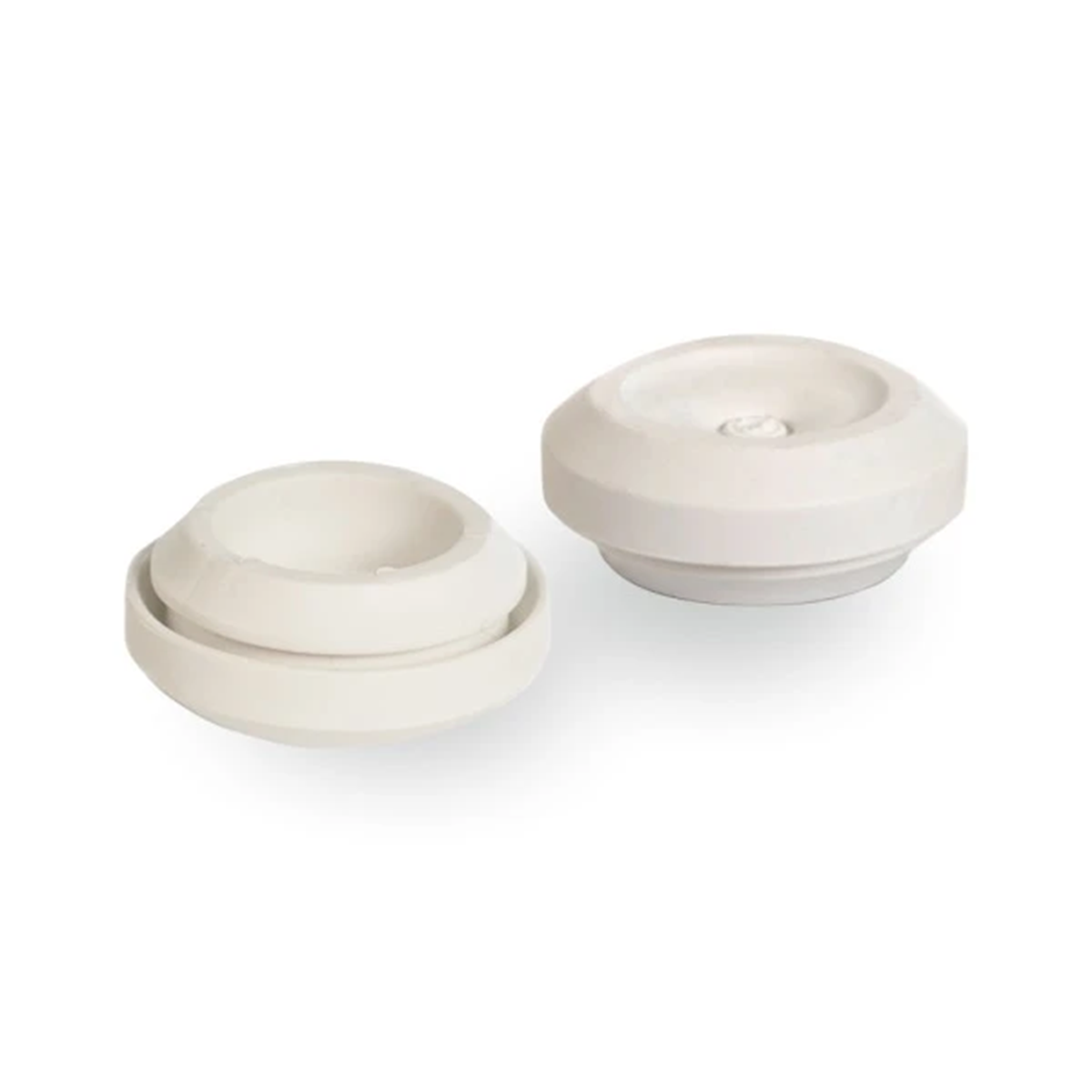

Bushing TPG-MG32-GR TPG-M32GR

local index:
RRR091BORP
Catalog No:
TPG-M32GR
EAN code:
5901924533917
Manufacturer: TRYTYT
Wall thickness [mm]: 0.5-4.5
Color: Gray
Maximum operating temperature [°C]: 125
Price:
3,47 €
gross / pkg.
(including VAT 23%)
0,69 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

TPG cable glands are a product that is simple in its construction, ensuring IP-67 degree of tightness, and at the same time, easy and quick to install. The grommet consists of a flange that adheres closely to the cable, does not restrict its movement, and at the same time ensures dust and water tightness. TPG cable glands are used in electrical devices, cable passages through sheet metal walls of housings and wherever there is a need to protect wires against abrasion, while ensuring the tightness of the device. They can also be used as plugs before future assembly. The cable through the cable gland can also come out of the device at a slight angle.

Technical data

  • Wall thickness [mm]
    0.5-4.5
  • Maximum operating temperature [°C]
    125
  • Level of security
    IP67
  • Cable diameter [mm]
    12-24
  • PKWIU
    22.19.73.0
  • Color
    Gray
  • Material
    Thermoplastic elastomer
  • Pieces in the package
    5
  • Minimum operating temperature [°C]
    -50
